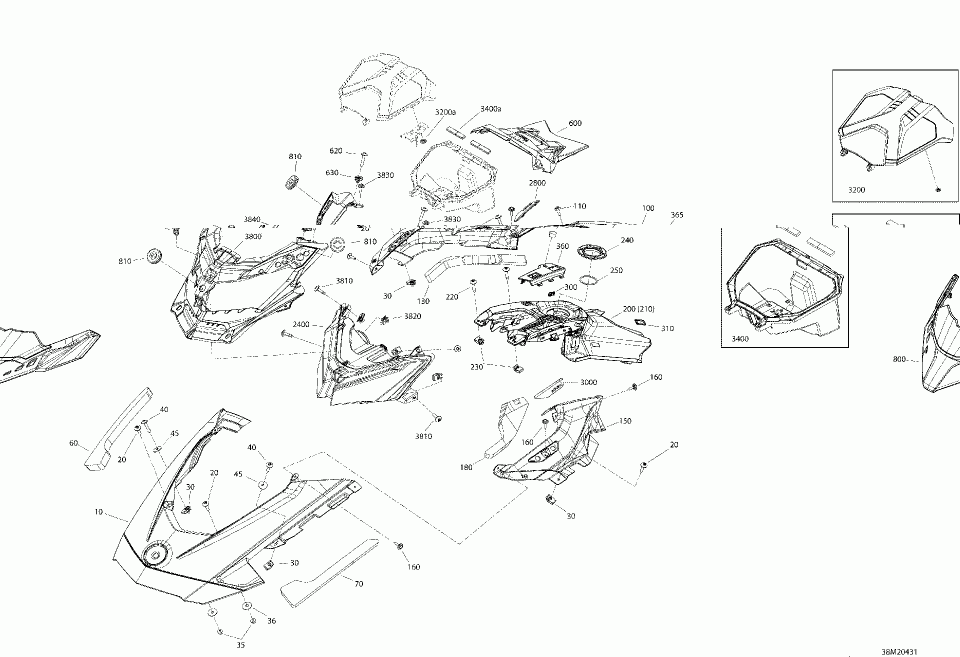

09- body - hood section - bright white - electric start

Ski-Doo (Bombardier) FREERIDE 146 850 E-TEC - Europe
Ski-Doo (Bombardier)
#oem кодцена
10
517307051
Labrador Blue, Front Hood.
100
517307052
Labrador Blue, RH Hood.
110
250000725
Screw M4 X 16.
130
517306001
RH Hood Foam.
150
517307053
Labrador Blue, LH Hood.
160
250000725
Screw M4 X 16.
180
517306002
LH Hood Foam.
20
250000528
Torx Screw M5 X 20.
200
517306898
Rear Console.
210
233251434
Flanged Elastic Nut M5.
220
250000587
Torx Screw M5 X 26.
230
250000958
Panel Nut M5 X 0.8.
240
517306602
Console Nut.
2400
517305752
Headlamp.
250
706002839
КОЛЬЦО
2800
517306049
RH Hood Plate.
30
250000958
Panel Nut M5 X 0.8.
300
517306587
RH Cap.
3000
517306050
LH Hood Plate.
310
517306588
LH Cap.
3200a
732610072
Push Nut.
3400a
517305157
Seal Joint.
35
233151414
Nut Flange Hex. M5.
36
250200040
Flat Washer.
360
517306583
LH Front Console.
365
572051500
Cap.
3800
517306376
Headlamp Fairing.
3810
250000528
Torx Screw M5 X 20.
3820
250000958
Panel Nut M5 X 0.8.
3830
250000725
Screw M4 X 16.
3840
293150230
Tuflok Plastic Rivet.
40
250000587
Torx Screw M5 X 26.
45
250200166
Washer.
60
517305763
RH Front Hood Foam.
600
517305782
Indicator Support.
620
250000587
Torx Screw M5 X 26.
630
250000958
Panel Nut M5 X 0.8.
70
517305764
LH Front Hood Foam.
800
517307054
Wind Deflector.
810
517303756
Grommet.
