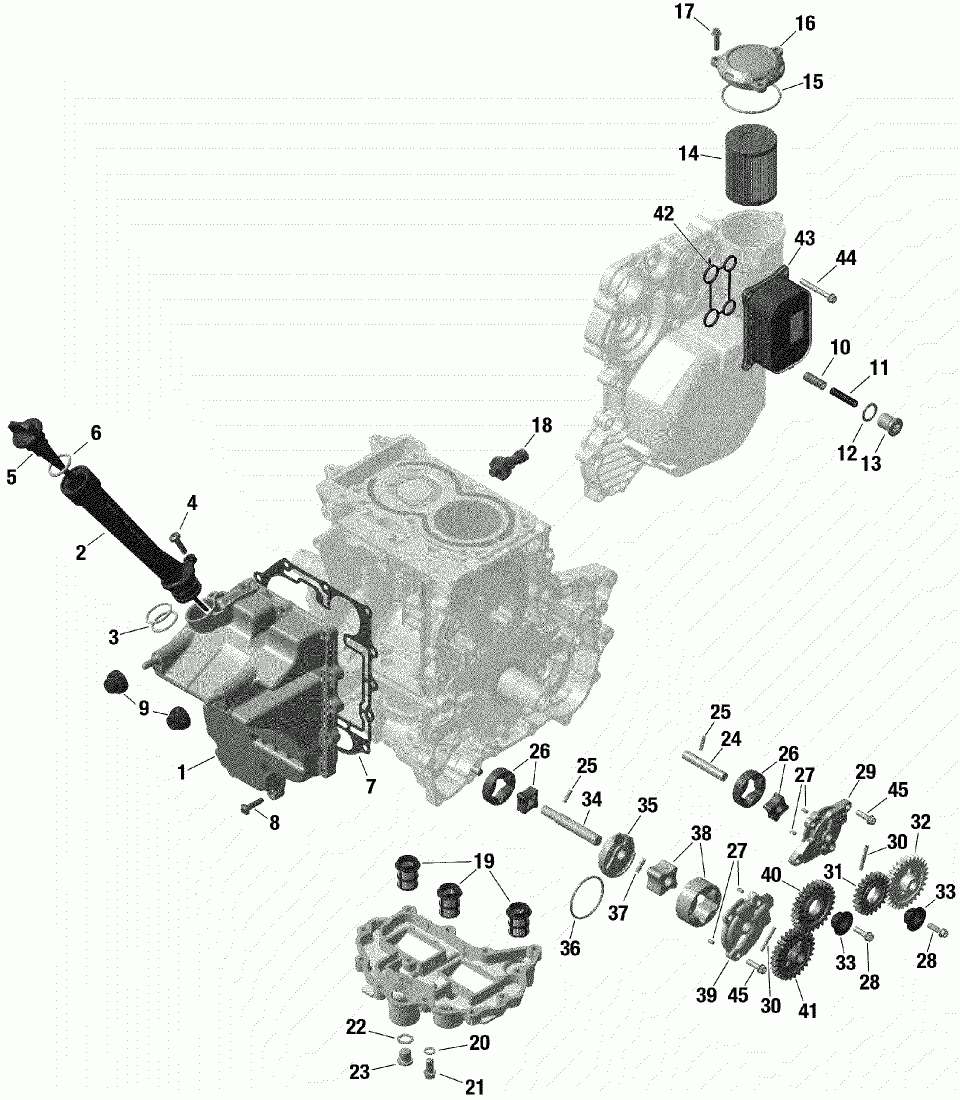

01- engine - lubrication

Ski-Doo (Bombardier) GRAND TOURING 600 ACE - Europe
Ski-Doo (Bombardier)
#oem кодцена
1
420956210
Oil Pump Cover.
10
420256518
Pressure Regulating Piston.
11
420239445
Spring.
12
420430623
Gasket Ring.
13
420441372
Plug Screw.
14
420956124
Oil Filter.
15
420230920
КОЛЬЦО
16
420612132
Oil Filter Cover.
17
420440207
Flanged Torx Screw M6 X 20.
18
420256915
Oil Pressure Switch.
19
420656680
Oil Sieve.
2
420656901
Oil Filler Tube.
20
420950141
Sealing Ring.
21
420440852
Flanged Torx Screw M8 X 16.
22
420250640
Copper Washer.
23
420241701
Plug Screw M12 x 1,5.
24
420820120
Oil Pump Shaft.
25
420232731
Needle Pin.
26
420256348
Oil Pump Rotor.
27
420929075
Needle Pin.
28
420440207
Flanged Torx Screw M6 X 20.
29
420911080
Oil Pump Cover.
3
420430440
КОЛЬЦО
30
420232431
Needle Pin.
31
420835400
Gear 22 Teeths.
32
420834882
Oil Pump Gear, 29 Teeth.
33
420947394
Spacer.
34
420837916
Oil Pump Shaft.
35
420611950
Oil Pump Cover.
36
420631830
КОЛЬЦО
37
420632221
Needle Pin.
38
420256836
Oil Pump Rotor.
39
420611981
Oil Pump Cover.
4
420441386
Flanged Torx Screw M6 X 20.
40
420835321
Idle Gear, 26 Teeth.
41
420834887
Oil Pump Gear, 28 Teeth.
42
420431870
Gasket.
43
420656698
Oil Water Heat Exchanger.
44
420440324
Flanged Torx Screw M6 X 45.
45
420440207
Flanged Torx Screw M6 X 20.
5
420856670
Oil Dipstick. Includes 5 to 6.
6
420631640
КОЛЬЦО
7
420431770
Gasket.
8
420841549
Flanged Torx Screw M6 X 25.
9
420860150
Rubber Grommet.
