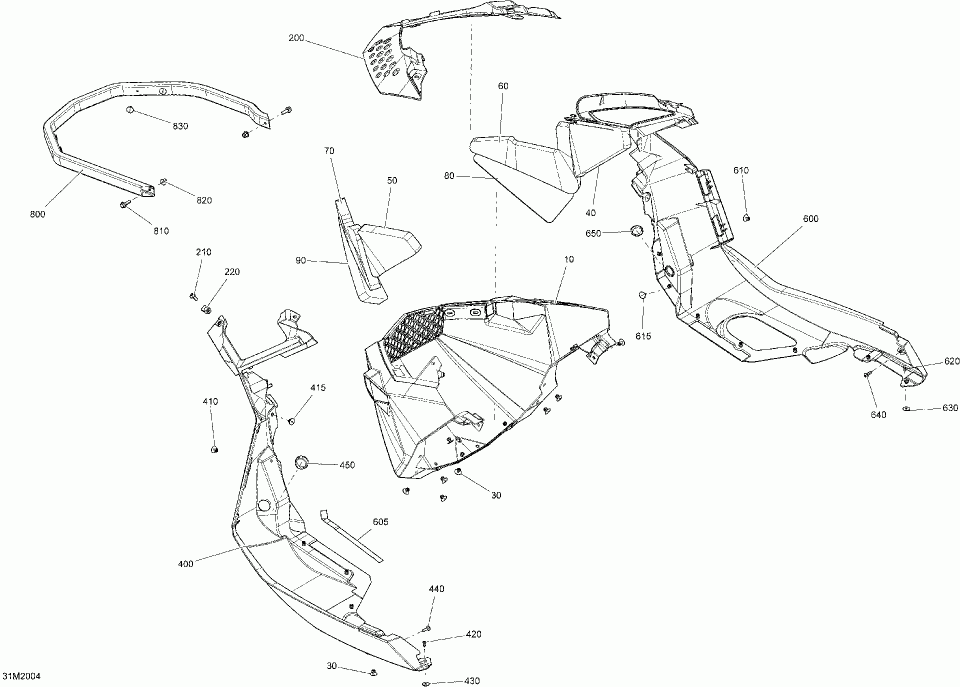

09- body - bottom pan

Ski-Doo (Bombardier) MXZ 600 CARB - North America
Ski-Doo (Bombardier)
#oem кодцена
10
502006971
Black, Front Bottom Pan.
200
502007068
Deep Black Bottom Pan Cap.
210
250000705
Torx Truss Screw M6 X 20.
220
250100198
Panel Nut , M6 X 1.0.
30
293150104
Pop Rivet 3/16
40
502007210
RH Foam Upper.
400
502006831
Black, RH Bottom Pan.
410
293150104
Pop Rivet 3/16
415
293150103
Pop Rivet 3/16
420
390402300
Pop Rivet 3/16
430
517124300
Washer.
440
250000720
Torx Screw K50 X 16.
450
414916600
Black Nylon Cap.
50
502007211
LH Foam Upper.
60
502007212
RH Middle Foam.
600
502007252
Black, LH Bottom Pan.
605
293250087
Gasket, Neoprene.
610
293150104
Pop Rivet 3/16
615
293150103
Pop Rivet 3/16
620
390402300
Pop Rivet 3/16
630
517124300
Washer.
640
250000720
Torx Screw K50 X 16.
650
414916600
Black Nylon Cap.
70
502007213
LH Middle Foam.
80
502007214
RH Lower Foam.
800
502007116
Black Front Bumper.
810
207662044
Hex. Flanged Screw M6 X 20.
820
233261416
Elastic Flanged Nut M6 X 1.0.
830
293150104
Pop Rivet 3/16
90
502007215
LH Lower Foam.
