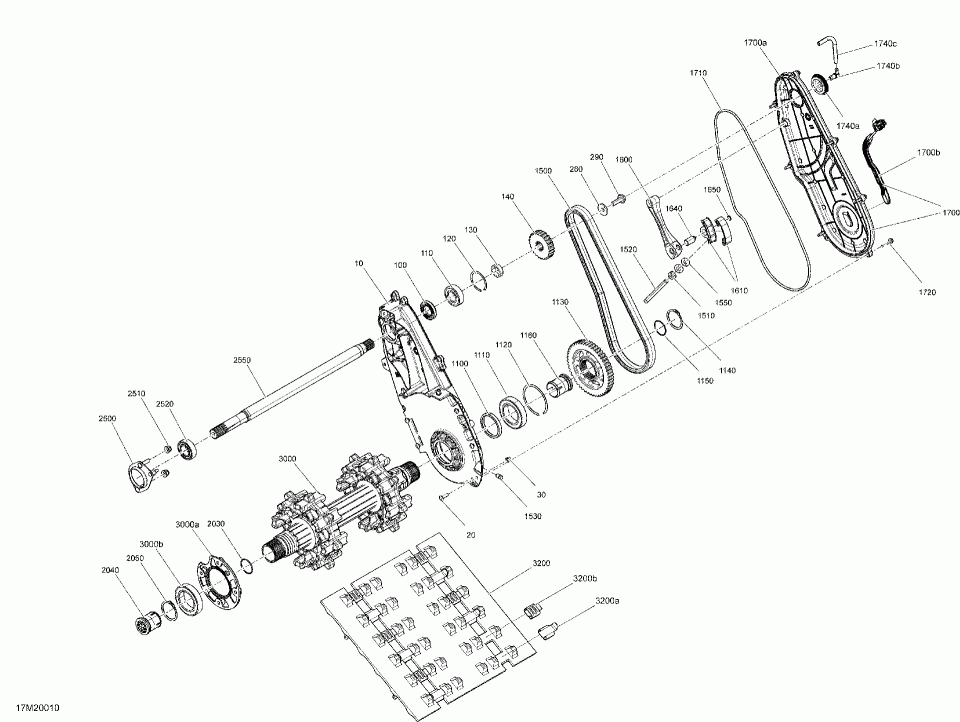

05- drive - system

Ski-Doo (Bombardier) RENEGADE 600 CARB - North America
Ski-Doo (Bombardier)
#oem кодцена
10
504153181
Chaincase.
100
293200168
Oil Seal.
10a
518325816
Plate. Not Shown.
110
293350115
Ball Bearing.
1100
293200159
Oil Seal.
1110
293350059
Ball Bearing.
1120
504152582
Circlip.
1130
504152593
Sprocket, 45 Teeth.
1140
504152572
Circlip.
1150
293300122
КОЛЬЦО
1160
504152619
Magnetic Cap.
120
504152576
Circlip.
130
504152628
Shim.
140
504091000
Sprocket 23 Teeth.
1500
504152629
Drive Chain, 104 Links.
1510
232006414
Hex. Nut M10 X 1.5.
1520
504152602
Adjustment Screw.
1530
504152636
Magnetic Plug 1/8 - 27 NPTF.
1550
250200100
Bonded Washer.
1600
504153429
Tensioner chain.
1610
504152739
Slider Chain.
1640
504152841
Tensioner Axle.
1650
504152282
Circlip.
1700a
504153151
Casting Cover.
1700b
504152896
Rotation Sensor.
1710
293300130
Tight Seal.
1720
250001013
Flanged Hex. Screw M6 X 30.
1740a
504152860
Cap.
1740b
414580700
Male Connector.
1740c
415080200
Hose, Polyurethane, iD 5.7mm (10M Roll).
2030
293300122
КОЛЬЦО
2040
504152619
Magnetic Cap.
2050
504152572
Circlip.
2500
504153185
Bearing Housing.
2510
233281414
Hex. Flanged Elastic Nut M8.
2520
293350074
Ball Bearing.
2550
504153000
Countershaft.
280
504152784
Spring Washer M10.
290
207503046
Hex. Flanged Screw M10 X 30, Scotch Grip.
3000a
504153426
Retaining Ring.
3000b
293350059
Ball Bearing.
3200a
415129528
Track Guide.
3200b
504152651
Cleat.
