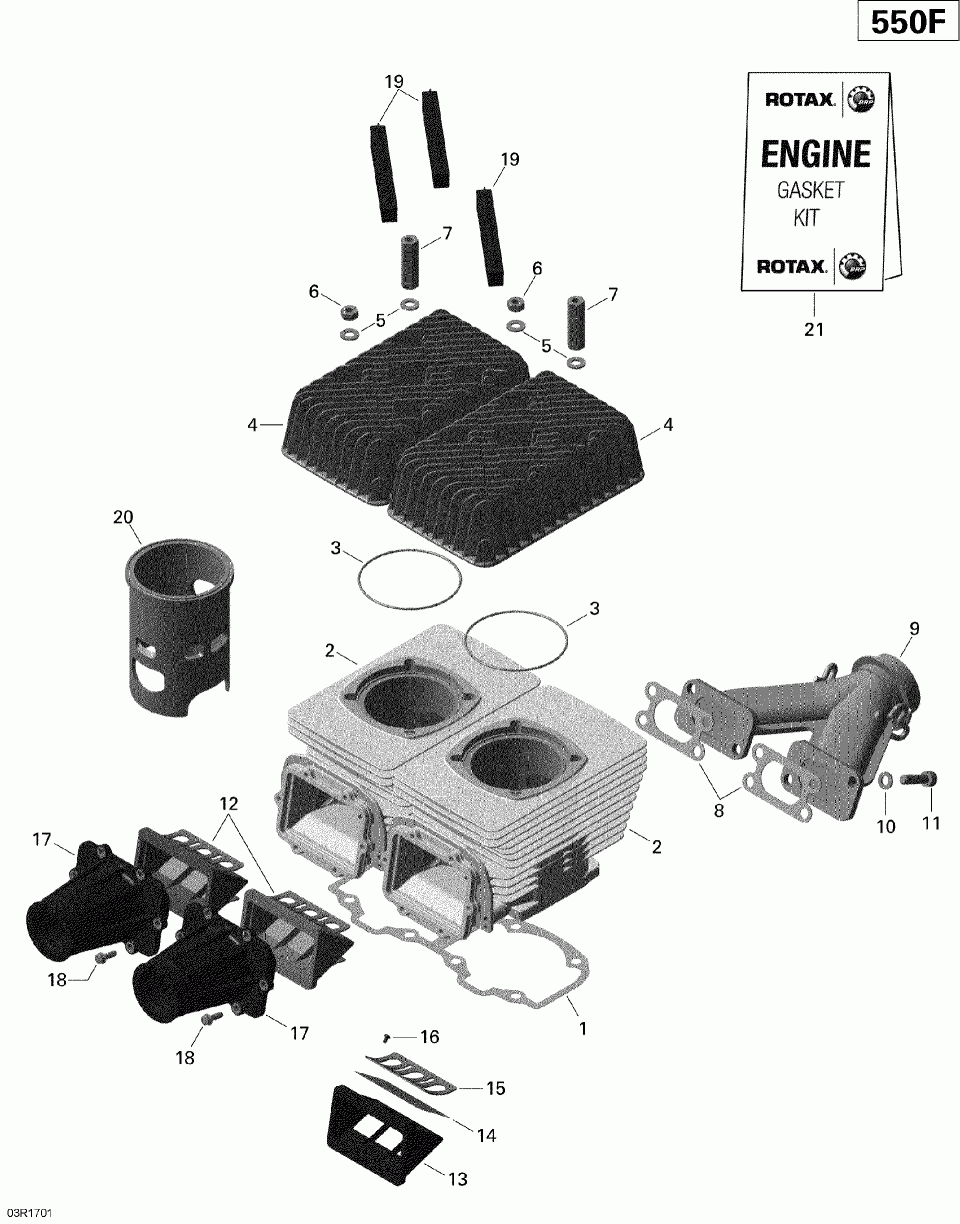

01- engine - cylinder, exhaust manifold and reed valve - 550f
01- engine - cylinder, exhaust manifold and reed valve - 550f

01- engine - cylinder, exhaust manifold and reed valve - 550f

Ski-Doo (Bombardier) SKANDIC WT 550F - North America

01- engine - cylinder, exhaust manifold and reed valve - 550f

#

oem код

название

цена

1

Gasket 0.3.

Gasket 0.3.

1

Gasket 0.4.

Gasket 0.4.

1

Gasket 0.6.

Gasket 0.6.

10

Lock Washer 8 mm.

Lock Washer 8 mm.

11

Socket Head Screw M8 X 30.

Socket Head Screw M8 X 30.

14

Reed Pedal.

Reed Pedal.

15

Reed Pedal Stop.

Reed Pedal Stop.

16

Phillips Screw M3 X 5.

Phillips Screw M3 X 5.

17

Carburetor Socket.

Carburetor Socket.

18

Tapping Screw M5 X 16.

Tapping Screw M5 X 16.

19

Noise Damper.

Noise Damper.

2

Cylinder With Sleeve.

Cylinder With Sleeve.

21

Gasket Set, Engine.

Gasket Set, Engine.

3

КОЛЬЦО

КОЛЬЦО

4

Head Cylinder.

Head Cylinder.

4

REBUILT - Cylinder With Sleeve.

REBUILT - Cylinder With Sleeve.

6

Hex. Nut M8.

Hex. Nut M8.

7

Distance Nut M8 X 47.

Distance Nut M8 X 47.

8

Gasket 1.0 mm.

Gasket 1.0 mm.

9

Exhaust Manifold.

Exhaust Manifold.
