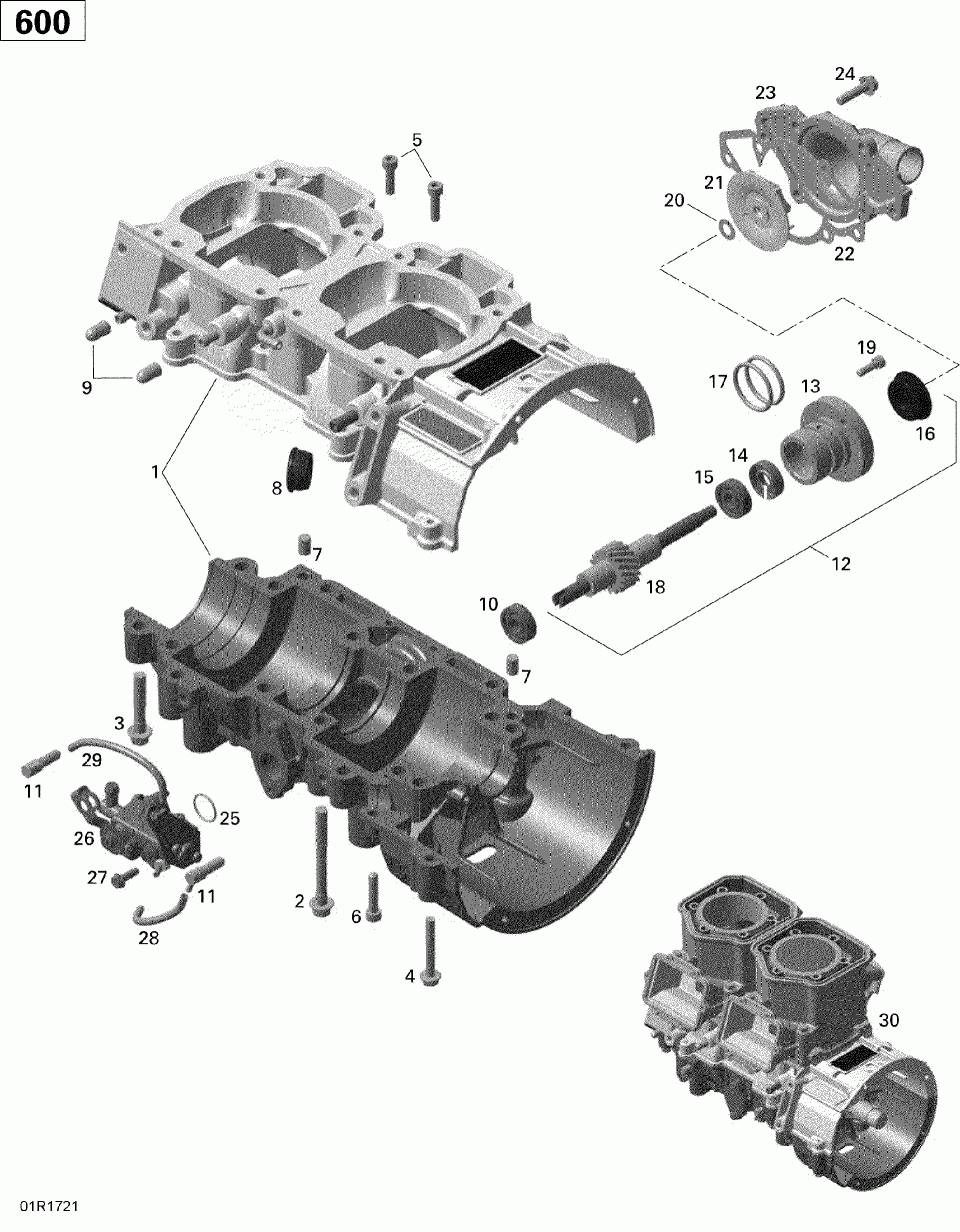

01- engine - crankcase, water pump and oil pump - 600 carb

Ski-Doo (Bombardier) SUMMIT 600 CARB - North America
Ski-Doo (Bombardier)
#oem кодцена
10
420232100
Ball Bearing.
11
420956510
Check Valve.
14
420230195
Oil Seal.
15
420232100
Ball Bearing.
16
420650370
Rotary Seal.
17
420950890
КОЛЬЦО
19
420840511
Socket Head Screw M5 X 16.
2
420640836
Hex. Collar Screw M8 X 75.
20
420227945
Washer.
21
420222505
Water Impeller.
22
420931810
Gasket.
23
420922630
Water Pump Housing.
24
420240034
Hex. Screw M6 X 25.
25
293300041
КОЛЬЦО
27
420941925
Tapping Screw M5 X 16.
28
414413800
Oil Hose.
29
414413800
Oil Hose.
3
420640432
Hex. Collar Screw M8 X 45.
30
421000660
REBUILD - Cylinder - Short Block 593 XP.
30
420059312
Short Block 593.
4
420640311
Hex. Collar Screw M6 X 45.
5
420840401
Socket Head Screw M6 X 22.
6
205063044
Socket Head Screw M6 X 30.
7
420632010
Center Pin 8 X 12.
8
420860965
Cable Grommet.
9
420960770
Cap.
