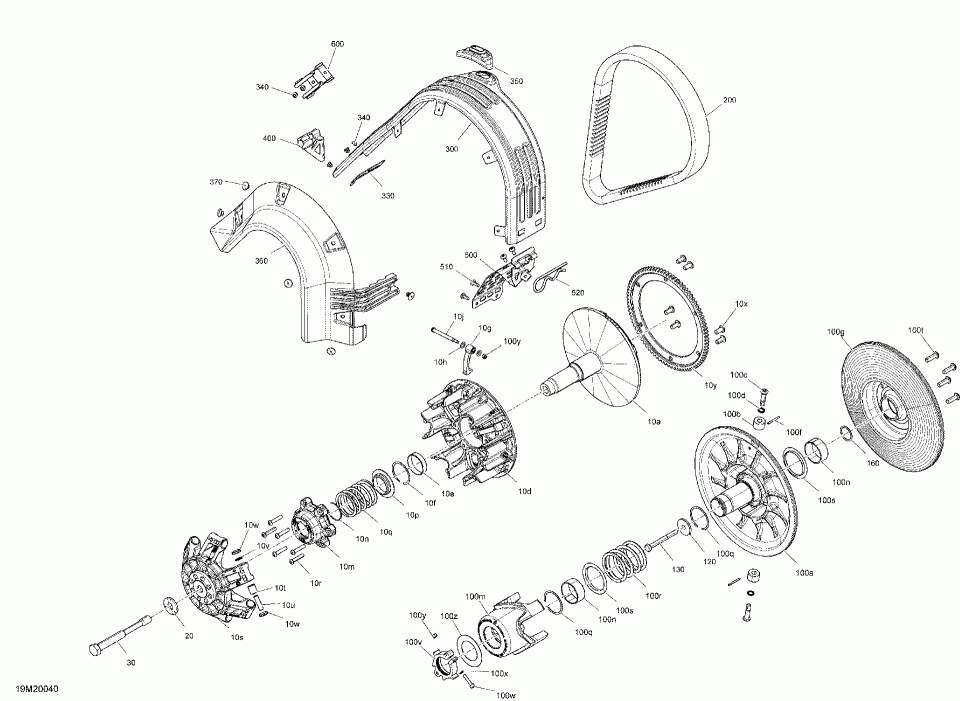

05- pulley - system

Ski-Doo (Bombardier) TUNDRA 550F - North America
Ski-Doo (Bombardier)
#oem кодцена
100b
417127016
Roller.
100c
417127294
Pivot Stud.
100d
250200009
Lock Washer 8 mm.
100f
250400063
Spring Pin M3 X 30.
100n
417127318
Bushing ID 41mm OD 45mm X 19mm L.
100q
293370049
Circlip.
100r
417127061
Spring.
100s
417127116
Swivel Abutment.
100t
250000757
Screw-Torx Button Head M8 X 25 S.Gr.
100w
250000981
Socket Screw M5 X 25.
100x
234051410
Flat Washer M5.
100y
232551414
Elastic Stop Nut M5.
100z
417127155
Washer.
10e
417222758
Bushing.
10f
293370037
Circlip.
10g
417223604
Ramp 700.
10h
417223255
Thrust Washer.
10j
417223694
Ramp Axle.
10n
293370065
Circlip.
10p
417223752
Seat Spring.
10q
417223748
Spring Clutch.
10r
250000580
Torx Screw M6 X 30.
10t
417223767
Roller.
10u
417223257
Roller Axle.
10v
293300185
КОЛЬЦО
10w
417223919
Slider Shoe.
10x
250000706
Torx Button Head Screw M8 X 16.
10y
417223476
Crown Gear Launch.
120
517302322
Strength Washer.
130
207287544
Hex. Cap Screw M8 X 75.
160
417300265
Spacer.
20
250200144
Conical Spring Washer M14.
200
417300127
Drive Belt.
30
417300432
Pulley Drive Bolt.
300
417300382
Belt Guard.
330
417300380
Reinforcement.
340
390909200
Avex Rivet.
350
417300381
Guide.
360
417300356
Side Protector.
370
293150103
Pop Rivet 3/16
400
417300374
Front Belt Guard Bracket.
500
417300448
Belt Guard Bracket.
510
250000742
Torx Screw M5 X 14.
520
114045200
Hair Pin.
600
517281905
Bracket.
