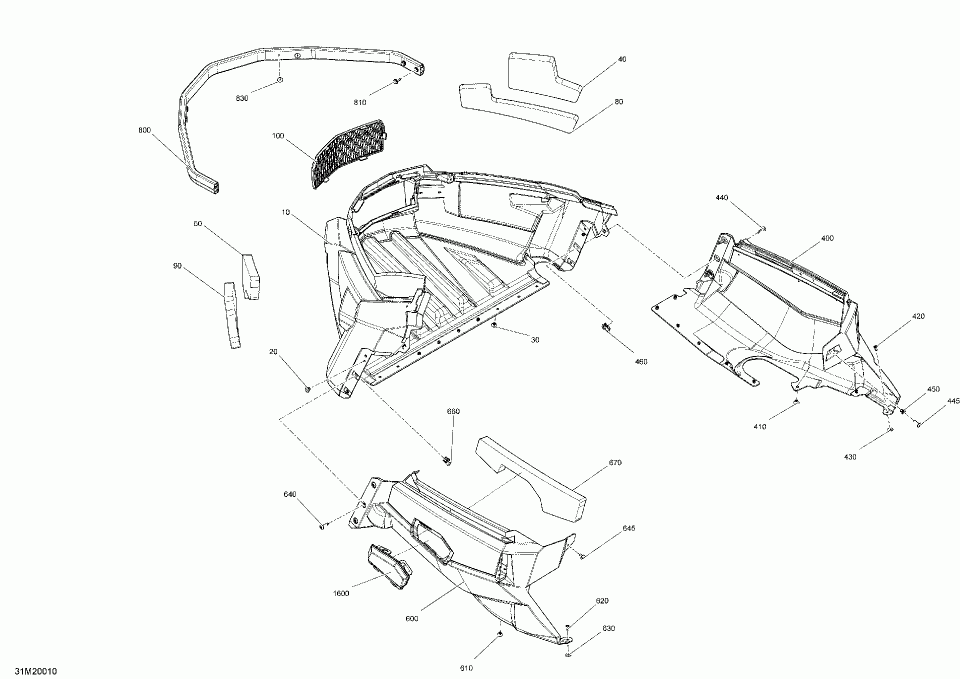

09- body - bottom pan

Ski-Doo (Bombardier) TUNDRA 550F - North America
Ski-Doo (Bombardier)
#oem кодцена
10
502007361
Black, Bottom Pan.
100
502006887
Botton Pan Grill.
1600
502006970
Black Bottom Pan Door.
20
293150104
Pop Rivet 3/16
30
293150104
Pop Rivet 3/16
40
502007204
RH Upper Bottom Pan Foam.
400
502006965
Black RH Bottom Pan.
410
293150104
Pop Rivet 3/16
420
390402300
Pop Rivet 3/16
430
517124300
Washer.
440
250000618
Torx Screw M6 X 25.
445
250000705
Torx Truss Screw M6 X 20.
450
293450275
Insert.
460
250000957
Extruded Panel Nut M6.
50
502007205
LH Upper Bottom Pan Foam.
600
502006966
Black LH Bottom Pan.
610
293150104
Pop Rivet 3/16
620
390402300
Pop Rivet 3/16
630
517124300
Washer.
640
250000618
Torx Screw M6 X 25.
645
250000767
Torx Truss Screw M6 X 12.
660
250000957
Extruded Panel Nut M6.
670
502007208
LH Bottom Pan Foam.
80
502007206
RH Lower Bottom Pan Foam.
800
502007121
Black Front Bumper.
810
207661644
Hex. Flanged Screw M6 X 16.
830
293150104
Pop Rivet 3/16
90
502007207
LH Lower Bottom Pan Foam.
