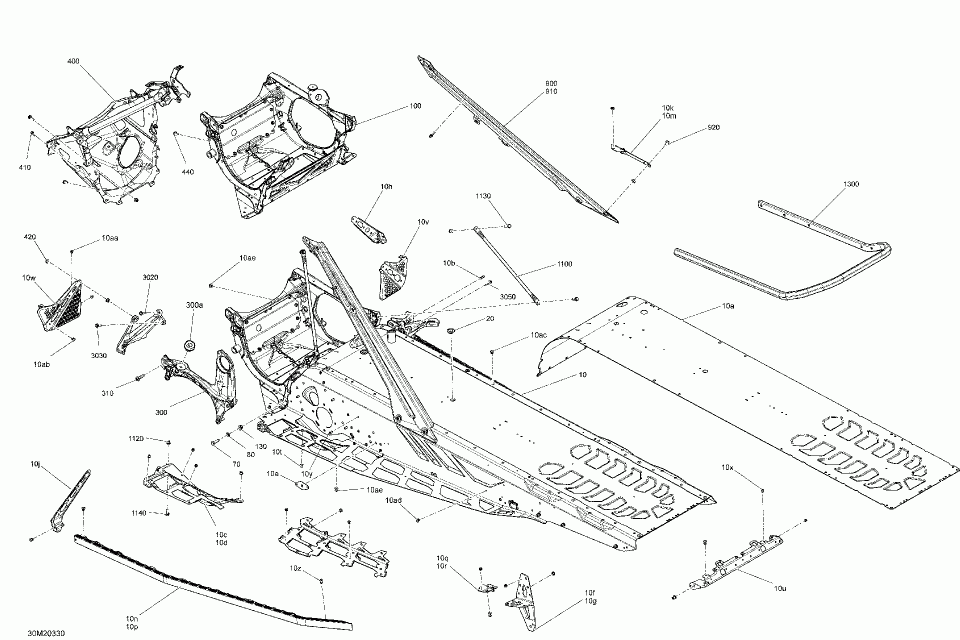

09- frame - system - xrs

Ski-Doo (Bombardier) BACKCOUNTRY 850 E-TEC - Europe
Ski-Doo (Bombardier)
#oem кодцена
10a
415130287
Radiator Tunnel. Frame 146 Inch.
10a
415130288
Radiator Tunnel. Frame 154 Inch.
10aa
293150119
Hemlock Rivet, 6.5 mm.
10ab
293150174
Hemlock Rivet, 6.4 mm.
10ac
293150147
Hemlock Rivet.
10ad
293150174
Hemlock Rivet, 6.4 mm.
10ae
293150147
Hemlock Rivet.
10b
250300027
Clinch Stud M6 X 20.
10c
518330520
RH Footrest Reinforcement.
10d
518331524
Deep Black, LH Footrest Reinforcement.
10e
518329619
RH Footrest.
10f
518329620
LH Footrest.
10g
518330682
LH Rear Suspension Support.
10h
518330683
RH Rear Suspension Support.
10j
518331253
Stirrup Reinforcement.
10k
518331560
Deep Black, LH Chasssis Reinforcement.
10m
518330299
LH Member Fixation Plate.
10n
518330300
RH Member Fixation Plate.
10p
518329023
RH Roller.
10q
518329024
LH Roller.
10r
415130287
Radiator Tunnel.
10t
518328990
Rear Cap.
10u
518328460
RH Footrest.
10v
518331556
LH Foot Protector.
10w
390909100
Avex Rivet.
10x
293150163
Rivet Hucklok.
10y
390909200
Avex Rivet.
10z
293150096
Hemlock Rivet, 6.5 mm.
1100
518329974
Upper Colomn Support.
1120
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
1130
207662544
Hex. Flanged Screw M6 X 25.
1140
207662044
Hex. Flanged Screw M6 X 20.
130
233281414
Hex. Flanged Elastic Nut M8.
1300
518329553
Rear Bumper 146. Frame 146 Inch.
1300
518328501
Rear Bumper. Frame 154 Inch. Includes 1300 to 1300a.
20
293730052
Black, Plug.
300a
512060295
Rubber Mount.
3020
250000793
Hex. Flanged Screw M6 X 25.
3030
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
3050
210262550
Hex. Flanged Forming Screw M6 X 25.
310
250001060
Screw-Pan HD.Torx M8X30.
400
518330573
S Module.
420
207663544
Hex. Flanged Screw M6 X 35.
440
207661646
Hex. Flange Screw M6 X 16.
70
250000942
Hex Screw M8 X 30.
80
234081410
Flat Washer 8 mm.
910
518331056
White, RH Rear Diag Cross Member.
920
250000887
Pan Head Torx Screw M8 X 12.
