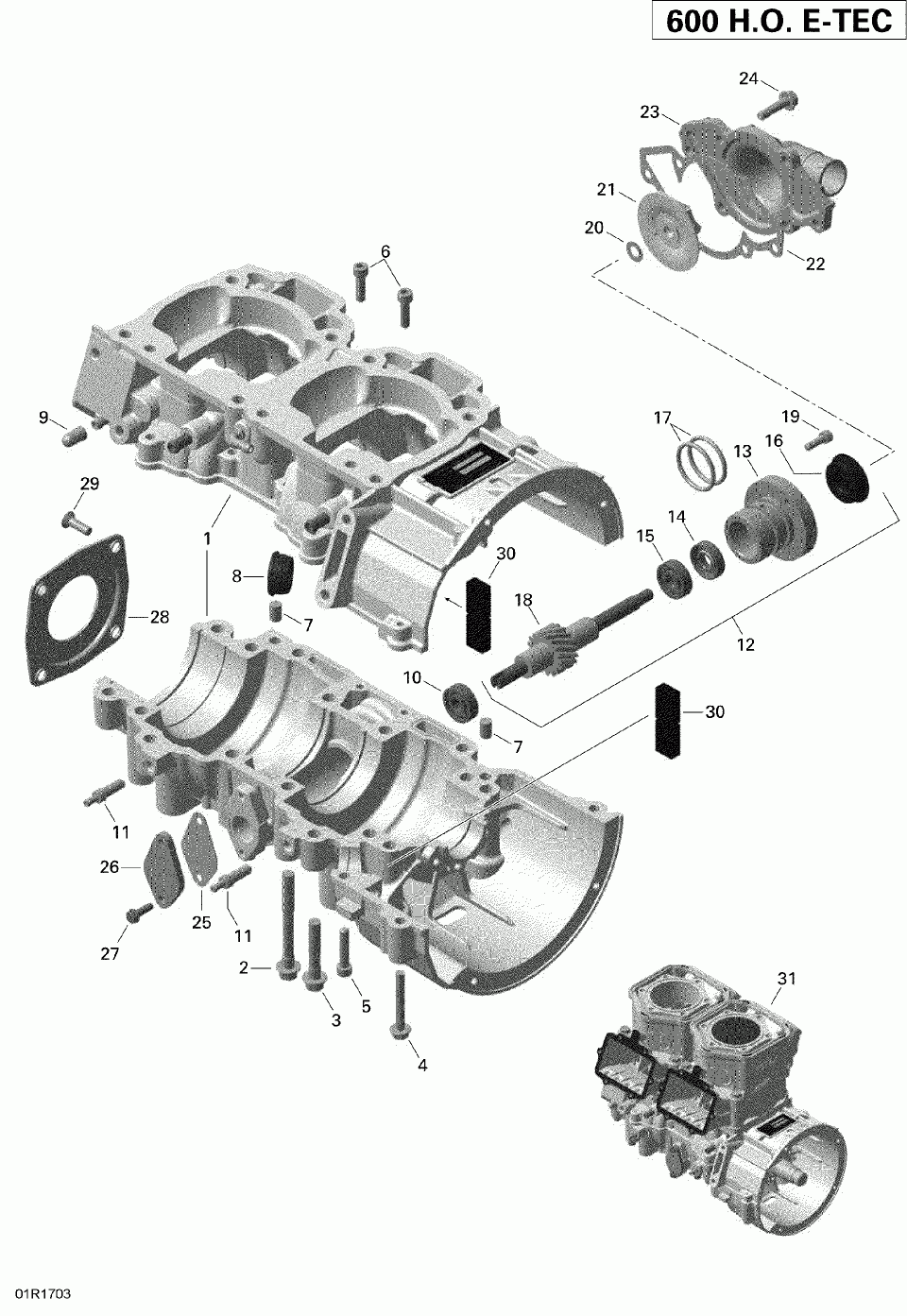

01- engine - crankcase and water pump - 600ho e-tec

Ski-Doo (Bombardier) TUNDRA 600HO E-TEC - North America
Ski-Doo (Bombardier)
#oem кодцена
10
420232100
Ball Bearing.
11
420956070
Check Valve.
14
420230195
Oil Seal.
15
420232100
Ball Bearing.
16
420650370
Rotary Seal.
17
420950890
КОЛЬЦО
19
420840511
Socket Head Screw M5 X 16.
2
420640836
Hex. Collar Screw M8 X 75.
20
420227945
Washer.
21
420222505
Water Impeller.
22
420931810
Gasket.
23
420922630
Water Pump Housing.
24
420240034
Hex. Screw M6 X 25.
25
420931566
Gasket.
26
420810827
Cover Plate.
27
420941925
Tapping Screw M5 X 16.
28
420812422
Cover.
29
420941436
Screw M6 X 20.
3
420640432
Hex. Collar Screw M8 X 45.
31
421000662
REBUILD - Cylinder - Short Block 593 ETEC.
31
420059354
Short Block 593 HO E-TEC.
4
420640311
Hex. Collar Screw M6 X 45.
5
205063044
Socket Head Screw M6 X 30.
6
420840401
Socket Head Screw M6 X 22.
7
420632010
Center Pin 8 X 12.
8
420660890
Cable Grommet.
9
420960770
Cap.
