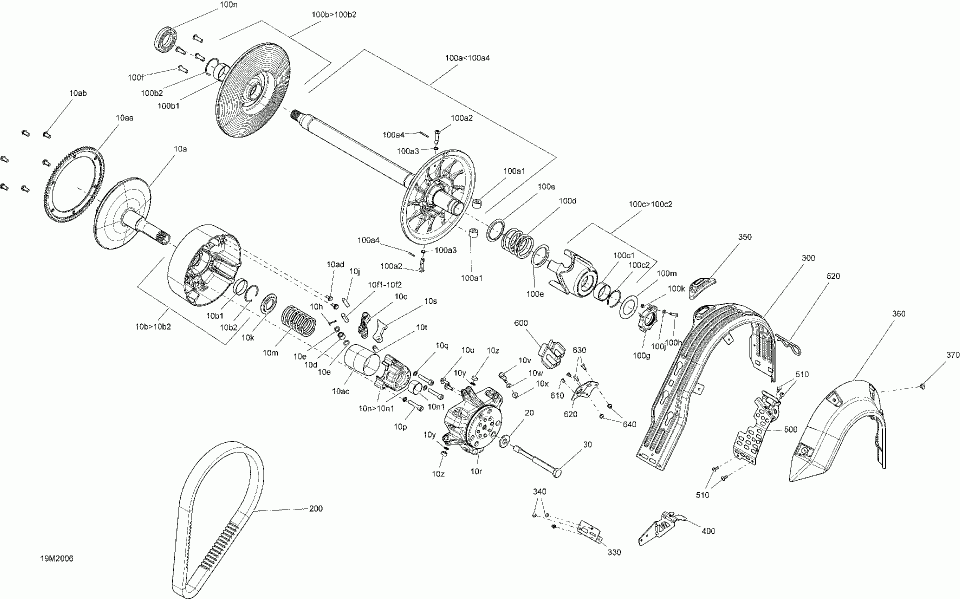

05- pulley - system

Ski-Doo (Bombardier) TUNDRA 600HO E-TEC - North America

05- pulley - system

#

oem код

название

цена

100a1

Roller.

Roller.

100a2

Pivot Stud.

Pivot Stud.

100a3

Lock Washer 8 mm.

Lock Washer 8 mm.

100a4

Spring Pin M3 X 30.

Spring Pin M3 X 30.

100b1

Bushing ID 41mm OD 45mm X 19mm L.

Bushing ID 41mm OD 45mm X 19mm L.

100b2

Circlip.

Circlip.

100c1

Bushing ID 41mm OD 45mm X 19mm L.

Bushing ID 41mm OD 45mm X 19mm L.

100c2

Circlip.

Circlip.

100d

Black Spring.

Black Spring.

100e

Swivel Abutment.

Swivel Abutment.

100f

Screw-Torx Button Head M8 X 25 S.Gr.

Screw-Torx Button Head M8 X 25 S.Gr.

100h

Socket Screw M5 X 25.

Socket Screw M5 X 25.

100j

Flat Washer M5.

Flat Washer M5.

100k

Elastic Stop Nut M5.

Elastic Stop Nut M5.

100m

Washer.

Washer.

100n

Ball Bearing.

Ball Bearing.

10aa

Ring Gear.

Ring Gear.

10ab

Hex. Flange Screw M8 X 1.25 X 16.

Hex. Flange Screw M8 X 1.25 X 16.

10ac

Guard.

Guard.

10ad

Flanged Hex. Screw M6 X 12, Scotch Grip.

Flanged Hex. Screw M6 X 12, Scotch Grip.

10b1

Bushing.

Bushing.

10b2

Circlip.

Circlip.

10c

РЫЧАГ

РЫЧАГ

10d

Roller.

Roller.

10e

Stopper Washer.

Stopper Washer.

10f1

Threaded Pin.

Threaded Pin.

10f2

Socket Set Screw M6 X 1.0 X 16.

Socket Set Screw M6 X 1.0 X 16.

10h

Cotter Pin.

Cotter Pin.

10j

Lever Axle.

Lever Axle.

10k

Spring Seat.

Spring Seat.

10m

Spring (Red/Orange).

Spring (Red/Orange).

10n1

Bushing.

Bushing.

10p

Socket Head Screw M8 X 1.25 X 40.

Socket Head Screw M8 X 1.25 X 40.

10q

Lock Washer 8 mm.

Lock Washer 8 mm.

10s

Ramp 417.

Ramp 417.

10t

Spring Pin M10 X 22.

Spring Pin M10 X 22.

10u

Flanged Hex. Screw M6 X 18, Scotch Grip.

Flanged Hex. Screw M6 X 18, Scotch Grip.

10v

Calibration Screw.

Calibration Screw.

10w

Washer.

Washer.

10x

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

10y

КОЛЬЦО

КОЛЬЦО

10z

Slider Shoe.

Slider Shoe.

20

Conical Spring Washer M14.

Conical Spring Washer M14.

200

Drive Belt.

Drive Belt.

30

Drive Pulley Bolt.

Drive Pulley Bolt.

300

Belt Guard.

Belt Guard.

330

Reinforcement.

Reinforcement.

340

Avex Rivet.

Avex Rivet.

350

Guide.

Guide.

360

Side Protector.

Side Protector.

370

Pop Rivet 3/16

Pop Rivet 3/16

400

Front Belt Guard Bracket.

Front Belt Guard Bracket.

500

Belt Guard Bracket.

Belt Guard Bracket.

510

Torx Screw M5 X 14.

Torx Screw M5 X 14.

520

Hair Pin.

Hair Pin.

600

Bracket.

Bracket.

610

Avex Rivet.

Avex Rivet.

620

Plate.

Plate.

630

Hex. Screw M5 X 14.

Hex. Screw M5 X 14.

640

Flanged Elastic Nut M5.

Flanged Elastic Nut M5.
