  6. 05- pulley - system

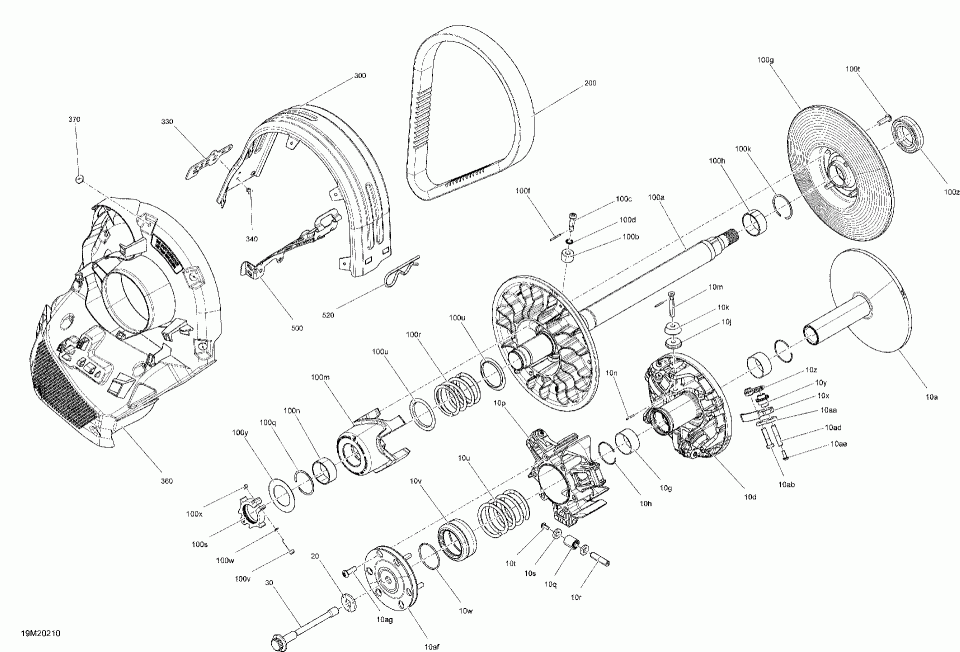

05- pulley - system

Ski-Doo (Bombardier) RENEGADE 600R E-TEC - Enduro - North America
Ski-Doo (Bombardier)
#oem кодцена
100b
417127016
Roller.
100c
417127294
Pivot Stud.
100d
250200009
Lock Washer 8 mm.
100f
250400070
Spring Pin.
100h
417127318
Bushing ID 41mm OD 45mm X 19mm L.
100k
293370049
Circlip.
100n
417127318
Bushing ID 41mm OD 45mm X 19mm L.
100q
293370049
Circlip.
100r
417127137
Green Spring.
100t
250000757
Hex. Button Head Screw M8 X 25.
100u
417127116
Swivel Abutment.
100v
250000981
Socket Screw M5 X 25.
100w
234051410
Flat Washer M5.
100x
232551414
Elastic Stop Nut M5.
100y
417127155
Washer.
100z
504152574
Ball Bearing.
10aa
417224114
Lever Left.
10ab
417224221
Pivot 33mm.
10ad
417223631
Axle - 8mm.
10ae
250000763
Torx-Truss M/S M5 X 14 S.Grip.
10af
417223994
Cushion-Drive.
10g
293250389
Bushing.
10h
293370117
Circlip.
10j
417224153
Back Torque Roller.
10k
417224154
Torque Roller.
10m
417224191
Pin.
10n
250400074
Spring Pin 3/32
10r
417224204
Axle - 10mm.
10s
417224009
Washer-Thrust.
10t
250000763
Torx-Truss M/S M5 X 14 S.Grip.
10u
417224013
Clutch Spring.
10v
417224003
Seat Spring.
10w
293370116
Circlip.
10x
417224626
Ramp Pulley 901.
10y
417224113
Cam Molded.
10z
417224086
Lever-Right.
20
250200144
Conical Spring Washer M14.
200
417300551
Strap.
30
417300522
Pulley Drive Bolt M14 X 144.
300
417300479
Belt Guard.
330
417300561
Front, Retaining Hook.
340
390909200
Avex Rivet.
360
417300553
CVT Duct Cooling.
370
293150103
Pop Rivet 3/16
500
417300579
Rear Guard Support.
520
114045200
Hair Pin.
