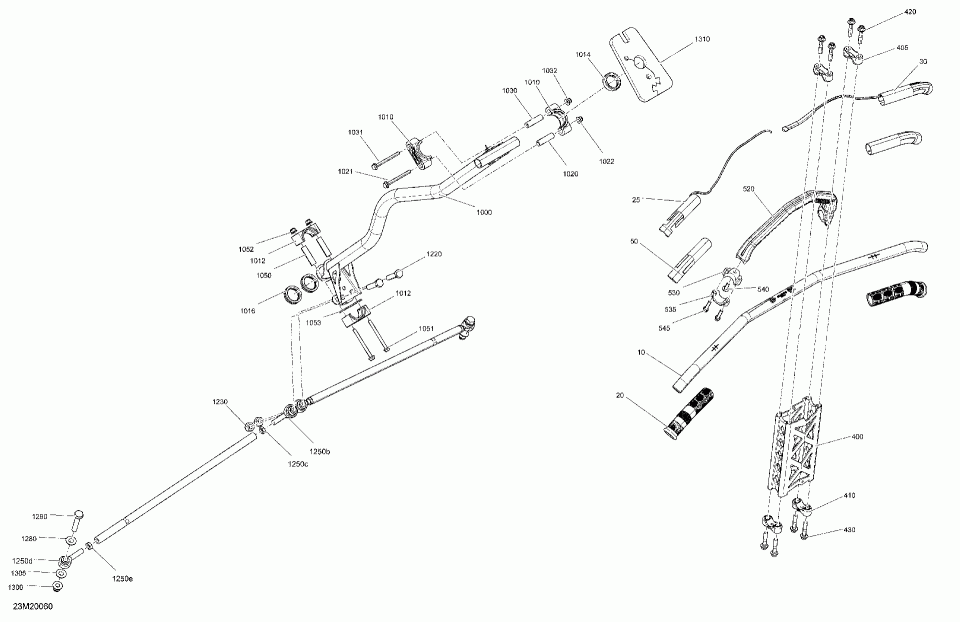

06- steering - system

Ski-Doo (Bombardier) TUNDRA 600 ACE - North America

06- steering - system

#

oem код

название

цена

10

Handle Bar, Non Dyed Clear Anodizing.

Handle Bar, Non Dyed Clear Anodizing.

1000

Steering Column.

Steering Column.

1010

Upper Half-Housing.

Upper Half-Housing.

1012

Lower Half-Housing.

Lower Half-Housing.

1014

Upper Anti-Vibration Gasket.

Upper Anti-Vibration Gasket.

1016

Lower Vibration Ring.

Lower Vibration Ring.

1020

Housing Bushing.

Housing Bushing.

1021

Hex. Flanged Screw M6 X 70.

Hex. Flanged Screw M6 X 70.

1022

Elastic Flanged Nut M6 X 1.0.

Elastic Flanged Nut M6 X 1.0.

1030

Housing Bushing.

Housing Bushing.

1031

Hex. Flanged Screw M6 X 70.

Hex. Flanged Screw M6 X 70.

1032

Elastic Flanged Nut M6 X 1.0.

Elastic Flanged Nut M6 X 1.0.

1050

Lower Housing Bushing.

Lower Housing Bushing.

1051

Hex. Flanged Screw M8 x 65.

Hex. Flanged Screw M8 x 65.

1052

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

1053

Stopper Plate.

Stopper Plate.

1220

Hex. Screw M10 X 1.5 X 40.

Hex. Screw M10 X 1.5 X 40.

1230

Elastic Locking Nut M10.

Elastic Locking Nut M10.

1250b

LH Thread Ball Joint.

LH Thread Ball Joint.

1250c

LH Threaded Hex. Jam Nut M10.

LH Threaded Hex. Jam Nut M10.

1250d

RH Threaded Ball Joint.

RH Threaded Ball Joint.

1250e

RH Threaded Hex. Jam Nut M10.

RH Threaded Hex. Jam Nut M10.

1280

Washer.

Washer.

1290

Hex. Screw M10 X 45.

Hex. Screw M10 X 45.

1300

Elastic Locking Nut M10.

Elastic Locking Nut M10.

1305

Washer.

Washer.

1310

Bushing.

Bushing.

20

Grip 148mm.

Grip 148mm.

25

Heating Element 32 Watt 2 Wires.

Heating Element 32 Watt 2 Wires.

30

RH Heating Element 32 Watt.

RH Heating Element 32 Watt.

400

Extension Kit ( 205mm ).

Extension Kit ( 205mm ).

405

Support.

Support.

410

Support.

Support.

420

Hexagonal Flange Screw M8 X 1.25 x 60.

Hexagonal Flange Screw M8 X 1.25 x 60.

430

Hexagonal Flange Screw M8 X 1.25 x 60.

Hexagonal Flange Screw M8 X 1.25 x 60.

50

Insulant.

Insulant.

500

Steering Pad, Deep Black. Not Shown.

Steering Pad, Deep Black. Not Shown.

520

Moulding Strap.

Moulding Strap.

530

Black Support Plate.

Black Support Plate.

535

Clamps Kit.

Clamps Kit.

540

Torx Screw M6 X 1.0 X 18, Scotch Grip.

Torx Screw M6 X 1.0 X 18, Scotch Grip.

545

Hex Flanged Screw M6 X 25.

Hex Flanged Screw M6 X 25.
