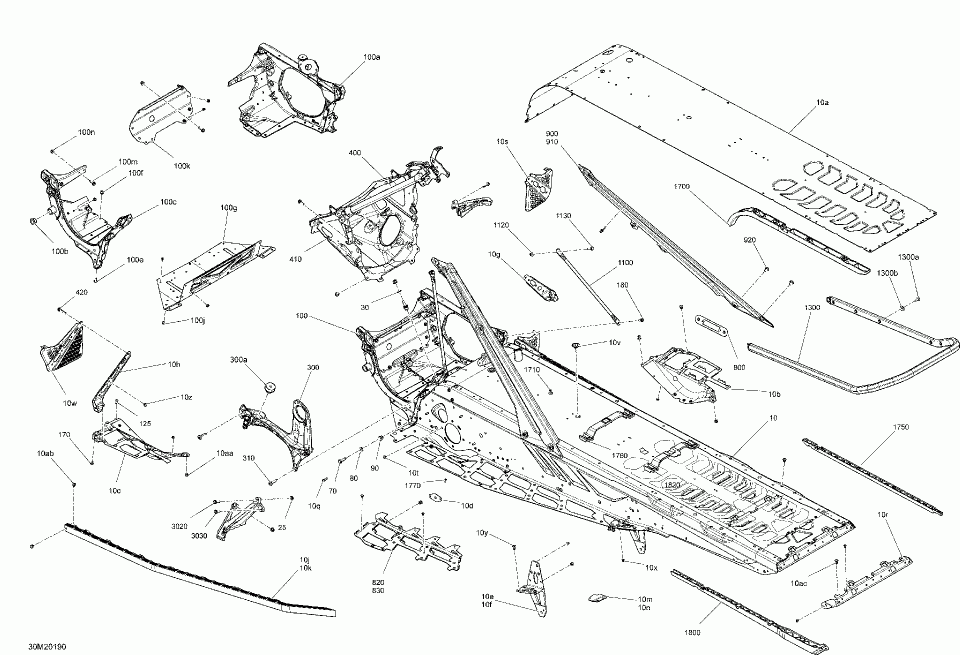

09- frame - system - xrs

Ski-Doo (Bombardier) BACKCOUNTRY 850 E-TEC - XRS - North America
Ski-Doo (Bombardier)
#oem кодцена
10
415130302
Can-Am Red, Chassis Tunnel Module 146
100b
505073317
Leg Cushion.
100g
518330074
Bottom Plate.
100j
293450268
Insert M5 X 0.8.
100k
518330100
Front Member.
100m
207662046
Hex. Flanged Screw M6 X 20.
100n
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
10a
415130287
Radiator Tunnel 146
10aa
293150147
Hemlock Rivet.
10ab
293150174
Hemlock Rivet, 6.4 mm.
10ac
293150147
Hemlock Rivet.
10b
518330520
RH Footrest Reinforcement.
10c
518331524
Deep Black, LH Footrest Reinforcement.
10d
518329619
RH Footrest.
10e
518329620
LH Footrest.
10f
518330682
LH Rear Suspension Support.
10g
518330683
RH Rear Suspension Support.
10h
518331253
Stirrup Reinforcement.
10j
518331560
Deep Black, LH Chasssis Reinforcement.
10k
518329023
RH Roller.
10m
518329024
LH Roller.
10n
415130287
Radiator Tunnel 146
10q
518328990
Rear Cap.
10r
518328460
RH Footrest.
10s
293730047
Black Dart 8 mm.
10t
293730060
Black Dart 10 mm.
10v
518331556
LH Foot Protector.
10w
293150203
Rivet AVIBULB 3/16.
10x
293150096
Hemlock Rivet, 6.5 mm.
10y
293150119
Hemlock Rivet, 6.5 mm.
10z
293150174
Hemlock Rivet, 6.4 mm.
1100
518329974
Upper Colomn Support.
1120
233261416
Elastic Flanged Nut M6 X 1.0.
1130
207662556
Hex. Flange Screw M6 X 25.
125
293150120
Hemlock Rivet 6.5 mm.
1300
518329553
Rear Bumper 146.
1300a
250000779
Torx Screw M6 X 1.0 X 18, Scotch Grip.
1300b
224061201
Flat Washer.
170
293450267
Insert M5 - 0.8.
1700
518329982
Front Protector. Ice Cobra.
1710
293150108
Pop Rivet 3/16”. Ice Cobra.
1750
518329994
Rear Protector. Ice Cobra.
1760
518329981
Front Support Protector. Ice Cobra.
180
207661646
Hex. Flange Screw M6 X 16.
1800
518329979
Rear Protector. Ice Cobra.
1820
520001545
Support. Ice Cobra.
25
250100199
Insert Half Hex Body M6 x 1.0.
30
506151252
Washer.
300a
512060295
Rubber Mount.
3020
250000793
Hex. Flanged Screw M6 X 25.
3030
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
310
250001060
Screw-Pan HD.Torx M8X30.
400
518330573
S Module.
410
250001051
Screw-Forming Hex.HD.FL. M6 X 16.
420
207663544
Hex. Flanged Screw M6 X 35.
70
250000942
Hex Screw M8 X 30.
80
234081410
Flat Washer 8 mm.
800
518329480
Member Fixation Plate.
820
518329646
RH Tunnel Liner.
830
518329647
LH Tunnel Liner.
90
233281414
Hex. Flanged Elastic Nut M8.
900
518330060
Left Member Black Assembly. Deep Black. Includes 900 to 900a.
900
518330137
White, LH Member Assembly. Bright White. Includes 900 to 900a.
910
518331056
Bright White, RH Rear Diag Cross Member. Bright White.
910
518330880
RH Member Black Assembly. Deep Black.
920
250000887
Pan Head Torx Screw M8 X 12.
