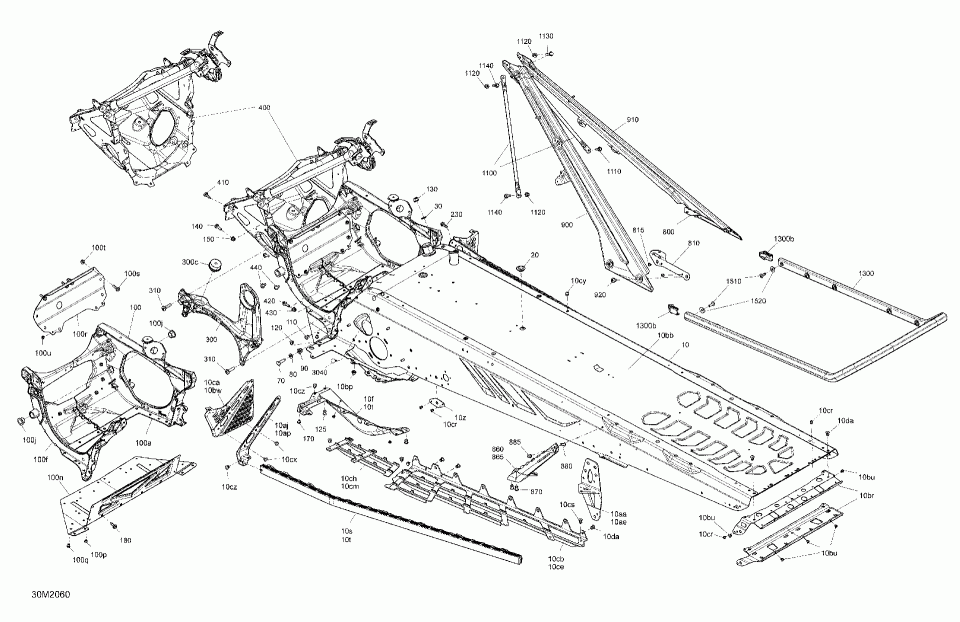

09- frame - system - 165

Ski-Doo (Bombardier) SUMMIT X - EXPERT - 165

09- frame - system - 165

#

oem код

название

цена

10

Can-Am Red, Chassis Tunnel Module 165

Can-Am Red, Chassis Tunnel Module 165

100j

Leg Cushion.

Leg Cushion.

100n

Bottom Plate.

Bottom Plate.

100p

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

100q

Insert M5 X 0.8.

Insert M5 X 0.8.

100r

Front Member.

Front Member.

100s

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

100t

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

100u

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10aa

LH Suspension Bracket.

LH Suspension Bracket.

10ae

RH Suspension Bracket.

RH Suspension Bracket.

10aj

Stirrup Reinforcement.

Stirrup Reinforcement.

10ap

Deep Black, LH Chasssis Reinforcement.

Deep Black, LH Chasssis Reinforcement.

10bb

Radiator Tunnel.

Radiator Tunnel.

10bp

Clinch Nut M6 Hexsert.

Clinch Nut M6 Hexsert.

10bu

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10bw

RH Footrest.

RH Footrest.

10ca

LH Foot Protector.

LH Foot Protector.

10cb

LH Rear Perforated Footstep.

LH Rear Perforated Footstep.

10ce

RH Rear Perforated Footstep.

RH Rear Perforated Footstep.

10ch

LH Front Driver Footrest.

LH Front Driver Footrest.

10cm

RH Front Driver Footrest.

RH Front Driver Footrest.

10cr

Avex Rivet.

Avex Rivet.

10cs

Rivet.

Rivet.

10cx

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10cy

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10cz

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

10da

Hemlock Rivet.

Hemlock Rivet.

10f

RH Footrest Reinforcement.

RH Footrest Reinforcement.

10s

RH Roller.

RH Roller.

10t

LH Footrest Reinforcement.

LH Footrest Reinforcement.

10t

LH Roller.

LH Roller.

10z

Reinforcement Plate.

Reinforcement Plate.

110

Hemlock Rivet.

Hemlock Rivet.

1100

Upper Colomn Support.

Upper Colomn Support.

1110

Hex. Flanged Screw M6 X 16, Scotch Grip. 000TGLK00.

Hex. Flanged Screw M6 X 16, Scotch Grip. 000TGLK00.

1110

Hex. Flanged Screw M6 X 20, Scotch Grip. 000TGLJ00.

Hex. Flanged Screw M6 X 20, Scotch Grip. 000TGLJ00.

1120

Elastic Flanged Nut M6 X 1.0. 000TGLK00.

Elastic Flanged Nut M6 X 1.0. 000TGLK00.

1120

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00.

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00.

1130

Hex. Flange Screw M6 X 25. 000TGLK00.

Hex. Flange Screw M6 X 25. 000TGLK00.

1130

Hex. Flanged Screw M6 X 25. 000TGLJ00.

Hex. Flanged Screw M6 X 25. 000TGLJ00.

1140

Hex. Flanged Screw M6 X 20. 000TGLJ00.

Hex. Flanged Screw M6 X 20. 000TGLJ00.

1140

Hex. Flanged Screw M6 X 20. 000TGLK00.

Hex. Flanged Screw M6 X 20. 000TGLK00.

120

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

125

Hex. Flanged Screw M6 X 20. 000TGLJ00.

Hex. Flanged Screw M6 X 20. 000TGLJ00.

125

Hemlock Rivet 6.5 mm. 000TGLK00.

Hemlock Rivet 6.5 mm. 000TGLK00.

126

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00. Not shown.

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00. Not shown.

130

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

1300

Rear Short Bumper 165. Included 1300 to 1300b.

Rear Short Bumper 165. Included 1300 to 1300b.

1300b

Cap.

Cap.

140

Hex. Flanged Screw M6 X 20. 000TGLJ00.

Hex. Flanged Screw M6 X 20. 000TGLJ00.

140

Hex. Flanged Screw M6 X 20. 000TGLK00.

Hex. Flanged Screw M6 X 20. 000TGLK00.

150

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00.

Hex. Flanged Elastic Nut M6 x 1.0. 000TGLJ00.

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip.

Torx Screw M6 X 1.0 X 18, Scotch Grip.

1520

Flat Washer.

Flat Washer.

170

Insert M5 - 0.8.

Insert M5 - 0.8.

180

Hex. Flange Screw M6 X 16.

Hex. Flange Screw M6 X 16.

20

Black, Plug.

Black, Plug.

230

Hex. Flanged Screw M6 X 20, Scotch Grip.

Hex. Flanged Screw M6 X 20, Scotch Grip.

30

Conical Spring Washer M8. 000TGLJ00.

Conical Spring Washer M8. 000TGLJ00.

30

Washer. 000TGLK00.

Washer. 000TGLK00.

300c

Rubber Mount.

Rubber Mount.

3040

Dart.

Dart.

310

Screw-Pan HD.Torx M8X30.

Screw-Pan HD.Torx M8X30.

400

S Module.

S Module.

410

Screw-Forming Hex.HD.FL. M6 X 16.

Screw-Forming Hex.HD.FL. M6 X 16.

420

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

430

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

440

Hex. Flange Screw M6 X 16. 000TGLJ00.

Hex. Flange Screw M6 X 16. 000TGLJ00.

440

Hex. Flanged Screw M6 X 16. 000TGLK00.

Hex. Flanged Screw M6 X 16. 000TGLK00.

70

Hex Screw M8 X 30.

Hex Screw M8 X 30.

80

Flat Washer 8 mm.

Flat Washer 8 mm.

800

LH Member Fixation Plate.

LH Member Fixation Plate.

800

LH Under Chassis Reinforcement.

LH Under Chassis Reinforcement.

810

RH Member Fixation Plate.

RH Member Fixation Plate.

810

RH Under Chassis Reinforcement.

RH Under Chassis Reinforcement.

815

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

860

Red, LH Rear Footrest Reinforcement.

Red, LH Rear Footrest Reinforcement.

860

LH Roller Link.

LH Roller Link.

865

Red, RH Rear Footrest Reinforcement.

Red, RH Rear Footrest Reinforcement.

865

RH Roller Link.

RH Roller Link.

870

Rivet.

Rivet.

90

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

900

White, LH Rear Diag Cross Member.

White, LH Rear Diag Cross Member.

910

White, RH Rear Diag Cross Member.

White, RH Rear Diag Cross Member.

920

Pan Head Torx Screw M8 X 12.

Pan Head Torx Screw M8 X 12.
