01- engine - cooling - 849 Запчасти для снегоходов Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - Europe (2020)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

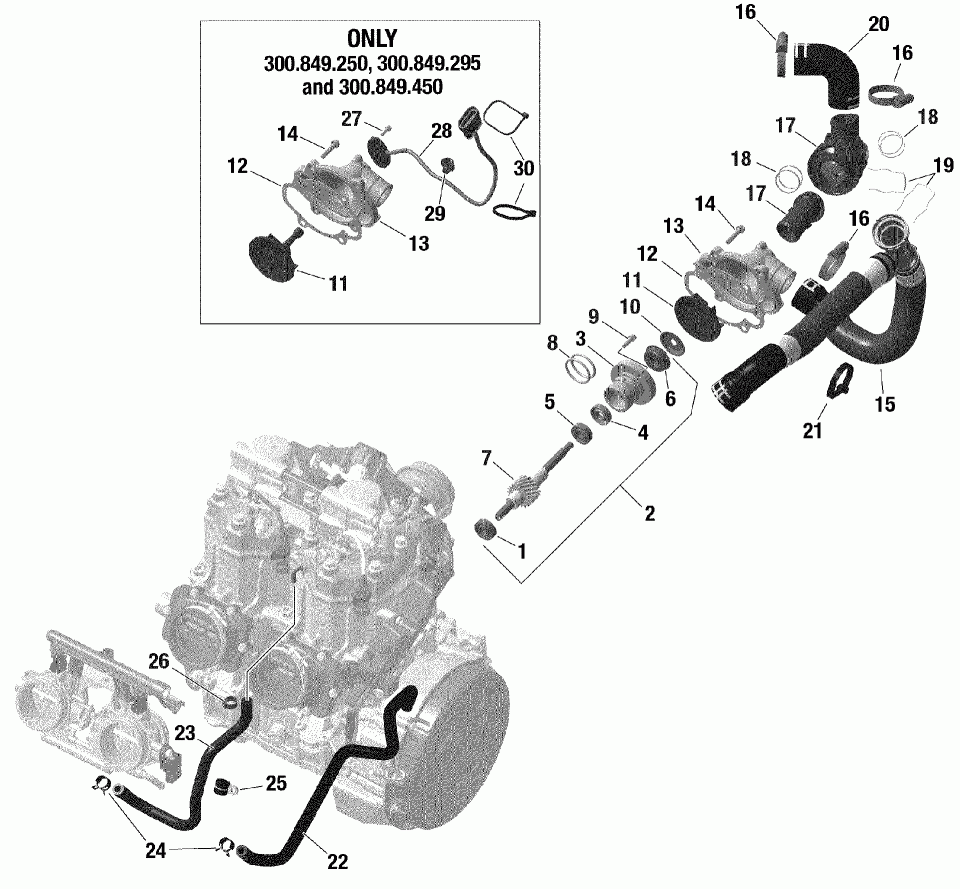

01- engine - cooling - 849

Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - Europe

01- engine - cooling - 849

#

oem код

название

цена

1

Ball Bearing.

Ball Bearing.

10

Cover Washer.

Cover Washer.

11

Impeller.

Impeller.

12

Gasket.

Gasket.

13

Waterpump Housing.

Waterpump Housing.

14

Flanged Torx Screw M6 X 25.

Flanged Torx Screw M6 X 25.

15

Molded Hose.

Molded Hose.

16

Clamp 26-38MM.

Clamp 26-38MM.

17

Thermostat Housing. Includes 17 to 18.

Thermostat Housing. Includes 17 to 18.

18

КОЛЬЦО

КОЛЬЦО

19

Spring Clip.

Spring Clip.

2

Water Pump Shaft. Includes 2 to 9.

Water Pump Shaft. Includes 2 to 9.

20

Hose Return.

Hose Return.

21

Tie-Rap.

Tie-Rap.

22

Molded Hose.

Molded Hose.

23

Molded Hose.

Molded Hose.

24

Clamp.

Clamp.

25

Clamp.

Clamp.

26

Clamp.

Clamp.

27

Allen Screw M4 X12.

Allen Screw M4 X12.

28

Angle Sensor.

Angle Sensor.

29

Tie-Rap With Mount.

Tie-Rap With Mount.

3

Step Collar.

Step Collar.

30

Tie-Rap 142 mm.

Tie-Rap 142 mm.

4

Oil Seal.

Oil Seal.

5

Ball Bearing.

Ball Bearing.

6

Rotary Seal.

Rotary Seal.

8

КОЛЬЦО

КОЛЬЦО

9

Allen Screw M5 x 16.

Allen Screw M5 x 16.
