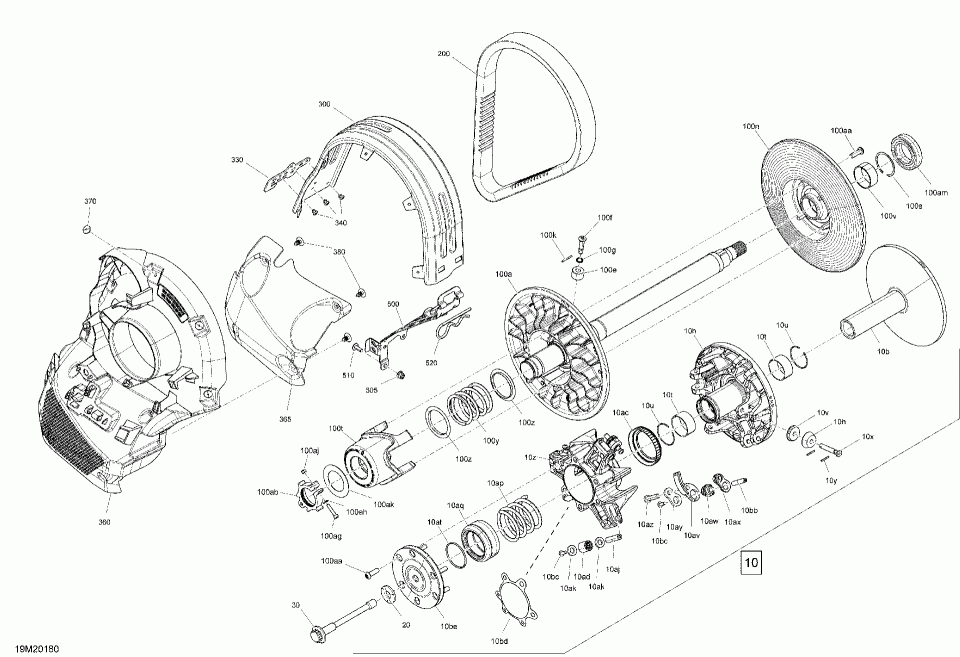

05- pulley - system

Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - Europe
Ski-Doo (Bombardier)
#oem кодцена
100aa
250000757
Screw-Torx Button Head M8 X 25 S.Gr.
100ag
250000981
Socket Screw M5 X 25.
100ah
234051410
Flat Washer M5.
100aj
232551414
Elastic Stop Nut M5.
100ak
417127155
Washer.
100am
504152574
Ball Bearing.
100e
417127016
Roller.
100f
417127294
Pivot Stud.
100g
250200009
Lock Washer 8 mm.
100k
250400070
Spring Pin.
100s
293370049
Circlip.
100v
417127318
Bushing ID 41mm OD 45mm X 19mm L.
100y
417127039
Black Spring.
100z
417127116
Swivel Abutment.
10ac
417224614
Spring Guide.
10aj
417224204
Axle - 10mm.
10ak
417224009
Washer-Thrust.
10ap
417224168
Clutch Spring.
10aq
417224003
Seat Spring.
10at
293370116
Circlip.
10av
417224573
Ramp Pulley 984.
10aw
417224113
Cam Molded.
10ax
417224086
RH Lever.
10ay
417224114
LH Lever.
10az
417224222
Pivot 38mm.
10bb
417223631
Axle - 8mm.
10bc
250000763
Torx-Truss M/S M5 X 14 S.Grip.
10bd
417224060
Spacer.
10be
417223994
Cushion-Drive.
10t
293250389
Bushing.
10u
293370117
Circlip.
10v
417224153
Back Torque Roller.
10x
417224191
Pin.
10y
250400074
Spring Pin 3/32
20
250200144
Conical Spring Washer M14.
200
417300571
Drive Belt.
30
417300522
Pulley Drive Bolt M14 X 144.
300
417300479
Belt Guard.
330
417300561
Front, Retaining Hook.
340
390909200
Avex Rivet.
360
417300569
CVT Duct Cooling.
365
417300590
Acoustic Panel.
370
293150103
Pop Rivet 3/16
380
414644300
Black, Dart.
500
417300577
Rear Guard Support. Includes 500 to 500a.
505
233261466
Hex. Flanged Elastic Nut M6.
510
250000755
Torx Screw M6 X 16.
520
114045200
Hair Pin.
