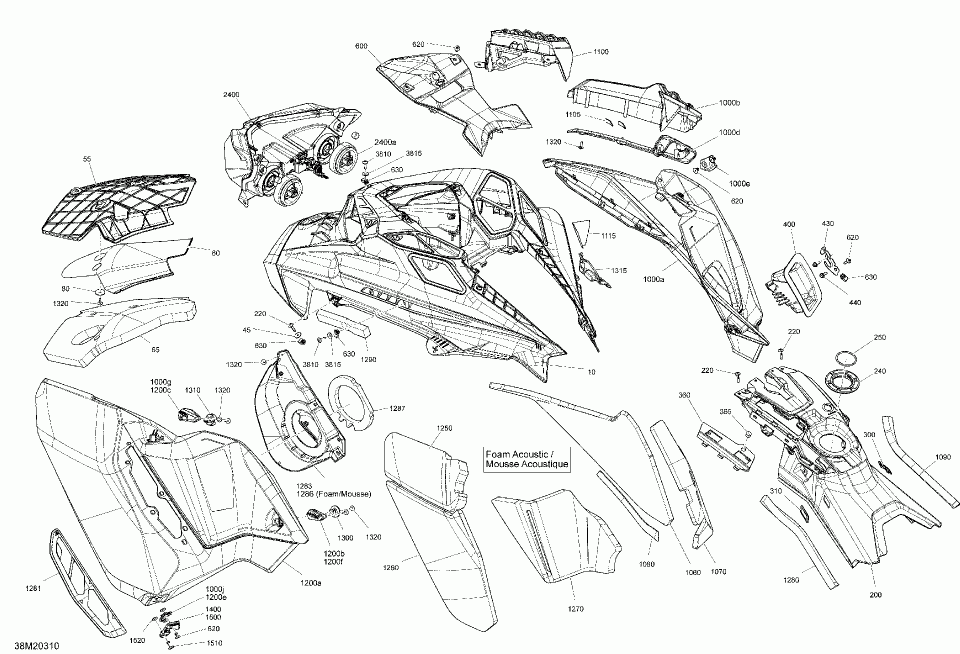

09- body - hood section

Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - North America

09- body - hood section

#

oem код

название

цена

10

Hood.

Hood.

1000a

Deep Black - RH Panel.

Deep Black - RH Panel.

1000b

Panel Grid.

Panel Grid.

1000d

Molded J Clamp.

Molded J Clamp.

1000e

Stopper.

Stopper.

1000g

RH Front Latch.

RH Front Latch.

1000j

RH Hook.

RH Hook.

1060

Foam.

Foam.

1070

RH Rear Panel Foam.

RH Rear Panel Foam.

1080

Rubber Sheet.

Rubber Sheet.

1090

RH Rear Panel Foam.

RH Rear Panel Foam.

1100

RH Panel Grid.

RH Panel Grid.

1105

Heat Shield.

Heat Shield.

1115

Heat Shield.

Heat Shield.

1200a

LH Panel.

LH Panel.

1200b

LH Rear Latch.

LH Rear Latch.

1200c

LH Front Latch.

LH Front Latch.

1200e

LH Hook.

LH Hook.

1200f

RH Rear Latch.

RH Rear Latch.

1250

LH Front Panel Foam.

LH Front Panel Foam.

1260

Foam.

Foam.

1270

Foam Acoustic Rear Panel.

Foam Acoustic Rear Panel.

1280

LH Rear Panel Foam.

LH Rear Panel Foam.

1281

LH Grill.

LH Grill.

1283

Duct.

Duct.

1286

Duct Foam.

Duct Foam.

1287

Foam.

Foam.

1290

Foam.

Foam.

1300

Rear Stud.

Rear Stud.

1310

Front Stud.

Front Stud.

1315

Stopper.

Stopper.

1320

Screw M4 X 16.

Screw M4 X 16.

1400

RH Lower Latch.

RH Lower Latch.

1500

LH Lower Latch.

LH Lower Latch.

1510

Torx Screw M5 X 25.

Torx Screw M5 X 25.

1520

Washer.

Washer.

200

Rear Console.

Rear Console.

220

Torx Screw M5 X 26.

Torx Screw M5 X 26.

240

Console Nut.

Console Nut.

2400

Headlamp. Includes 2400 to 2400a.

Headlamp. Includes 2400 to 2400a.

2400a

Bulb.

Bulb.

250

КОЛЬЦО

КОЛЬЦО

300

RH Cap.

RH Cap.

310

LH Cap.

LH Cap.

360

LH Front Console.

LH Front Console.

365

Cap.

Cap.

3810

Torx Screw M5 X 20.

Torx Screw M5 X 20.

3815

Washer.

Washer.

400

RH Console.

RH Console.

430

Rope Guide.

Rope Guide.

440

Hex. Flanged Screw M6 X 12.

Hex. Flanged Screw M6 X 12.

45

Washer.

Washer.

55

Support CTRL.

Support CTRL.

600

Indicator Support.

Indicator Support.

620

Torx Truss M5 X 20.

Torx Truss M5 X 20.

630

Panel Nut M5 X 0.8.

Panel Nut M5 X 0.8.

65

Hood Foam Acoustic.

Hood Foam Acoustic.

80

Washer.

Washer.
