09- frame - system Запчасти для снегоходов Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - North America (2020)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

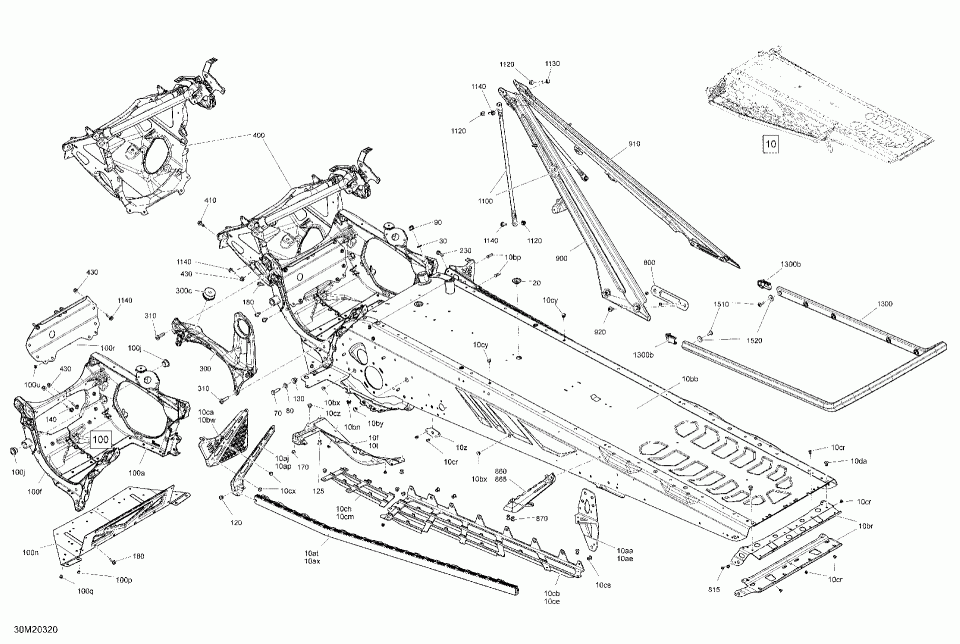

09- frame - system

Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - North America

09- frame - system

#

oem код

название

цена

10

Sunburst Yellow Chassis Tunnel Module165. Includes 10 to 10da.

Sunburst Yellow Chassis Tunnel Module165. Includes 10 to 10da.

100j

Leg Cushion.

Leg Cushion.

100n

Bottom Plate.

Bottom Plate.

100p

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

100q

Insert M5 X 0.8.

Insert M5 X 0.8.

100r

Front Member.

Front Member.

100u

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10aa

LH Suspension Bracket.

LH Suspension Bracket.

10ae

RH Suspension Bracket.

RH Suspension Bracket.

10aj

Stirrup Reinforcement.

Stirrup Reinforcement.

10ap

Deep Black, LH Chasssis Reinforcement.

Deep Black, LH Chasssis Reinforcement.

10at

RH Roller.

RH Roller.

10ax

LH Roller.

LH Roller.

10bb

Radiator Tunnel 154

Radiator Tunnel 154

10bn

Insert Half Hex Body M6 x 1.0.

Insert Half Hex Body M6 x 1.0.

10bp

Clinch Stud M6 X 20.

Clinch Stud M6 X 20.

10bu

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10bw

RH Footrest.

RH Footrest.

10bx

Black Dart 8 mm.

Black Dart 8 mm.

10by

Black Dart 10 mm.

Black Dart 10 mm.

10ca

LH Foot Protector.

LH Foot Protector.

10cb

LH Rear Perforated Footstep.

LH Rear Perforated Footstep.

10ce

RH Rear Perforated Footstep.

RH Rear Perforated Footstep.

10ch

LH Front Driver Footrest.

LH Front Driver Footrest.

10cm

RH Front Driver Footrest.

RH Front Driver Footrest.

10cr

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

10cs

Rivet.

Rivet.

10cx

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10cy

Hemlock Rivet, 6.5 mm.

Hemlock Rivet, 6.5 mm.

10cz

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

10da

Hemlock Rivet.

Hemlock Rivet.

10f

RH Footrest Reinforcement.

RH Footrest Reinforcement.

10t

LH Footrest Reinforcement.

LH Footrest Reinforcement.

10z

Reinforcement Plate.

Reinforcement Plate.

1100

Upper Colomn Support.

Upper Colomn Support.

1120

Elastic Flanged Nut M6 X 1.0.

Elastic Flanged Nut M6 X 1.0.

1130

Hex. Flange Screw M6 X 25.

Hex. Flange Screw M6 X 25.

1140

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

120

Hemlock Rivet, 6.4 mm.

Hemlock Rivet, 6.4 mm.

125

Hemlock Rivet 6.5 mm.

Hemlock Rivet 6.5 mm.

130

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

1300

Rear Short Bumper 165. Includes 1300 to 1300b.

Rear Short Bumper 165. Includes 1300 to 1300b.

1300b

Cap.

Cap.

140

Hex. Flanged Screw M6 X 20.

Hex. Flanged Screw M6 X 20.

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip.

Torx Screw M6 X 1.0 X 18, Scotch Grip.

1520

Flat Washer.

Flat Washer.

170

Insert M5 - 0.8.

Insert M5 - 0.8.

180

Hex. Flange Screw M6 X 16.

Hex. Flange Screw M6 X 16.

20

Black, Plug.

Black, Plug.

230

Hex. Flanged Screw M6 X 20, Scotch Grip.

Hex. Flanged Screw M6 X 20, Scotch Grip.

30

Washer.

Washer.

300c

Rubber Mount.

Rubber Mount.

310

Screw-Pan HD.Torx M8X30.

Screw-Pan HD.Torx M8X30.

400

S Module.

S Module.

410

Screw-Forming Hex.HD.FL. M6 X 16.

Screw-Forming Hex.HD.FL. M6 X 16.

430

Hex. Flanged Elastic Nut M6 x 1.0.

Hex. Flanged Elastic Nut M6 x 1.0.

70

Hex Screw M8 X 30.

Hex Screw M8 X 30.

80

Flat Washer 8 mm.

Flat Washer 8 mm.

800

Member Fixation Plate.

Member Fixation Plate.

815

Rivet AVIBULB 3/16.

Rivet AVIBULB 3/16.

860

Labrador Blue, LH Rear Footrest Reinforc.

Labrador Blue, LH Rear Footrest Reinforc.

860

SunburstYellow, LH Rear Footrest Reinfor.

SunburstYellow, LH Rear Footrest Reinfor.

865

Blue, RH Rear Footrest Reinforcement.

Blue, RH Rear Footrest Reinforcement.

865

Yellow, RH Rear Footrest Reinforcement.

Yellow, RH Rear Footrest Reinforcement.

870

Rivet.

Rivet.

90

Hex. Flanged Elastic Nut M8.

Hex. Flanged Elastic Nut M8.

900

Yellow, LH Member.

Yellow, LH Member.

910

Sunburst Yellow, RH Rear Diag Cross Memb.

Sunburst Yellow, RH Rear Diag Cross Memb.

920

Pan Head Torx Screw M8 X 12.

Pan Head Torx Screw M8 X 12.
