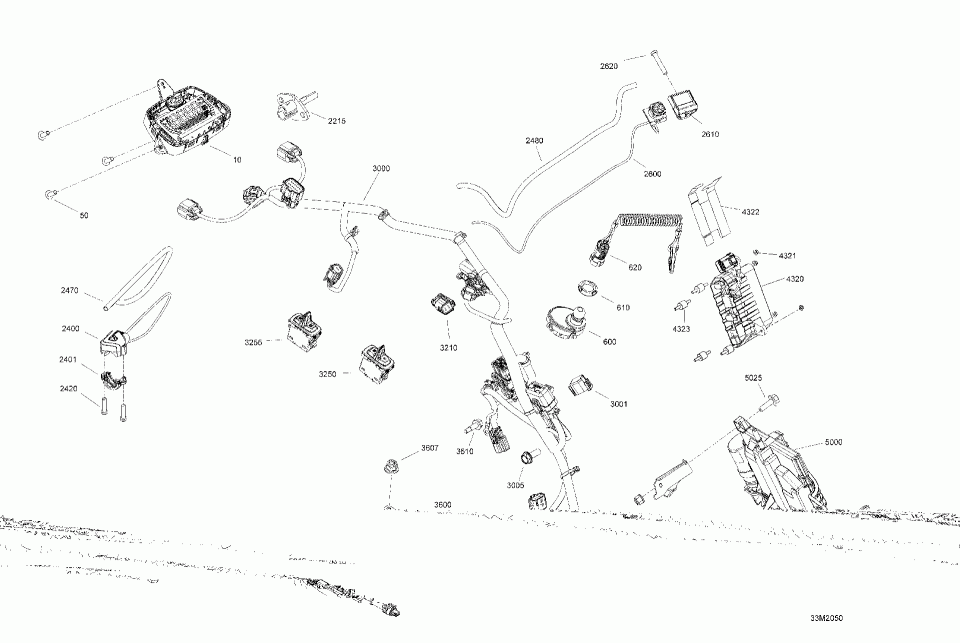

10- electric - system

Ski-Doo (Bombardier) SUMMIT 850 E-TEC Turbo - North America
Ski-Doo (Bombardier)
#oem кодцена
10
515178810
Multifunction Gauge Compact Mono.
2215
515176366
Air Temperature Sensor.
2220
250000577
Torx Truss Screw K40 X 12. Not illustrated.
2400
515178381
Start Button.
2401
515177952
Clamp.
2420
250000671
Torx Screw.
2470
415130141
Sleeve.
2480
415130141
Sleeve.
2600
515177931
Emergency Stop Switch.
2610
515177310
Emergency Stop Switch Support.
2620
250000263
Torx Screw #8-18.
3000
515178606
Chassis Wiring Harness.
3001
515178435
Diagnostic Cap.
3005
250001062
Hex. Flanged Screw M6 X 16.
3210
515178177
4 Circuits Female Housing.
3250
515178462
Switch Rocker Hand Warmer.
3255
515178463
Switch Rocker Headlignt.
3600
515178248
Ground Wire.
3605
207662044
Hex. Flanged Screw M6 X 20.
3607
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
3610
250000911
Hex. Flanged Screw M5 X 16.
4320
515178479
Ultracapacitor Module.
4321
233151414
Nut Flange Hex. M5.
4322
515178698
Heat Shield.
4323
707000746
Rubber Mount.
50
250000577
Torx Truss Screw K40 X 12.
5000
512061375
Engine Control Module.
5010
515178430
Rubber Stopper.
5025
207551634
Hex. Flanged Screw, Scotch Grip.
600
515178225
DESS Switch, RFID.
610
278002963
Safety Nut (DESS Switch).
