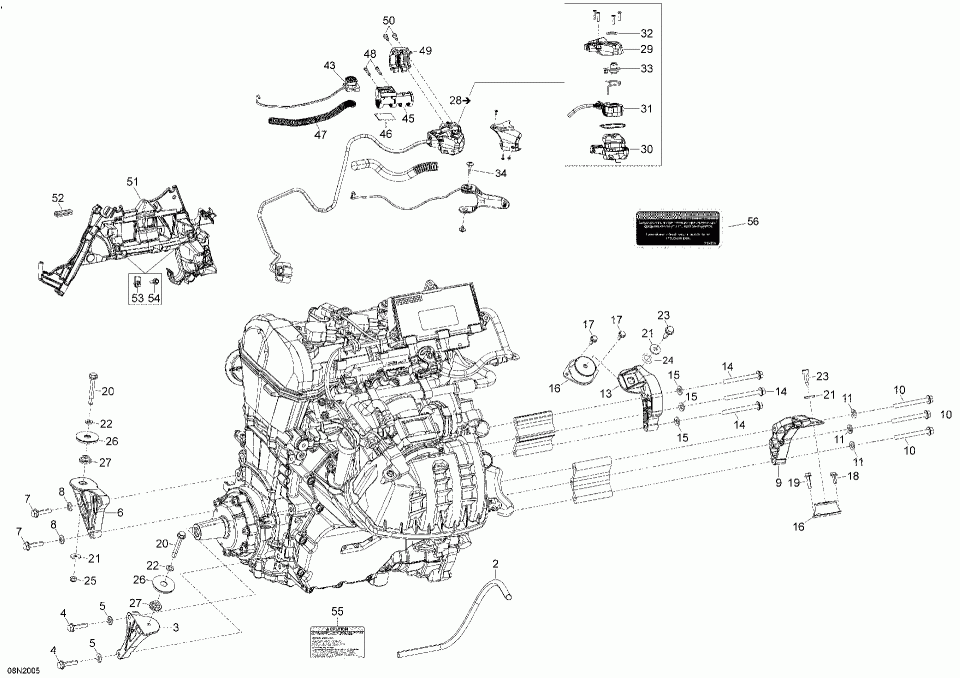

01- engine - system

Ski-Doo (Bombardier) EXPEDITION SWT 900 ACE - North America
Ski-Doo (Bombardier)
#oem кодцена
10
207584544
Hex. Flanged Screw M8 X 45, Scotch Grip.
11
250200157
Conical Spring Washer M8.
13
512061141
Front Support MAG.
14
207584544
Hex. Flanged Screw M8 X 45, Scotch Grip.
15
250200157
Conical Spring Washer M8.
16
512060729
Rubber Mount.
17
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
18
207561644
Hex.Fla. Screw M6 X 16, Scotch Grip.
19
207562544
Hex. Flanged Screw M6 X 25.
2
512061067
Protector Tube.
20
207586044
Hex. Flanged Screw M8 X 60, Scotch Grip.
21
503183200
Washer, Yellow.
22
250200008
Flat Washer With Teflon 8 mm.
23
250000257
Cone Screw, M8 X 30.
23
250000639
Cone Screw, M8 X 25.
24
293300123
КОЛЬЦО
25
232581414
Hex. Elastic Stop Nut M8.
26
512060826
Stopper.
27
512060285
Spacer.
3
512061139
Rear Support PTO.
30
512060862
Cap.
31
250000623
Torx Screw M2.9 x 9.5.
32
250000671
Torx Screw.
33
512060961
Screw.
34
250000528
Torx Screw M5 X 20.
4
250000986
Hex. Flanged Screw M8 X 35.
43
515177362
Emergency Stop Switch.
45
512060844
Support.
46
294000973
Friction Tape.
47
515177946
Protector Tube.
48
250000263
Torx Screw #8-18.
49
512060987
Front Housing.
5
250200146
Conical Spring Washer M8.
50
250000632
Torx Screw M5 X 14.
51
512060994
Module Support.
52
271001530
Protective Trim ( 1 Meter ).
53
250000958
Panel Nut M5 X 0.8.
54
207552044
Hex. Flanged Screw M5 X 20, Scotch Grip.
55
516005521
Caution Decal, Oil Level.
56
516009934
Warning Decal.
6
512061140
Front Support PTO.
7
250000986
Hex. Flanged Screw M8 X 35.
8
250200146
Conical Spring Washer M8.
9
512061142
Rear Support MAG.
