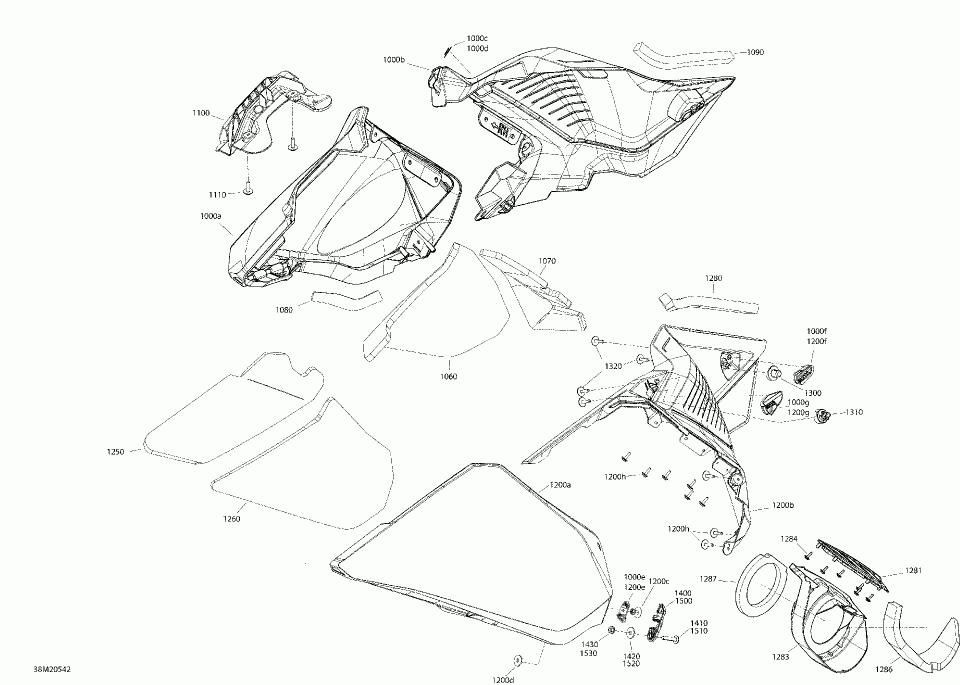

09- body - hood section - lateral panel - deep black

Ski-Doo (Bombardier) MXZ 850 E-TEC - XRS - North America
Ski-Doo (Bombardier)
#oem кодцена
1000a
517307302
RH Panel.
1000b
517305861
Deep Black, RH Panel Trim.
1000c
517305109
Rivet Plate.
1000d
293150104
Pop Rivet 3/16
1000e
517306311
RH Hook.
1000f
517305773
RH Rear Latch.
1000g
517305979
RH Front Latch.
1060
517305767
RH Central Panel Foam.
1070
517306116
RH Rear Panel Foam.
1080
517306262
Rubber Sheet.
1090
517306480
RH Rear Panel Foam.
1100
517305862
Deep Black, RH Grill.
1110
250000725
Screw M4 X 16.
1200a
517307305
LH Panel.
1200b
517306935
Black, LH Panel Trim.
1200c
293150104
Pop Rivet 3/16
1200d
517124300
Washer.
1200e
517306312
LH Hook.
1200f
517305774
LH Rear Latch.
1200g
517305980
LH Front Latch.
1200h
250000725
Screw M4 X 16.
1250
517305769
LH Front Panel Foam.
1260
517305770
LH Central Panel Foam.
1280
517306479
LH Rear Panel Foam.
1281
517306937
LH Grill.
1283
517307283
Duct.
1284
250000725
Screw M4 X 16.
1286
517306960
Duct Foam.
1287
517307284
Foam.
1300
517305985
Rear Stud.
1310
517305988
Front Stud.
1320
250000725
Screw M4 X 16.
1400
517306309
RH Lower Latch.
1410
250000762
Torx Screw M5 X 25.
1420
517124300
Washer.
1430
233151414
Nut Flange Hex. M5.
1500
517306310
LH Lower Latch.
1510
250000762
Torx Screw M5 X 25.
1520
517124300
Washer.
1530
233151414
Nut Flange Hex. M5.
