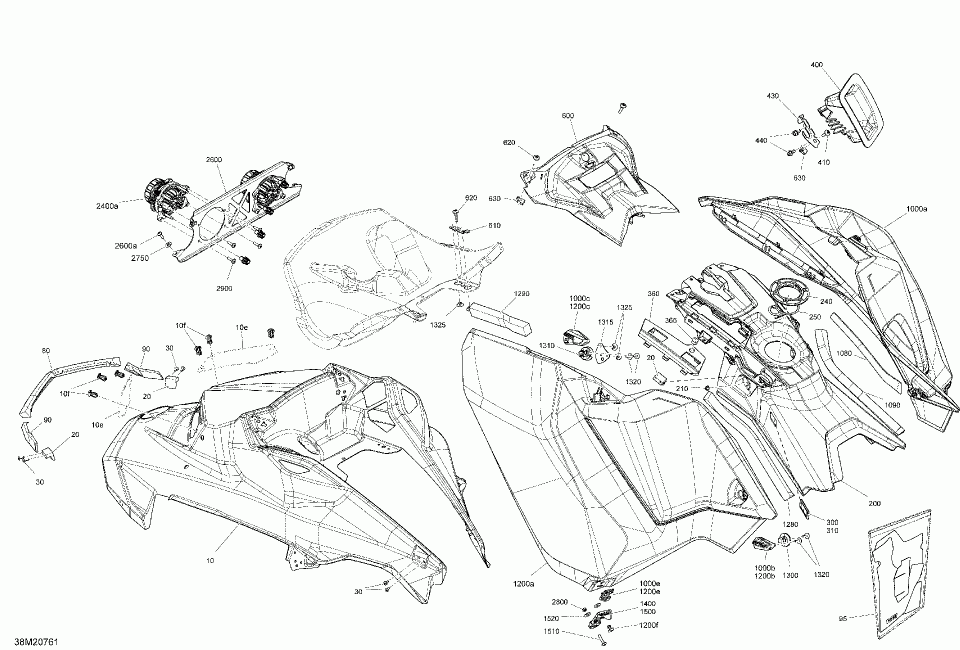

09- body - hood section

Ski-Doo (Bombardier) MXZ 600RS - North America

09- body - hood section

#

oem код

название

цена

10

Hood. Includes 10 to 10f.

Hood. Includes 10 to 10f.

1000a

RH Panel.

RH Panel.

1000b

RH Rear Latch.

RH Rear Latch.

1000c

RH Front Latch.

RH Front Latch.

1000e

RH Hook.

RH Hook.

1080

Rubber Sheet.

Rubber Sheet.

1090

RH Rear Panel Foam.

RH Rear Panel Foam.

10f

Tuflok Plastic Rivet.

Tuflok Plastic Rivet.

1200a

LH Panel.

LH Panel.

1200b

LH Rear Latch.

LH Rear Latch.

1200c

LH Front Latch.

LH Front Latch.

1200e

LH Hook.

LH Hook.

1200f

Pop Rivet 3/16

Pop Rivet 3/16

1280

LH Rear Panel Foam.

LH Rear Panel Foam.

1290

Foam.

Foam.

1300

Rear Stud.

Rear Stud.

1310

Front Stud.

Front Stud.

1315

Plate.

Plate.

1320

Screw M4 X 16.

Screw M4 X 16.

1325

Pop Rivet 3/16

Pop Rivet 3/16

1400

RH Lower Latch.

RH Lower Latch.

1500

LH Lower Latch.

LH Lower Latch.

1510

Torx Screw M5 X 25.

Torx Screw M5 X 25.

1520

Washer.

Washer.

20

Hook.

Hook.

200

Rear Console.

Rear Console.

210

Flanged Elastic Nut M5.

Flanged Elastic Nut M5.

240

Console Nut.

Console Nut.

2400a

Headlight.

Headlight.

250

КОЛЬЦО

КОЛЬЦО

2600

Bracket. Includes 2600 to 2600a.

Bracket. Includes 2600 to 2600a.

2600a

Insert M5 X 0.8.

Insert M5 X 0.8.

2750

Rubber Washer 5 mm.

Rubber Washer 5 mm.

2800

Nut Flange Hex. M5.

Nut Flange Hex. M5.

2900

Torx Screw M5 X 20.

Torx Screw M5 X 20.

30

Torx Truss Screw K40 X 12.

Torx Truss Screw K40 X 12.

300

RH Cap.

RH Cap.

310

LH Cap.

LH Cap.

360

LH Front Console.

LH Front Console.

365

Cap.

Cap.

400

RH Console.

RH Console.

410

Torx Truss M5 X 20.

Torx Truss M5 X 20.

430

Rope Guide.

Rope Guide.

440

Hex. Flanged Screw M6 X 12.

Hex. Flanged Screw M6 X 12.

600

Indicator Support.

Indicator Support.

610

Hook.

Hook.

620

Torx Screw M5 X 26.

Torx Screw M5 X 26.

630

Panel Nut M5 X 0.8.

Panel Nut M5 X 0.8.

80

Front Hood Foam.

Front Hood Foam.

90

Hood Foam.

Hood Foam.

95

Foil.

Foil.
