01- engine - lubrication - 900 ace Запчасти для снегоходов Ski-Doo (Bombardier) RENEGADE 900 ACE

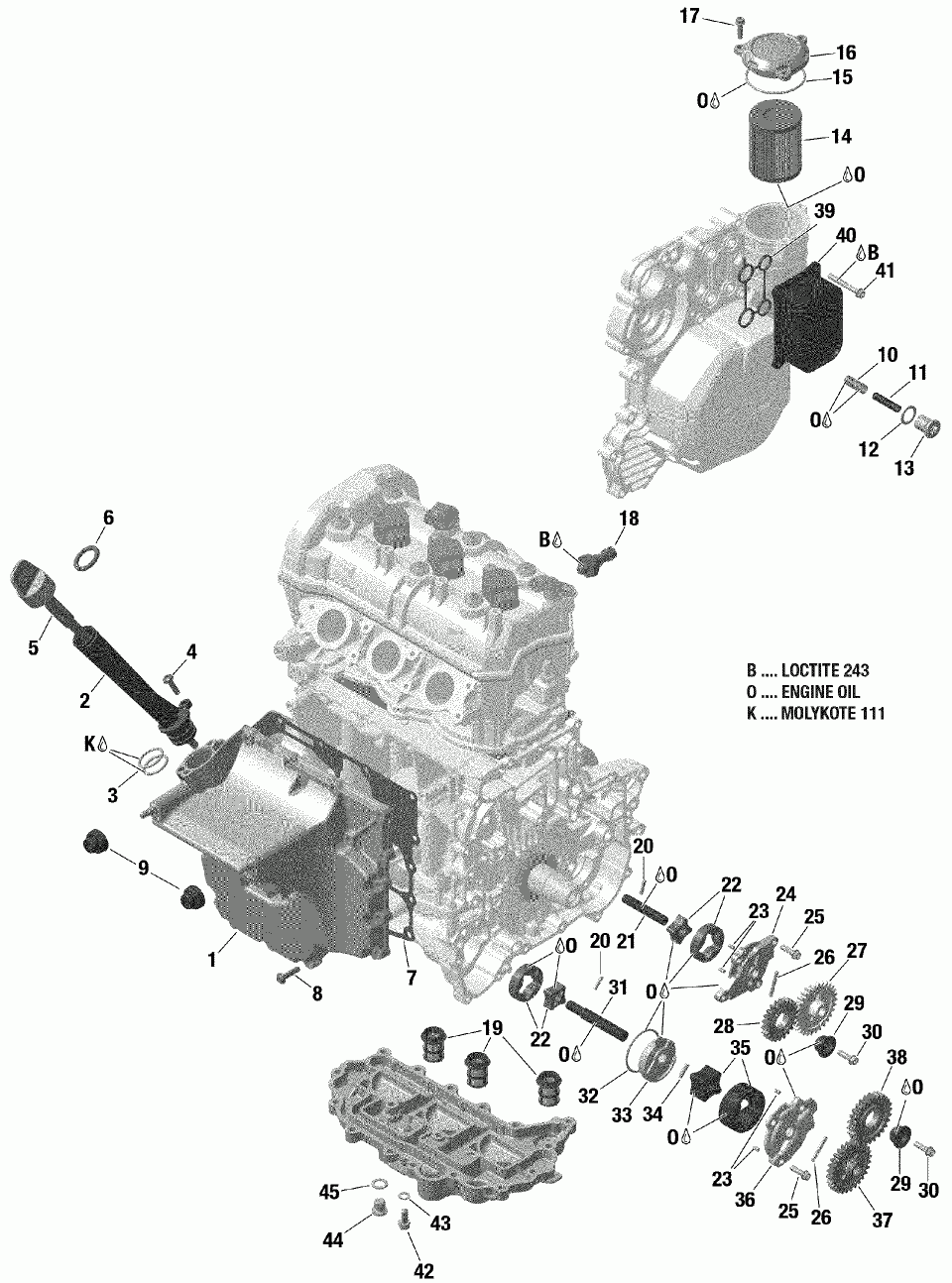

01- engine - lubrication - 900 ace

Ski-Doo (Bombardier) RENEGADE 900 ACE - North America

oem код

название

цена

420656705

Oil Sump Cover.

420256518

Pressure Regulating Piston.

Spring.

Gasket Ring.

Plug Screw.

Oil Filter.

КОЛЬЦО

Oil Filter Cover.

Flanged Torx Screw M6 X 20.

Oil Pressure Switch.

Oil Sieve.

Oil Filler Tube.

Needle Pin.

Oil Pump Shaft.

Oil Pump Rotor.

Needle Pin.

Oil Pump Cover.

Flanged Torx Screw M6 X 20.

420232431

Needle Pin.

420834882

Oil Pump Gear, 29 Teeth.

Gear 22 Teeths.

Spacer.

КОЛЬЦО

Flanged Torx Screw M6 X 20.

Oil Pump Shaft.

КОЛЬЦО

Oil Pump Cover.

Needle Pin.

Oil Pump Rotor.

Oil Pump Cover.

Oil Pump Gear, 28 Teeth.

420835321

Idle Gear, 26 Teeth.

420431870

Gasket.

420441386

Flanged Torx Screw M6 X 20.

420656698

Oil Water Heat Exchanger.

420440324

Flanged Torx Screw M6 X 45.

420440852

Flanged Torx Screw M8 X 16.

420950141

Sealing Ring.

420241701

Plug Screw M12 x 1,5.

420250640

Copper Washer.

5>6

Oil Lever Tube.

Gasket Ring.

Gasket.

Flanged Torx Screw M6 X 25.

420860150

Rubber Grommet.
