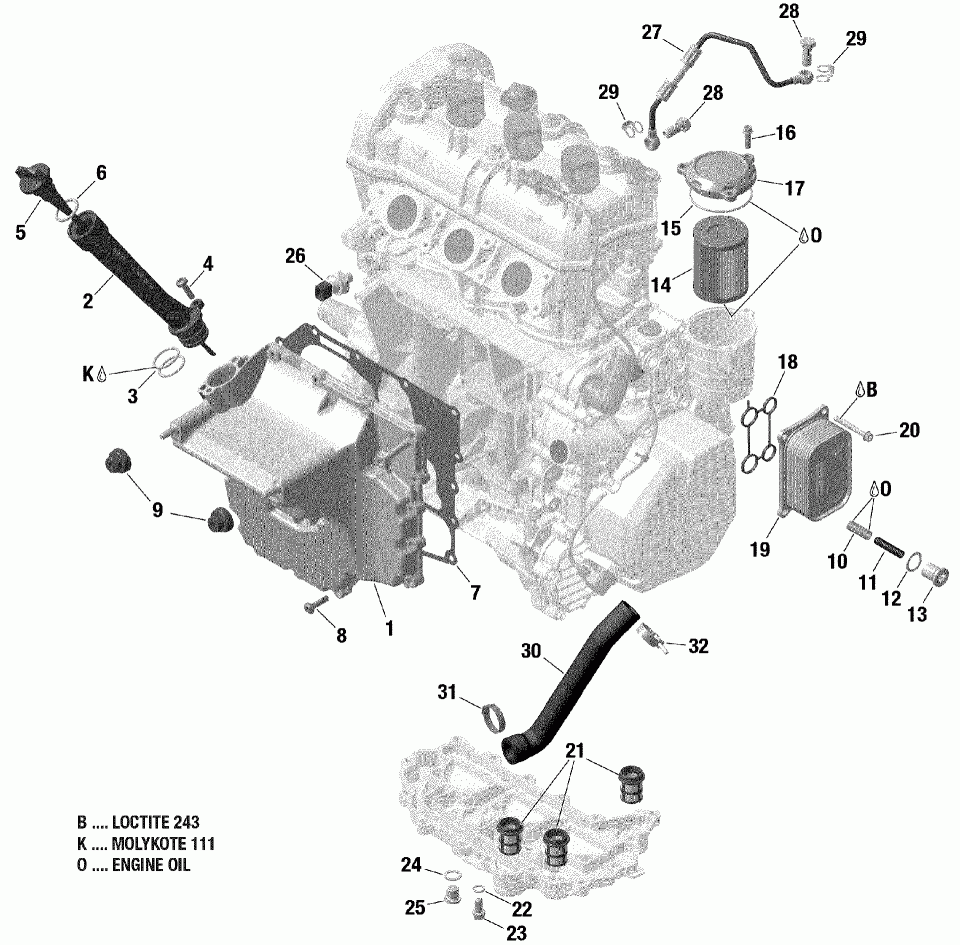

01- engine - lubrication

Ski-Doo (Bombardier) RENEGADE 900 ACE Turbo - ENDURO - North America
Ski-Doo (Bombardier)
#oem кодцена
1
420656705
Oil Sump Cover.
10
420256518
Pressure Regulating Piston.
11
420239445
Spring.
12
420430623
Gasket Ring.
13
420441372
Plug Screw.
14
420956124
Oil Filter.
15
420230920
КОЛЬЦО
16
420440207
Flanged Torx Screw M6 X 20.
17
420612132
Oil Filter Cover.
18
420431870
Gasket.
19
420656698
Oil Water Heat Exchanger.
2
420656901
Oil Filler Tube.
20
420440324
Flanged Torx Screw M6 X 45.
21
420656680
Oil Sieve.
22
420950141
Sealing Ring.
23
420440852
Flanged Torx Screw M8 X 16.
24
420250640
Copper Washer.
25
420241701
Plug Screw M12 x 1,5.
26
420256978
Oil Pressure Switch.
27
420456322
Oil Line.
28
420840183
Banjo Bolt.
29
420230153
Sealing Ring.
3
420430440
КОЛЬЦО
30
420201750
Molded Hose.
31
420251578
Clamp.
32
420251223
Clamp.
4
420441386
Flanged Torx Screw M6 X 20.
5>6
420856666
Oil Dipstick.
6
420631640
КОЛЬЦО
7
420431845
Gasket.
8
420841549
Flanged Torx Screw M6 X 25.
9
420860150
Rubber Grommet.
