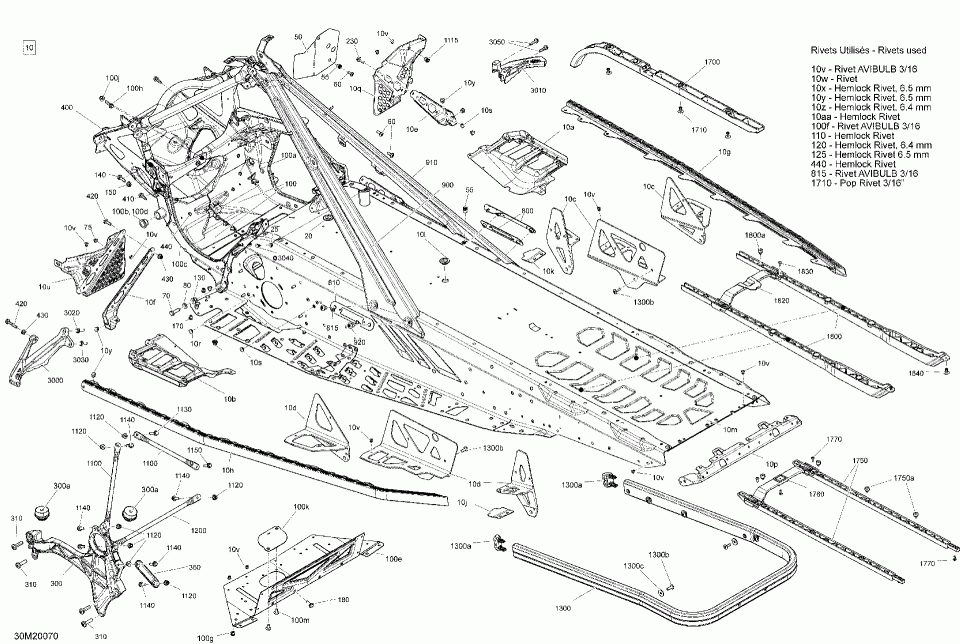

09- frame - system - model 137

Ski-Doo (Bombardier) RENEGADE 900 ACE Turbo - XRS - North America
Ski-Doo (Bombardier)
#oem кодцена
10
415130327
Deep Black, Chassis Tunnel Module 137
10
415130328
Deep Black, Chassis Tunnel Module 137. Manta Green. Includes 10 to 10y.
100b
505073317
Leg Cushion.
100d
505073317
Leg Cushion.
100e
518329342
Bottom Plate.
100f
293150203
Rivet AVIBULB 3/16.
100g
293450268
Insert M5 X 0.8.
100h
207662046
Hex. Flanged Screw M6 X 20.
100j
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
100k
518329454
Oil Plate.
100m
250000767
Torx Truss Screw M6 X 12.
10a
518330738
Deep Black, RH Footrest Reinforcement.
10aa
293150147
Hemlock Rivet.
10b
518331523
Deep Black, LH Footrest Reinforcement.
10c
518329622
RH Suspension Bracket.
10d
518329621
LH Suspension Bracket.
10e
518331253
Stirrup Reinforcement.
10f
518331560
Deep Black, LH Chasssis Reinforcement.
10g
518328451
RH Roller.
10h
518328452
LH Roller.
10m
415130286
Chassis Tunnel Module 137
10p
518328990
Rear Cap.
10q
518330691
RH Footrest.
10r
293730047
Black Dart 8 mm.
10s
293730060
Black Dart 10 mm.
10t
293730052
Black, Plug.
10u
518331559
LH Foot Protector.
10v
293150203
Rivet AVIBULB 3/16.
10x
293150096
Hemlock Rivet, 6.5 mm.
10y
293150119
Hemlock Rivet, 6.5 mm.
10z
293150174
Hemlock Rivet, 6.4 mm.
110
293150147
Hemlock Rivet.
1100
518329370
Upper Colomn Support.
1120
233261416
Elastic Flanged Nut M6 X 1.0.
1130
207662556
Hex. Flange Screw M6 X 25.
1140
207662046
Hex. Flanged Screw M6 X 20.
1150
207562556
Hex. Flanged Screw M6 X 25, Scotch Grip.
120
293150174
Hemlock Rivet, 6.4 mm.
1200
518329755
Center Column Support.
125
293150120
Hemlock Rivet 6.5 mm.
130
233281414
Hex. Flanged Elastic Nut M8.
1300
518330033
Rear Bumper.
140
207662046
Hex. Flanged Screw M6 X 20.
150
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
170
293450267
Insert M5 - 0.8.
1700
518329982
Front Protector.
1710
293150108
Pop Rivet 3/16”.
1750
518329980
Rear Protector. TR15X137X1.5IR. Includes 1750 to 1750a.
1750a
293830005
Rubber Bumper. TR15X137X1.5IR.
1760
518329981
Front Support Protector. TR15X137X1.5IR.
1770
250000577
Torx Truss Screw K40 X 12. TR15X137X1.5IR.
180
207661646
Hex. Flange Screw M6 X 16.
1800
518329979
Rear Protector.
1800a
293830005
Rubber Bumper.
1820
520001545
Support.
1830
250000577
Torx Truss Screw K40 X 12.
1840
293150108
Pop Rivet 3/16”.
20
293730052
Black, Plug.
230
207562034
Hex. Flanged Screw M6 X 20, Scotch Grip.
25
250100199
Insert Half Hex Body M6 x 1.0.
30
506151252
Washer.
3000
518330358
Black Toe-hold.
300a
512060295
Rubber Mount.
3010
518329134
Toe Hold.
3020
250000793
Hex. Flanged Screw M6 X 25.
3030
207562054
Flanged Hex. Screw S.GRIP M6 X 20.
3050
210262550
Hex. Flanged Forming Screw M6 X 25.
310
250001060
Screw-Pan HD.Torx M8X30.
350
518331740
LH Front Chassis Reinforcement.
400
518330570
S Module.
410
250001051
Screw-Forming Hex.HD.FL. M6 X 16.
420
207663544
Hex. Flanged Screw M6 X 35.
430
233261414
Hex. Flanged Elastic Nut M6 x 1.0.
440
293150147
Hemlock Rivet.
50
518330278
Heat Shield.
55
293450275
Insert.
60
250000717
Torx Head Screw M6 X 16.
70
250000942
Hex Screw M8 X 30.
80
234081410
Flat Washer 8 mm.
800
518329480
Member Fixation Plate.
815
293150203
Rivet AVIBULB 3/16.
900
518330060
Left Member Black Assembly. Includes 900 to 900a.
910
518330880
RH Member Black Assembly.
920
250000887
Pan Head Torx Screw M8 X 12.
