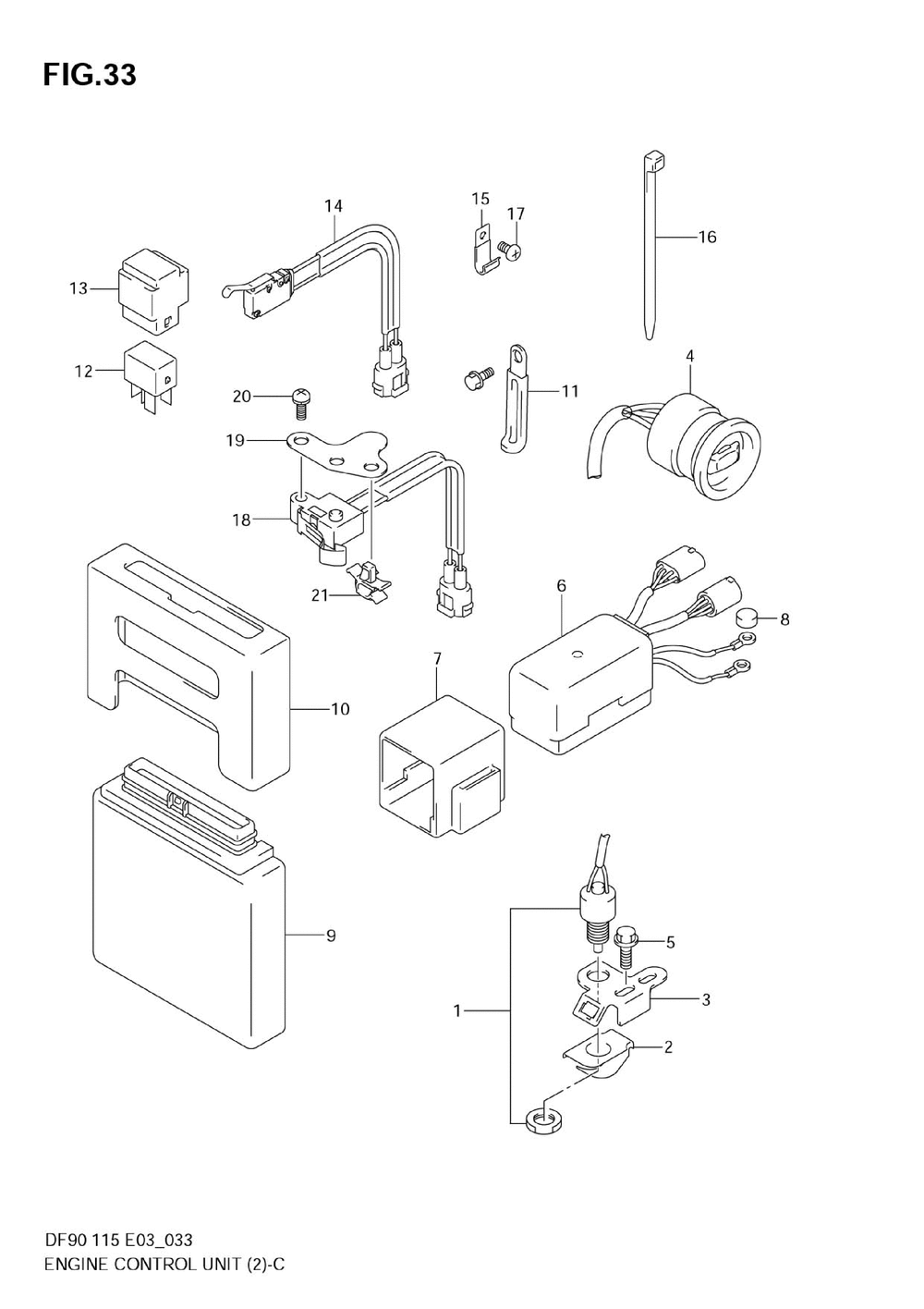

Ptt switch/engine control unit (model:04~09)

Suzuki Marine DF100/DF115
Suzuki Marine
#oem кодцена
1
37721-99E11
Switch Assy, Neu (df90:~680685 Df115:~681517 )
2
37725-95600
Actuator, Neutra (df90:~680685 Df115:~681517 )
3
37726-90J00
Bracket, Neutral (df90:~680685 Df115:~681517 )
4
37850-99E03
Switch Assy, Ptt ( )
5
01550-06167
.bolt, Remocon Cable Holder (df90:~680685 Df115:~681517 )
6
38410-93J10
Relay Assy, Ptt ( )
7
38415-93J00
Holder, Ptt Rela ( )
8
09251-09002
.cap ( )
9-1
33920-90J94
Unit, Engine Con (df90 )
9-4
33920-90JD0
Unit, Engine Con (df100 )
9-5
33920-90JB4
Unit, Engine Con (df115 )
10
33925-87J00
Cushion, Engine ( )
11
29404-93J10
Clamp (<-09404-06432 )
12
38860-76F01
Relay Assy ( )
13
38915-90J00
Holder, Relay ( )
14-1
37722-93J11
Switch Assy, Til ( )
15
09403-09316
Clamp (df90:~680685 Df115:~681517 )
16-1
09407-14407
.clamp, Harness (l:140) (df90:680686~ Df100 )
17
01550-06127
Bolt (df90:~680685 Df115:~681517 )
18
37721-93J00
Switch Assy, Neu (df90:680686~ Df100 )
19
37726-90J10
Bracket, Neutral (df90:680686~ Df100 )
20
09137-04004
Screw, 4x16 (df90:680686~ Df100 )
4
37850-99E04
Switch Assy, Ptt ( )
6
38410-93J11
Relay Assy, Ptt ( )
