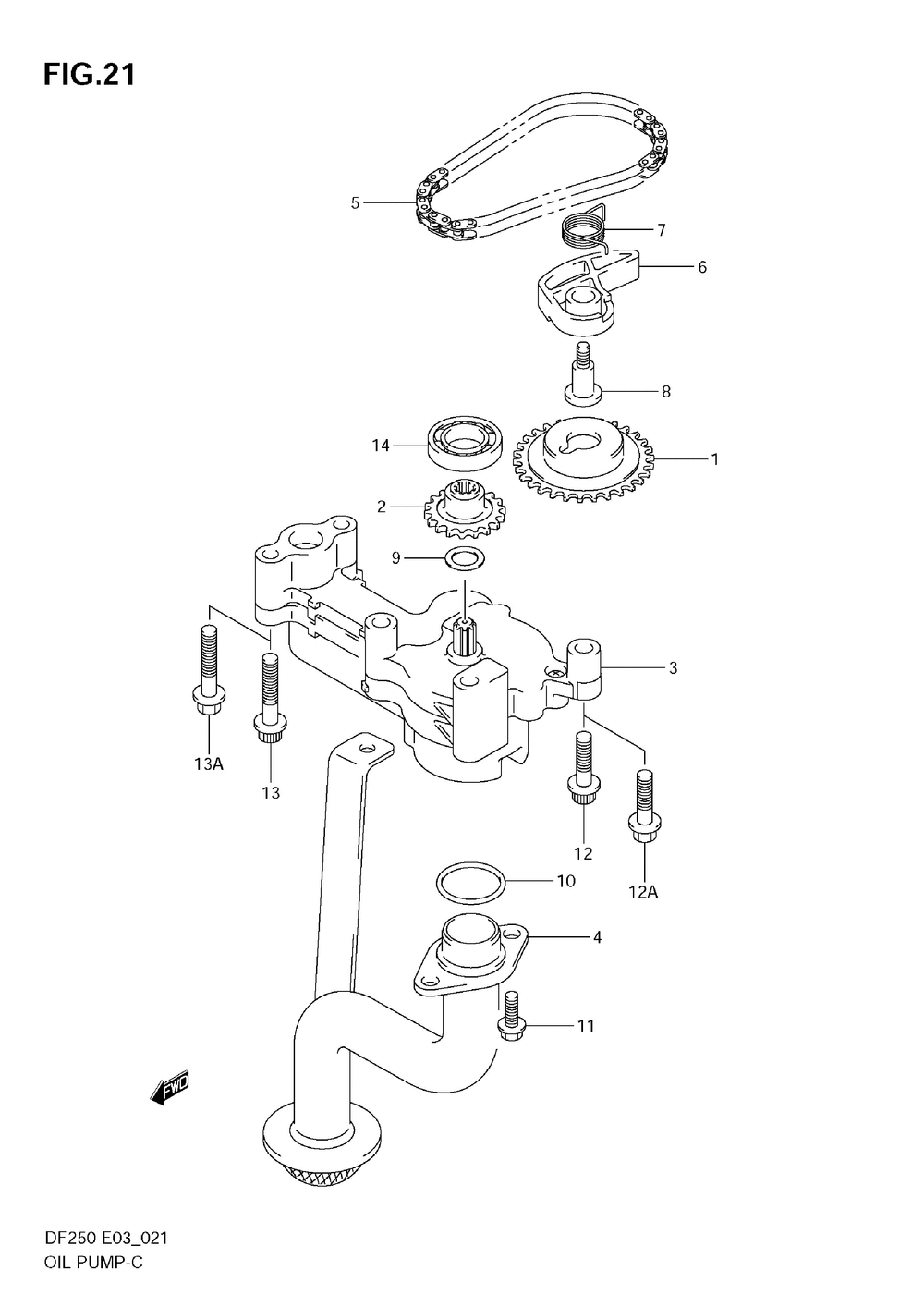

МАСЛЯНЫЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF200/DF225/DF250
МАСЛЯНЫЙ НАСОС
МАСЛЯНЫЙ НАСОС

МАСЛЯНЫЙ НАСОС

Suzuki Marine DF200/DF225/DF250

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1

Sprocket, Oil Pu

Sprocket, Oil Pu

2

Sprocket, Oil Pu

Sprocket, Oil Pu

3-1

Pump Assy, Oil (->16400-93j02 Used W/01550-0885a )

Pump Assy, Oil (->16400-93j02 Used W/01550-0885a )

4

Strainer Comp, O

Strainer Comp, O

5

Chain, Oil Pump

Chain, Oil Pump

6

Tensioner, Oil P

Tensioner, Oil P

7

Spring, Oil Pump

Spring, Oil Pump

8

Bolt, Oil Pump T

Bolt, Oil Pump T

9

Washer (12x20x0.5)

Washer (12x20x0.5)

10-1

O Ring (d:2.4, Id:21.8) (df200t:680909~ Df250s )

O Ring (d:2.4, Id:21.8) (df200t:680909~ Df250s )

11

Болт

Болт

12A

Bolt, Oil Pump (s) (df200t:780655~ Df250s )

Bolt, Oil Pump (s) (df200t:780655~ Df250s )

13-1

Болт

Болт

13-2

Bolt (model:07 Df250z:~780343 )

Bolt (model:07 Df250z:~780343 )

13A-1

Bolt, Oil Pump (l) (df200t:881427~ Df250z:880640~ )

Bolt, Oil Pump (l) (df200t:881427~ Df250z:880640~ )

13A-3

.bolt (df200t:881427~ Df250z:880640~ )

.bolt (df200t:881427~ Df250z:880640~ )

14

.bearing

.bearing
