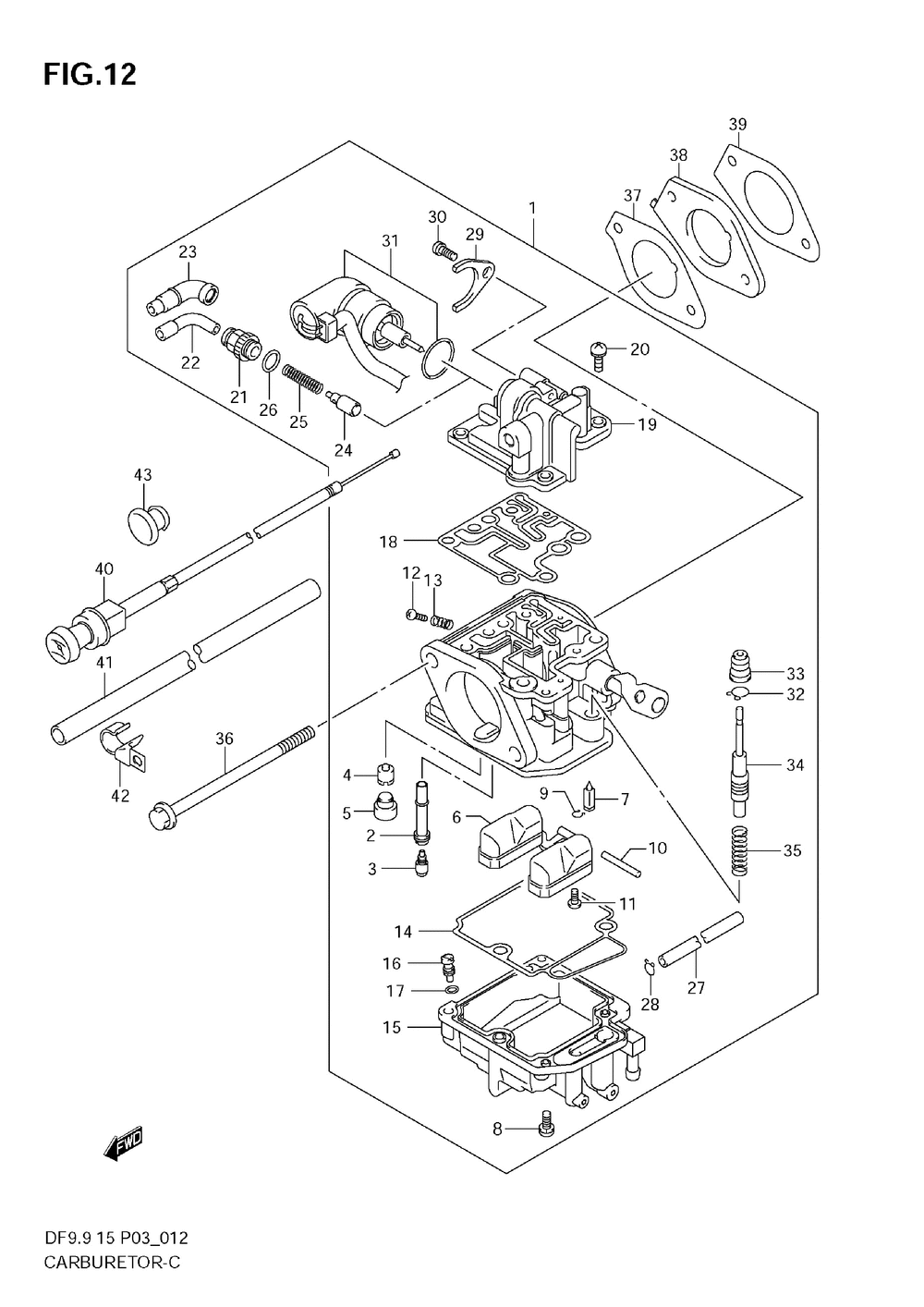

Карбюратор (модели 2005-2009 года)
Карбюратор (модели 2005-2009 года)

Карбюратор (модели 2005-2009 года)

Suzuki Marine DF9.9/DF15

oem код

название

цена

1-1

13200-94J20

Carburetor Assy (df9.9/9.9th)

1-2

13200-94J30

Carburetor Assy (df9.9r/9.9t)

1-3

13200-94J60

Carburetor Assy (df15)

2-1

13236-94J10

Nozzle, Main (df9.9)

2-2

13236-94J00

Nozzle, Main (df15)

3-1

09491-70017

.jet, Main (70) (df9.9)

3-2

09491-23029

Jet, Main 115 (df15)

4-1

09492-38009

.jet, Pilot (38) (df9.9)

4-2

Jet, Pilot 40 (df15)

Cap, Rubber

Поплавок

Valve Comp, Floa

Винт

.clip

Палец

Винт

Винт запорный

Пружина

Gasket, Float Ch

15-1

13245-94J00

Chamber, Float (df9.9/9.9th Inc.no.14~17, 27, 28 )

15-2

13245-94J10

Chamber, Float (df9.9r/9.9t Inc.no.14~17, 27, 28 )

15-3

13245-94J20

Chamber, Float (df15 Inc.no.14~17, 27, 28 )

13279-94J00

Винт

13523-94J00

Кольцо

13345-94J00

U Ring

19-1

13346-94J00

Cover (df9.9/9.9th)

19-2

13346-94J10

Cover (df9.9r/9.9t)

19-3

13346-94J20

Cover (df15)

13361-94J00

Holder, Cable (df9.9/9.9th/15)

13362-94J00

Guide, Cable (df9.9/9.9th/15)

13363-94J00

Cap, Cable Seali (df9.9/9.9th/15)

13364-94J00

Valve, Starter (df9.9/9.9th/15)

13365-94J00

Spring (df9.9/9.9th/15)

13295-14G00

.o Ring (df9.9/9.9th/15)

Трубка

Зажим

.plate (df9.9r/9.9t)

Screw (df9.9r/9.9t)

Starter Assy (df9.9r/9.9t)

Clip (df15)

Cap, Rubber (df15)

Plunger (df15)

Spring (df15)

Болт

Gasket, Carburet

Insulator, Carbu

Gasket, Insulato

Knob Assy, Start (df9.9/9.9th/15)

18498-94J00

Protector, Start (df9.9/9.9th/15)

09403-12318

Clamp (df9.9/9.9th/15)

59252-94J00

Plug, Starter Kn (df9.9r/9.9t)

15-3

13240-94J20

Chamber Assy, Fl (df15 Inc.no.14~17, 27, 28 )
