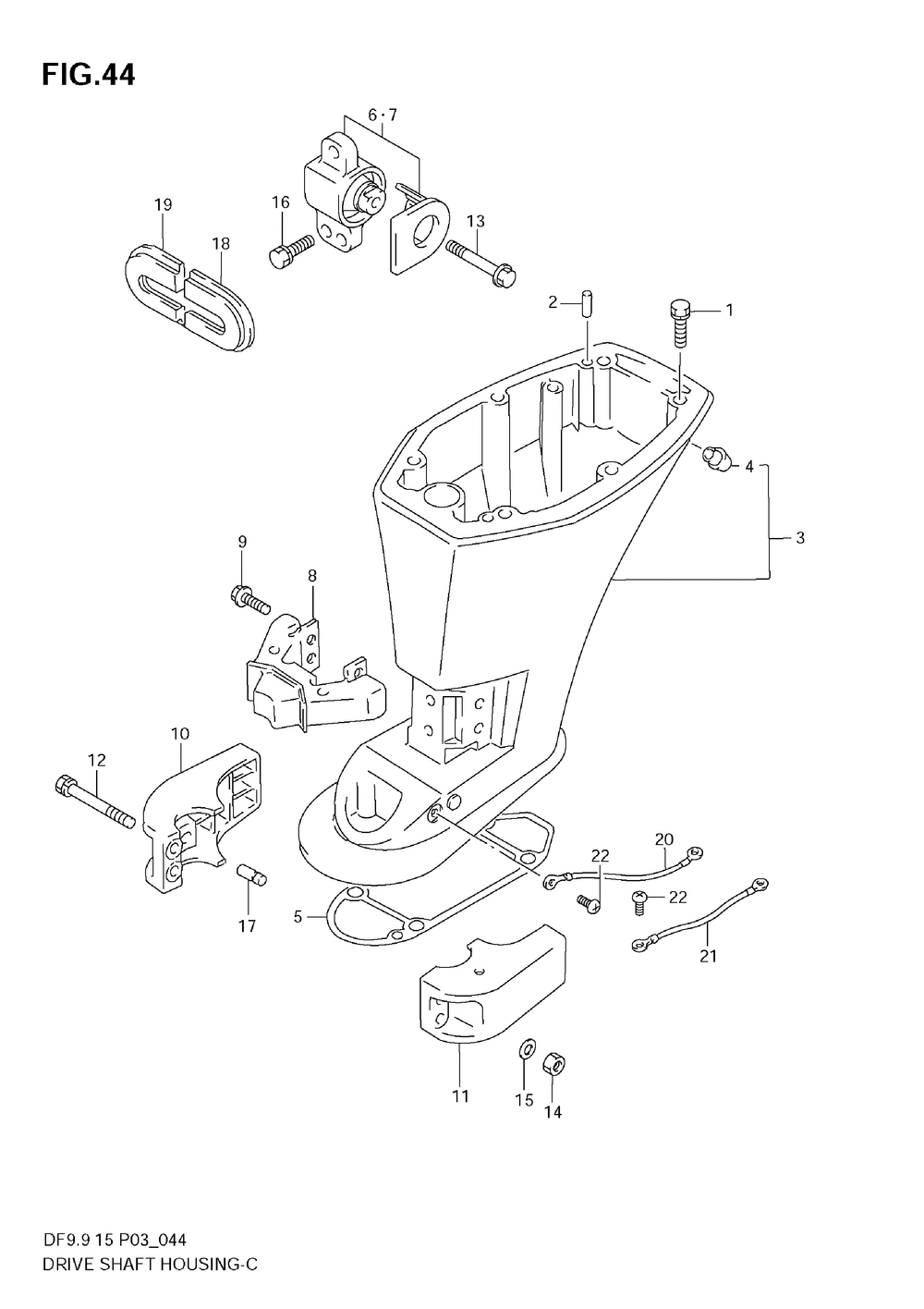

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF9.9/DF15
Suzuki Marine
#oem кодцена
1
09116-08122
.bolt, Handle Cover (8x30)
2
09202-06023
Штифт
3-1
52110-93E50-0EP
Housing, Drive S
3-2
52110-93E40-0EP
Housing, Drive S
3-3
52110-94J00-0EP
Housing Comp, Dr (model:05~09)
4
43112-99E00
Pipe, Exhaust
5
55113-93E00
Gasket, Gear Cas (<-55113-94j00)
6
54180-93E01
Mount Comp, Uppe
7
54190-93E01
Mount Comp, Uppe
8
54160-93E02
Mount, Lower
9
09116-08137
Bolt, 8x22 (<-09116-08121)
10-1
54211-93E05-0EP
Cover, Lower Mou
10-2
54211-94J00-0EP
Cover, Lower Mou (model:05~09)
11-1
54221-93E05-0EP
Cover, Lower Mou
11-2
54221-94J00-0EP
Cover, Lower Mou (model:05~09)
12
09116-08138
Bolt, 8x40 (<-09116-08128)
14
29141-93J10
Nut (<-09140-08023)
15
09160-08082
Washer (8.5x16x1.2) (<-09160-08148)
17
54213-93901
Pin, Lower Mount
18-1
54144-93E10
Seal Upper, Mou
18-2
54144-94J00
Seal, Upper Moun (model:05~09)
19-1
54145-93E10
Seal, Upper Moun
19-2
54145-94J00
Seal, Upper Moun (model:05~09)
20
36894-95201
Lead, Clamp To S
21
36895-87D01
Lead, Swivel To
22
29125-93J10
Screw (<-09125-05050 Refer To Fig.45(g- 3) For Type:t/th )
