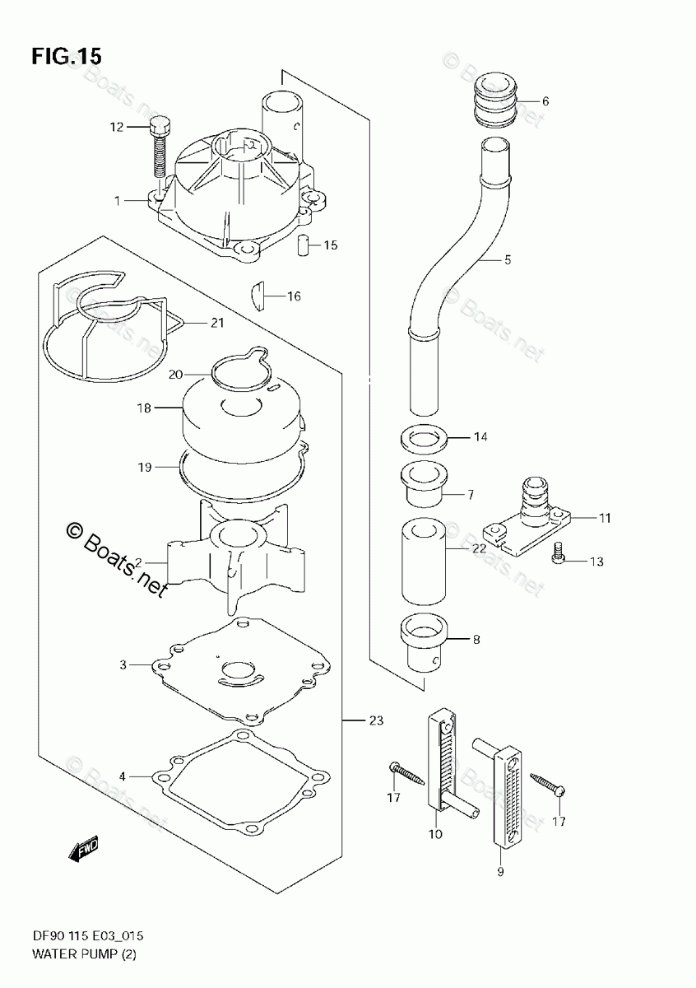

Water Pump (DF90T:680686-,DF115T:681518-,DF115Z,DF100T)

Suzuki Marine DF 115TXZK9
Suzuki Marine
#oem кодцена
1-2
17410-92J00
CASE, WATER PUMP *{DF100:981305~ DF115T:983179~ DF115Z:980056~}*
1-1
17411-92J00
CASE, WATER PUMP *{DF100:~981304 DF115T:~983178 DF115Z:~980055 ->17410-92J00 USED WITH 17416-92J10}*
2
17461-90J01
IMPELLER, WATER PUMP
3
17471-92J00
PANEL, PUMP CASE UNDER
4
17472-87E10
GASKET, PUMP CASE PANEL
5-2
17561-90J12
TUBE, WATER (X)
5-1
17561-90J02
TUBE, WATER (L)
6
17562-90J00
BUSH, WATER TUBE UPPER
7
17563-87D00
BUSH, WATER TUBE LOWER
8
17564-87D00
BUSH, WATER PUMP CASE
9
17631-90J00
FILTER, WATER PORT SIDE
10
17632-90J00
FILTER, WATER STBD SIDE
11
17635-90J00
PLUG, SUB WATER TUBE
12
09116-08131
BOLT (8X45)
13
09125-05046
SCREW (5X12)
14
09161-16008
WASHER
15
09202-06031
PIN, KNOCK
16
09420-05009
KEY
17
09132-04034
SCREW (4X18)
18
17413-92J01
SLEEVE, WATER PUMP CASE
19
17416-92J00
SEALING, WATER PUMP CASE NO.1 *{DF100:~981304 DF115T:~983178 DF115Z:~980055}*
20
17417-92J00
SEALING, WATER PUMP CASE NO.2 *{DF100:~981304 DF115T:~983178 DF115Z:~980055}*
21
17416-92J10
SEALING, WATER PUMP CASE *{DF100:981305~ DF115T:983179~ DF115Z:980056~}*
22
17612-90J00
SPACER, WATER TUBE *{TYPE:X}*
23-2
17400-92J21
WATER PUMP REPAIR KIT *{OPT DF100:981305~ DF115T:983179~ DF115Z:980056~}*
23-1
17400-92J00
WATER PUMP REPAIR KIT *{OPT}*
