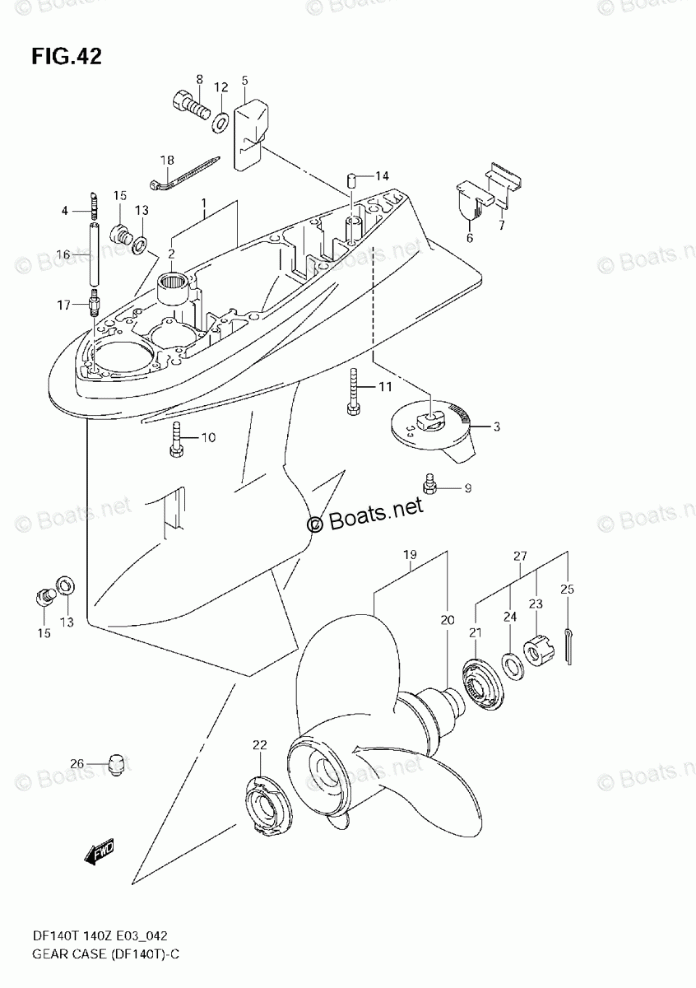

Gear Case (DF140T)
Gear Case (DF140T)

Gear Case (DF140T)

Suzuki Marine DF140ZXK9

oem код

название

цена

CASE, GEAR (BLACK)

BEARING, PINION

TAB, TRIM

UNION, SPEEDOMETER HOSE

ANODE, GEAR CASE

RUBBER, EXHAUST SEAL

PLATE, EXHAUST SEAL

BOLT (6X12)

BOLT, TRIM TAB (8X22)

10-2

09116-10150

BOLT (10X55) *{MODEL:04~}*

10-1

BOLT (10X55)

BOLT (10X80)

WASHER (6.5X15X1.0)

GASKET, DRAIN PLUG

PLUG, DRAIN

16-2

09355-40805-00B

HOSE *{TYPE:X L:2000->1100}*

16-1

09355-40805-00B

HOSE *{TYPE:L L:2000->940 L:2000->1100 MODEL:08~}*

09362-09008

NIPPLE

09407-14407

CLAMP

19-5

58100-90J41-019

PROPELLER (3X13.5X15)

19-2

58100-90J11-019

PROPELLER (3X14X19)

19-1

58100-90J01-019

PROPELLER (3X14X17)

19-3

58100-90J21-019

PROPELLER (3X14X21)

19-4

58100-90J31-019

PROPELLER (3X14X23)

19-9

58200-90J30

PROPELLER (3X14.25X24) *{NOT FOR US MARKET}*

19-8

58200-90J20

PROPELLER (3X14.25X22) *{NOT FOR US MARKET}*

19-7

58200-90J10

PROPELLER (3X14.25X20) *{NOT FOR US MARKET}*

19-6

58200-90J00

PROPELLER (3X14.25X18) *{NOT FOR US MARKET}*

58120-90J00

BUSH

57633-90J02

SPACER, PROPELLER

57635-92J01

STOPPER, PROPELLER BUSH

NUT

WASHER (18.5X31X1.0)

COTTER PIN (L:25)

PLUG *{OPT}*

KIT, PROPELLER NUT *{OPT}*

25700-92J00

SEALING KIT, GEAR CASE *{OPT NOT SHOWN}*

SPECIAL-NOTE

REFER TO FIG.43(G- 4) FOR DF140Z
