Opt:Top Mount Dual (1) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 225TXZK9 (2009)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF 225TXZK9

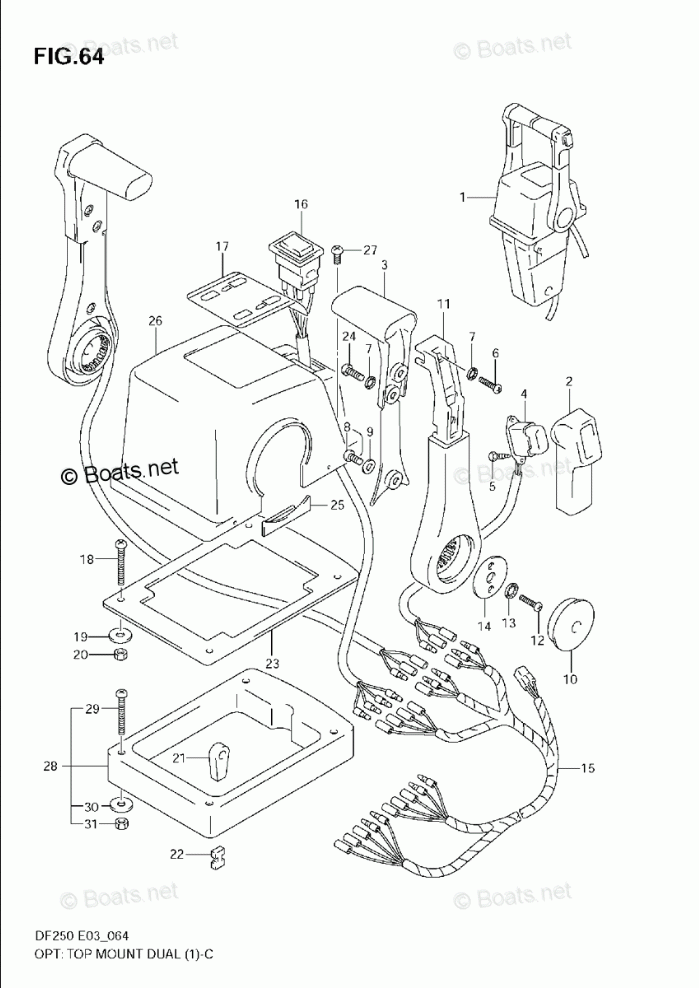

Opt:Top Mount Dual (1)
Opt:Top Mount Dual (1)

Opt:Top Mount Dual (1)

Suzuki Marine DF 225TXZK9

oem код

название

цена

1-1

67200-93J20

REMOTE CONTROL ASSY *{->67200-93J21}*

1-3

67200-93J22

REMOTE CONTROL ASSY

1-2

67200-93J21

REMOTE CONTROL ASSY *{->67200-93J22}*

2-2

67261-93J00

GRIP, NO.1 *{FOR 67200-93J21 67200-93J22}*

2-1

67261-92E00

GRIP, NO.1

3-1

67263-92E00

GRIP, NO.2

3-2

67263-93J00

GRIP, NO.2 *{FOR 67200-93J21 67200-93J22}*

4-2

37850-93J10

SWITCH ASSY, PTT *{FOR 67200-93J21 67200-93J22}*

4-1

SWITCH ASSY, PTT

SCREW

SCREW

WASHER

SCREW

WASHER

CAP, LEVER

11-2

67251-93J00

LEVER, HANDLE *{FOR 67200-93J21 67200-93J22}*

11-1

LEVER, HANDLE

SCREW

WASHER

WASHER

WIRE HARNESS

SWITCH ASSY, MODE CHANGING

17-1

67282-92E00

DECAL

17-2

67282-93J00

DECAL *{FOR 67200-93J21 67200-93J22}*

SCREW

WASHER

NUT

END, CABLE

SPACER

GROMMET

SCREW

COVER

COVER

SCREW *{FOR 67200-93J22}*

67500-93J10

KIT, REMOCON SPACER TWIN

09125-05135

SCREW

09160-05029

WASHER

09140-05005

NUT
