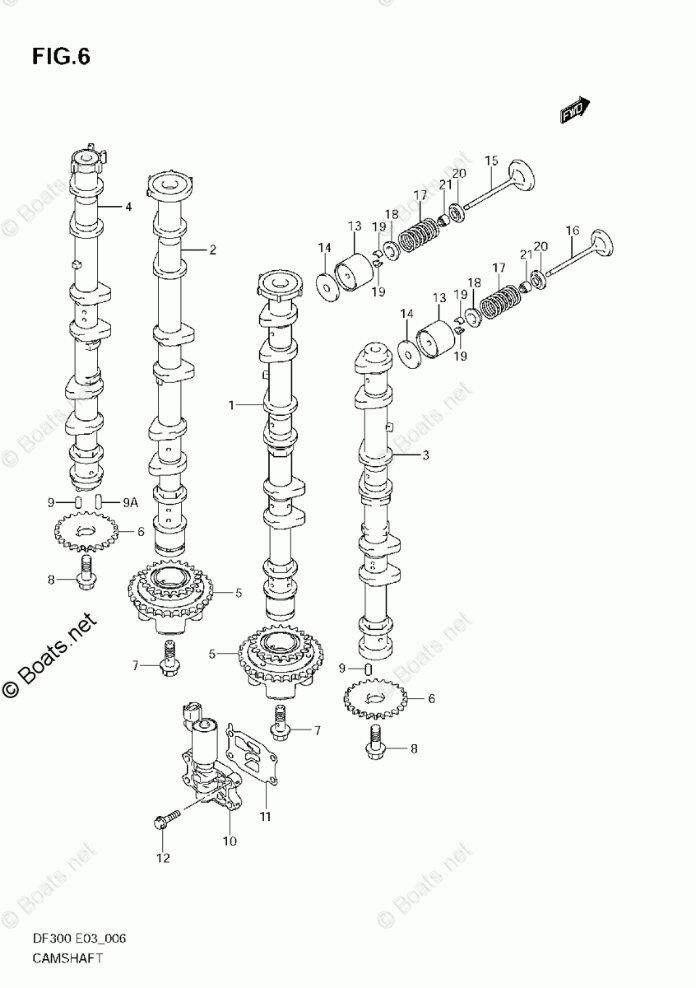

РАСПРЕДВАЛ

Suzuki Marine DF 300TXK9
Suzuki Marine
#oem кодцена
1-2
12701-98J10
CAMSHAFT, INTAKE STBD *{MODEL:09~}*
1-1
12701-98J00
CAMSHAFT, INTAKE STBD
2-1
12705-98J00
CAMSHAFT, INTAKE PORT
2-2
12705-98J10
CAMSHAFT, INTAKE PORT *{MODEL:09~}*
3-1
12721-98J00
CAMSHAFT, EXH STBD
3-2
12721-98J10
CAMSHAFT, EXH STBD *{MODEL:09~}*
4-1
12729-98J00
CAMSHAFT, EXH PORT
4-3
12729-98J20
CAMSHAFT, EXH PORT *{DF300T:110001~ DF300Z:110001~}*
4-2
12729-98J10
CAMSHAFT, EXH PORT *{MODEL:09~}*
5
12740-93J00
SPROCKET ASSY, CAM TIMING
6
12748-93J00
SPROCKET, EXH CAMSHAFT
7
12753-93J00
BOLT, INTAKE CAMSHAFT
8
12749-93J00
BOLT, CAMSHAFT EXHAUST
9-1
09202-05032
PIN, TIMING
9A
09261-05006
PIN, TIMING *{DF300T:880690~ DF300Z:880360~}*
9-2
09202-05032
PIN, TIMING *{DF300T:880690~ DF300Z:880360~}*
10
16550-93J00
VALVE, OIL CONTROL
11
16555-93J00
GASKET, VALVE
12
01550-06257
BOLT, VALVE
13
12891-93J00
TAPPET
14-1
12892-93J00-218
SHIM, TAPPET
14-27
12892-93J00-283
SHIM, TAPPET
14-2
12892-93J00-220
SHIM, TAPPET
14-23
12892-93J00-273
SHIM, TAPPET
14-24
12892-93J00-275
SHIM, TAPPET
14-25
12892-93J00-278
SHIM, TAPPET
14-26
12892-93J00-280
SHIM, TAPPET
14-28
12892-93J00-285
SHIM, TAPPET
14-20
12892-93J00-265
SHIM, TAPPET
14-29
12892-93J00-288
SHIM, TAPPET
14-30
12892-93J00-290
SHIM, TAPPET
14-31
12892-93J00-293
SHIM, TAPPET
14-32
12892-93J00-295
SHIM, TAPPET
14-33
12892-93J00-298
SHIM, TAPPET
14-34
12892-93J00-300
SHIM, TAPPET
14-21
12892-93J00-268
SHIM, TAPPET
14-22
12892-93J00-270
SHIM, TAPPET
14-19
12892-93J00-263
SHIM, TAPPET
14-9
12892-93J00-238
SHIM, TAPPET
14-3
12892-93J00-223
SHIM, TAPPET
14-4
12892-93J00-225
SHIM, TAPPET
14-5
12892-93J00-228
SHIM, TAPPET
14-18
12892-93J00-260
SHIM, TAPPET
14-7
12892-93J00-233
SHIM, TAPPET
14-8
12892-93J00-235
SHIM, TAPPET
14-6
12892-93J00-230
SHIM, TAPPET
14-10
12892-93J00-240
SHIM, TAPPET
14-11
12892-93J00-243
SHIM, TAPPET
14-13
12892-93J00-248
SHIM, TAPPET
14-14
12892-93J00-250
SHIM, TAPPET
14-15
12892-93J00-253
SHIM, TAPPET
14-16
12892-93J00-255
SHIM, TAPPET
14-17
12892-93J00-258
SHIM, TAPPET
14-12
12892-93J00-245
SHIM, TAPPET
15
12911-98J00
VALVE, INTAKE
16
12915-93J10
VALVE, EXHAUST
17
12921-93J10
SPRING, VALVE
18
12931-78G00
RETAINER, VALVE SPRING
19
12932-24400
COTTER, VALVE
20
12933-69G10
SEAT, VALVE SPRING
21
09289-05012
SEAL, VALVE STEM
