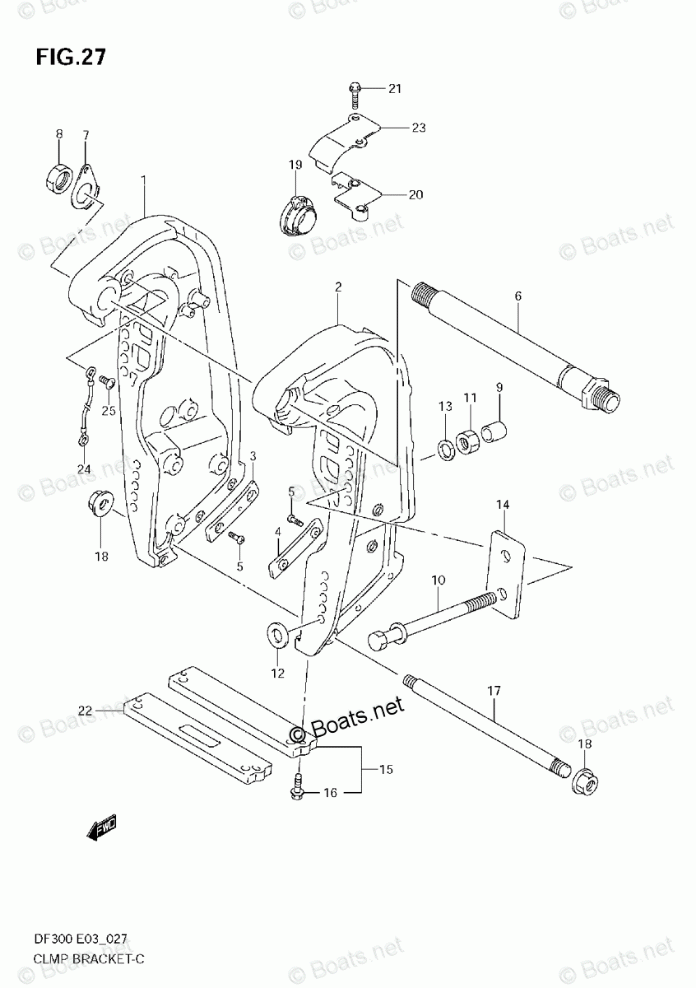

КРОНШТЕЙН КРЕПЛЕНИЯ К ТРАНЦУ

Suzuki Marine DF 300TXXK9
Suzuki Marine
#oem кодцена
1-3
41111-93J14-0EP
BRACKET, CLAMP STBD (BLACK) *{MODEL:10~}*
1-2
41111-93J12-0EP
BRACKET, CLAMP STBD (BLACK) *{DF300T:980090~ DF300Z:980032~}*
1-1
41111-93J11-0EP
BRACKET, CLAMP STBD (BLACK) *{->41111-93J12-0EP USED W/41117-93J01}*
2-1
41121-93J03-0EP
BRACKET, CLAMP PORT (BLACK) *{->41121-93J04-0EP USED W/41122-93J01}*
2-2
41121-93J04-0EP
BRACKET, CLAMP PORT (BLACK) *{DF300T:980090~ DF300Z:980032~}*
2-3
41121-93J05-0EP
BRACKET, CLAMP PORT (BLACK) *{MODEL:10~}*
2-4
41121-93J06-0EP
BRACKET, CLAMP PORT *{DF300T:110001~ DF300Z:110001~}*
3-1
41117-93J00
PLATE, CLAMP BRKT LOWER STBD
3-2
41117-93J01
PLATE, CLAMP BRKT LOWER STBD *{DF300T:980090~ DF300Z:980032~}*
4-2
41122-93J01
PLATE, CLAMP BRKT LOWER PORT *{DF300T:980090~ DF300Z:980032~}*
4-1
41122-93J00
PLATE, CLAMP BRKT LOWER PORT
5
09125-06063
SCREW, 6X10
6-1
41130-93J02
SHAFT, CLAMP BRKT
6-2
41130-93J10
SHAFT, CLAMP BRKT *{MODEL:10~}*
7-1
41135-93J10
WASHER, CLAMP BRACKET SHAFT
7-2
41135-93J11
WASHER, CLAMP BRACKET SHAFT *{MODEL:10~}*
8
09159-22006
NUT, CLAMP BRACKET SHAFT
9
41153-93J00
CAP, TRANSOM BOLT
10-3
09100-12085
BOLT, TRANSOM (12.7X115) *{OPT}*
10-1
09100-12086
BOLT, TRANSOM (12.7X150)
10-2
09100-12092
BOLT, TRANSOM (12.7X75) *{OPT}*
11
09159-12062
NUT, TRANSOM BOLT (12.7X19)
12
09160-13017
WASHER, TRANSOM (13.2X45X5)
13
09160-13016
WASHER, TRANSOM (13.2X26X3)
14
41155-93J01
PLATE, TRANSOM
15
55320-94900
ZINC SET, PROTECTION
16
09116-06121
BOLT (6X25)
17
45421-87D01
PIN, TILT LOCK
18
09159-14020
NUT
19
48140-93J00
CAM, TILT LIMIT SWITCH
20
48144-93J00
HOLDER, TILT LIMIT SWITCH
21
09103-06278
BOLT, SW HOLDER (6X20)
22
55321-94910
ANODE (MAGNESIUM) *{OPT}*
23
48145-93J00
COVER, TILT LIMIT SWITCH
24
36894-87D00
LEAD (CLAMP TO SWIVEL)
25
09125-06063
SCREW (CLAMP TO SWIVEL LEAD)
