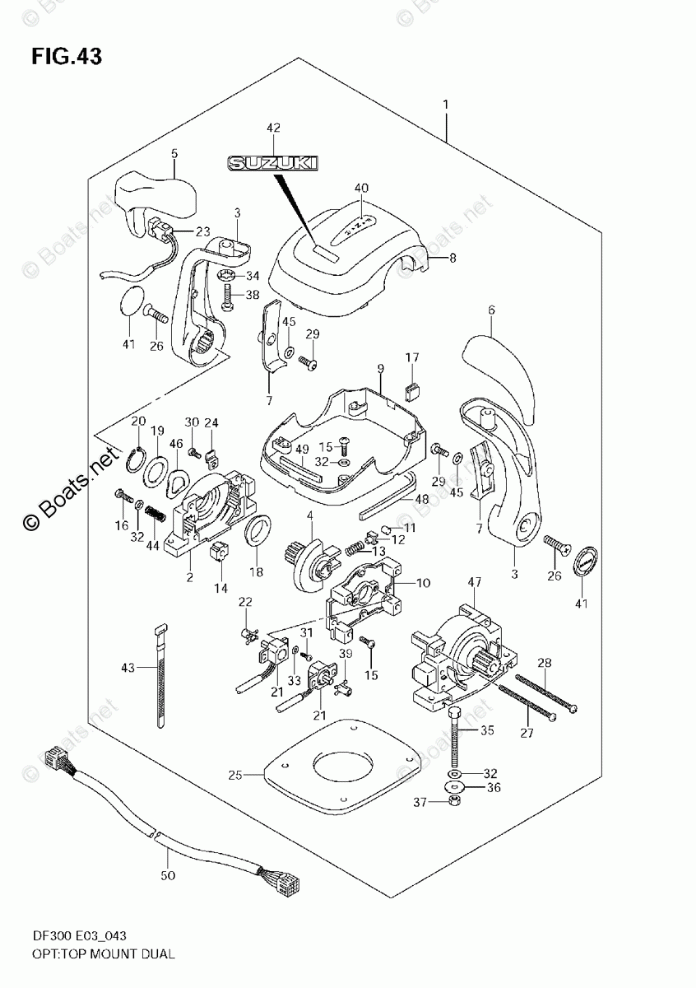

Suzuki Marine DF 300TXXK9

oem код

название

цена

REMOTE CONTROL ASSY

HOUSING (L)

LEVER, HANDLE

SHAFT, DRIVE

GRIP, NO.1

GRIP, NO.2

COVER, LEVER

COVER, UPPER

COVER, BOTTOM

PANEL ASSY, BACK

ROOLER, DETENT

GUIDE, DETENT ROOLER

SPRING, DETENT

PAD, BRAKE

SCREW, BOTTOM COVER

SCREW, BRAKE ADJUSTMENT

GROMMET, COVER

BUSH, DRIVE SHAFT

WASHER

C-RING

POTENTIOMETER

LEVER, POTENTIOMETER NO.2

SWITCH ASSY, PTT

CLAMP, LEAD

PACKING

SCREW (8X30)

SCREW (5X70)

SCREW (5X80)

SCREW, LEVER COVER

SCREW, CLAMP

SCREW

WASHER, BOTTOM COVER

WASHER, POTENTIOMETER

WASHER

BOLT

WASHER (5.5X16X1.5)

NUT

SCREW (8X30)

LEVER, POTENTIOMETER NO.1

MARK (F-N-R)

MARK, LEVER (SUZUKI)

EMBLEM (SUZUKI)

BAND

WASHER, SPRING

WASHER, LEVER COVER

WASHER, WAVE

HOUSING (R)

PACKING, FRONT

PACKING, REAR

50-2

36620-98J10

WIRE ASSY, REMOTE CONTROL *{L:9500}*

50-1

36620-98J00

WIRE ASSY, REMOTE CONTROL *{L:6500}*

SPECIAL-NOTE

REFER TO FIG.44(I- 8) FOR MODEL:08 LATER~
