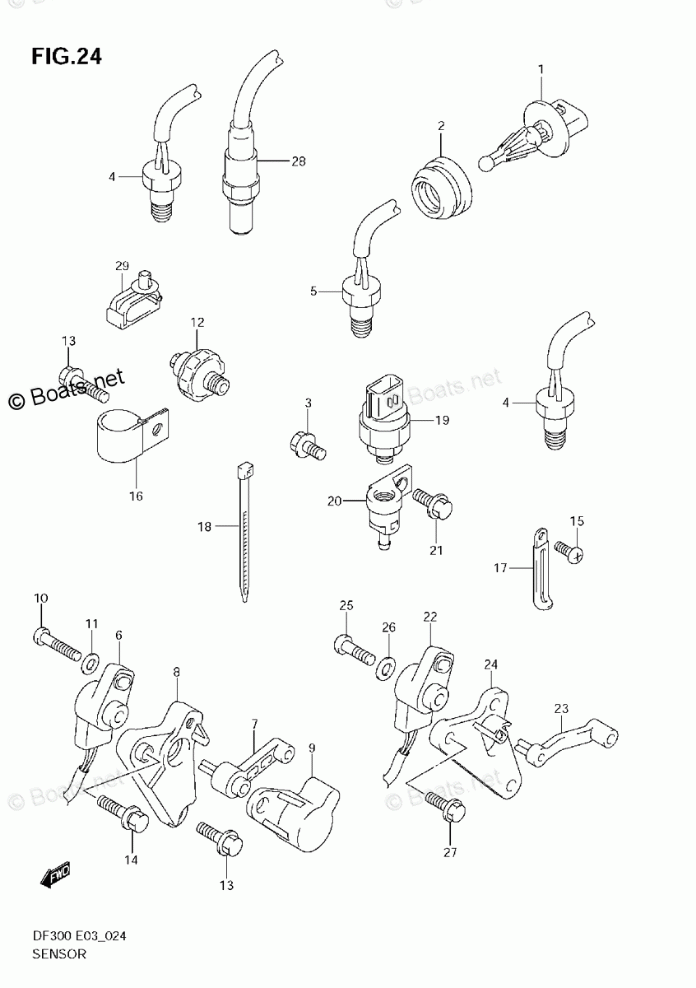

SENSOR

Suzuki Marine DF 300TXXZK9
Suzuki Marine
#oem кодцена
1
13650-52G00
SENSOR, INLET AIR TEMP
2
13655-87J00
GROMMET, AIR TEMP SENSOR
3
29103-93J00
BOLT, PTT MOTOR LEAD CLAMP
4
34830-87J20
SENSOR ASSY, EXHAUST TEMP
5
34830-87J20
SENSOR ASSY, CYLINDER TEMP
6
34840-98J01
SENS0R ASSY, TRIM *{~MODEL:10}*
7
34841-98J00
LEVER, TRIM SENSOR *{~MODEL:10}*
8
34845-98J00
BRACKET, TRIM SENSOR *{~MODEL:10}*
9
34846-98J00
BRACKET, TRIM SENSOR LEVER *{~MODEL:10}*
10
34847-98J00
SCREW, TRIM SENSOR *{~MODEL:10}*
11
09160-05029
WASHER, TRIM SENSOR *{~MODEL:10}*
12
37820-99E01
SWITCH ASSY, OIL PRESSURE
13
29103-93J10
BOLT, TRIM SENSOR BRACKET *{~MODEL:10}*
14
09116-06121
BOLT, TRIM SENSOR BRACKET *{~MODEL:10}*
15
09125-06063
SCREW, PTT MOTOR LEAD CLAMP
16
09403-19409
CLAMP, PTT MOTOR LEAD
17
29404-93J10
CLAMP, PTT MOTOR LEAD
18
09407-14407
CLAMP, TRIM SENDOR LEAD WIRE
19
34960-98J00
SENSOR ASSY, SPEED
20
34115-98J00
CONNECTOR, WATER HOSE
21
01550-06207
BOLT, CONNECTOR
22
34840-98J01
SENS0R ASSY, TRIM *{DF300T:110001~ DF300Z:110001~}*
23
34841-88L00
LEVER, TRIM SENSOR *{DF300T:110001~ DF300Z:110001~}*
24
34845-88L00
BRACKET, TRIM SENSOR *{DF300T:110001~ DF300Z:110001~}*
25
09125-05048
SCREW, TRIM SENSOR *{DF300T:110001~ DF300Z:110001~}*
26
09160-05029
WASHER, TRIM SENSOR *{DF300T:110001~ DF300Z:110001~}*
27
29103-93J10
BOLT, TRIM SENSOR BRACKET *{DF300T:110001~ DF300Z:110001~}*
28
18213-98J00
SENSOR, OXYGEN *{DF300T:110001~ DF300Z:110001~}*
29
09403-07340
CLAMP, PTT CABLE *{DF300T:110001~ DF300Z:110001~}*
