Engine Cover (Model :10-) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 300TXXZK9 (2009)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF 300TXXZK9

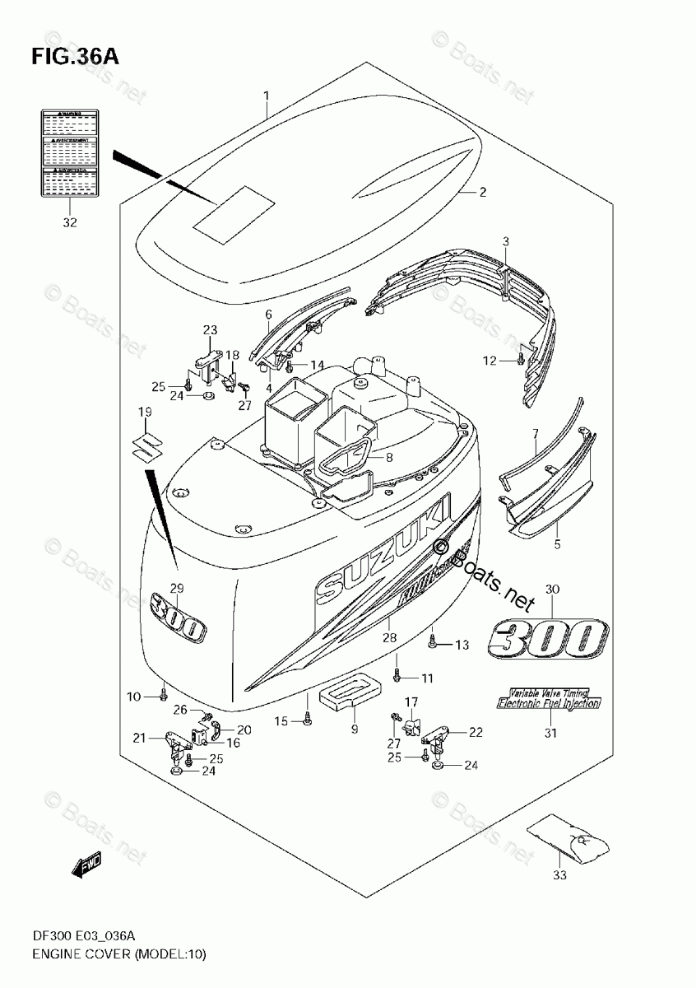

Engine Cover (Model :10-)
Engine Cover (Model :10-)

Engine Cover (Model :10-)

Suzuki Marine DF 300TXXZK9

oem код

название

цена

61400-98Y43-0EP

COVER SET, ENGINE (BLACK)

61431-98J01-0EP

COVER, TOP

61432-98J01

LOUVER, AIR INTAKE

61433-98J01

GRIP, UPPER COVER STBD

61434-98J01

GRIP, UPPER COVER PORT

SEAL, GRIP STBD

SEAL, GRIP PORT

SEAL, AIR VENT NO.2

SEAL, AIR VENT NO.1

BOLT, ENGINE COVER TOP

BOLT, ENGINE COVER

BOLT, LOUVER UPPER

BOLT, LOUVER LOWER

BOLT, HANDLE UPPER

BOLT, HANDLE LOWER

FASTENER (FRONT)

FASTENER (PORT)

FASTENER (STBD)

EMBLEM (S)

PROTECTOR, FASTENER

BRACKET, FASTENER FRONT

61624-98J10

BRACKET, FASTENER PORT

61625-98J10

BRACKET, FASTENER STBD

61619-98J00

CUSHION, ENG COV FASTENER

01547-06167

BOLT, FASTENER BRACKET

01550-06127

BOLT, ENG COV FASTENER

01550-06127

BOLT, ENG COV FASTENER

28-1

61443-93J31

STRIPE, ENGINE COVER STBD

28-2

61453-93J31

STRIPE, ENGINE COVER PORT

61422-98J11

MARK, EMBLEM FRONT (300)

61435-98J11

MARK, EMBLEM REAR (300)

61446-93J31

DECAL, EFI & VVT

61458-99E31

LABEL, ENGINE COVER

09800-81834

TOOL SET
