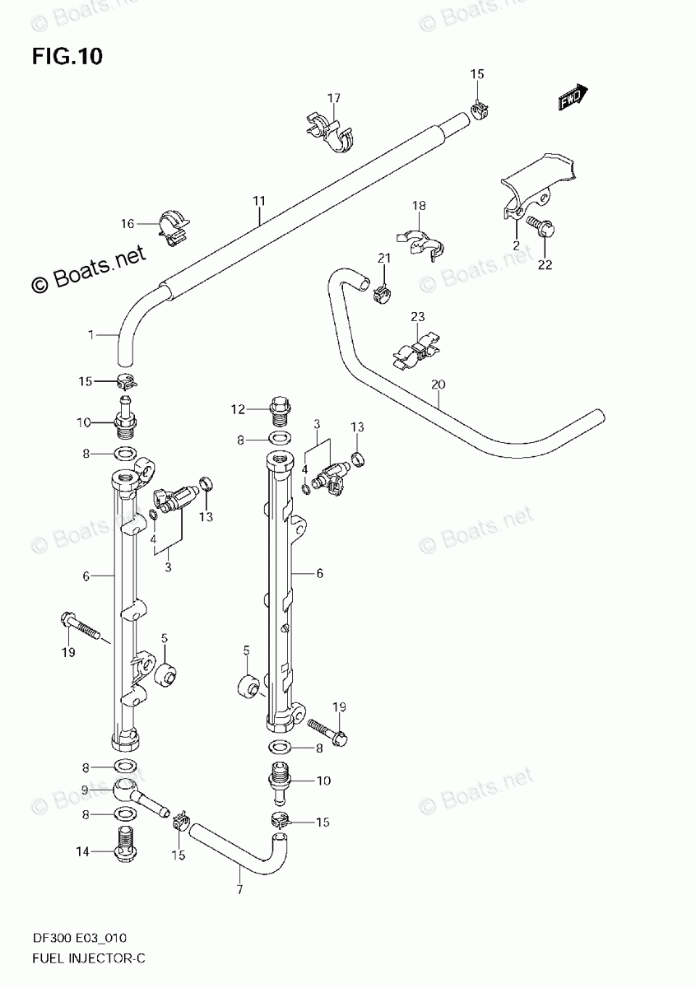

ТОПЛИВНЫЙ ИНЖЕКТОР

Suzuki Marine DF 300TXXZK9
Suzuki Marine
#oem кодцена
1
15681-93J01
HOSE, FUEL (3WAY TO DLVY PIPE
2
15684-98J00
GUIDE, FUEL HOSE
3
15710-96J00
INJECTOR ASSY, FUEL
4
15717-16G00
O RING
5
15735-58B00
INSULATOR, DELIVERY PIPE
6
15751-93J00
PIPE, DELIVERY
7
15756-93J01
HOSE, FUEL (DLVY TO DLVY)
8
15762-93J00
GASKET, DELIVERY PIPE
9
15830-77EA0
UNION, DELIVERY PIPE
10
15831-93J00
UNION, DELIVERY PIPE
11
18498-93J00
PROTECTOR, FUEL HOSE (L:340)
12
09247-14041
PLUG, DELIVERY PIPE
13
09320-08062
CUSHION, FUEL INJECTOR
14
09360-14009
BOLT, DELIVERY PIPE UNION
15
09401-11425
CLIP (EPI)
16
09403-16307
CLAMP
17
09408-00105
CLAMP
18
09408-00155
CLAMP
19
01550-08407
BOLT, DELIVERY PIPE
20-2
15680-93J10
HOSE, FUEL (PUMP TO FILTER) *{MODEL:08}*
20-3
15680-93J21
HOSE, FUEL (PUMP TO FILTER) *{MODEL:09~}*
20-1
15680-93J00
HOSE, FUEL (PUMP TO FILTER)
21
09401-13423
CLIP
22
01550-06107
BOLT, FUEL HOSE GUIDE
23
09408-00135
CLAMP, FUEL HOSE *{MODEL:08~}*
