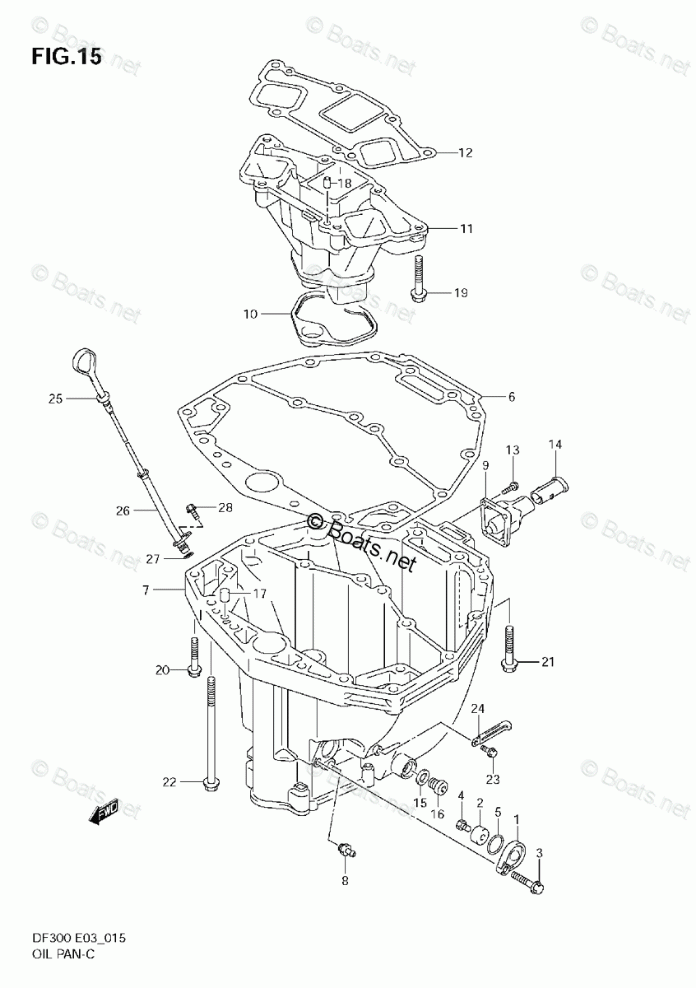

МАСЛЯНЫЙ ПОДДОН

Suzuki Marine DF 300TXZK9
Suzuki Marine
#oem кодцена
1
11261-93J00-0EP
COVER, PROTECTION ANODE
2-2
55321-87J10
ANODE (MAGNESIUM) *{OPT}*
2-1
55321-87J00
ANODE, PROTECTION
3
29103-93J30
BOLT, ANODE COVER
4
09103-06281
BOLT, ANODE
5
09280-22019
O RING, ANODE COVER
6
11489-93J00
GASKET, OIL PAN
7
11501-93J02-0EP
PAN, OIL
8
11591-93J00
UNION, OIL PAN
9
11541-93J00-0EP
PIPE, EXHAUST
10
14154-93J01
SEAL, EXHAUST TUBE
11
14211-98J00
TUBE, EXHAUST
12
14212-93J00
GASKET, EXHAUST TUBE
13
29116-93J00
BOLT, EXHAUST PIPE
14
11435-93J00
PIPE, EXHAUST RELEASE
15
09168-12012
GASKET, DRAIN (12.5X20X2.5)
16
09248-12009
PLUG, DRAIN
17
09202-08006
PIN, OIL PAN DOWEL
18
09202-08006
PIN, EXHAUST TUBE DOWEL
19
01550-1050A
BOLT, EXHAUST TUBE
20
09116-08128
BOLT, OIL PAN NO, 1 (L:40)
21
09116-10136
BOLT, OIL PAN NO, 2 (L:50)
22
09116-10146
BOLT, ENG SET NO, 3 (L:195)
23
29103-93J00
BOLT, SPEEDOMETER HOSE CLAMP
24
29404-93J10
CLAMP, SPEEDOMETER HOSE
25
16910-93J00
GAUGE, OIL LEVEL
26
16930-93J00
GUIDE, OIL LEVEL GAUGE
27
09280-09008
O RING, GAUGE GUIDE
28
01550-06127
BOLT, GAUGE GUIDE
