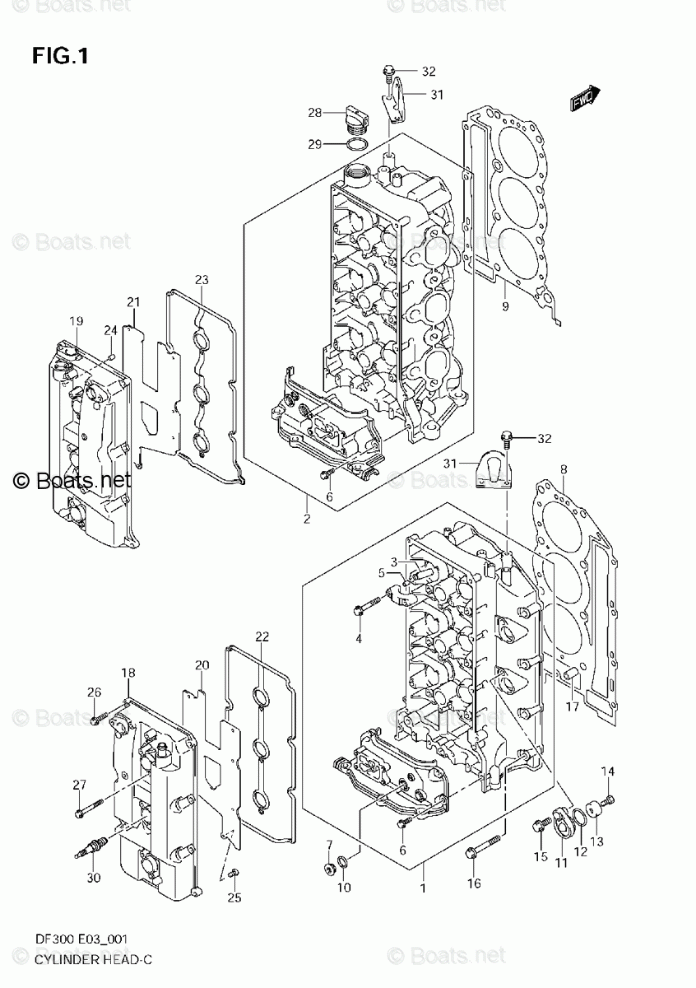

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF 300TXZK9
Suzuki Marine
#oem кодцена
1
11101-98J01
HEAD ASSY, CYLINDER STBD
2
11103-98J01
HEAD ASSY, CYLINDER PORT
3
11115-93J00-001
GUIDE, VALVE
4
11128-90J00
BOLT, CAM SHAFT HOUSING
5
09206-08001
PIN
6
01550-06207
BOLT
7
11116-93J01
PLUG
8-2
11141-98J10
GASKET, CYL HEAD STBD *{MODEL:10~}*
8-1
11141-98J01
GASKET, CYL HEAD STBD
9-2
11142-98J10
GASKET, CYL HEAD PORT *{MODEL:10~}*
9-1
11142-98J01
GASKET, CYL HEAD PORT
10
09168-16009
GASKET
11
11261-93J00
COVER, PROTECTION ANODE
12
09280-22019
O RING
13
55321-87J00
ANODE, PROTECTION
14
09103-06281
BOLT, PROTECTION ANODE
15
01550-08207
BOLT
16-2
01550-08607
BOLT, CYL HEAD PORT
16-1
01550-08607
BOLT, CYL HEAD STBD
17
09206-14004
PIN
18
11170-93J01
COVER, CYL HEAD STBD
19
11180-98J01
COVER, CYL HEAD PORT
20
11173-93J00
PLATE, BREATHER STBD
21
11183-93J00
PLATE, BREATHER PORT
22
11179-93J00
GASKET, CYL HEAD COVER STBD
23
11189-93J00
GASKET, CYL HEAD COVER PORT
24
09206-08001
PIN, CYL HEAD COVER PORT
25
02112-0612A
SCREW, BREATHER PLATE
26
01547-06257
BOLT, CYL HEAD COVER NO.1
27
01547-06507
BOLT, CYL HEAD COVER NO.2
28
11382-93J00
CAP, OIL FILLER
29
09280-26006
O RING, OIL FILLER CAP
30
09482-00427
SPARK PLUG (BKR6E)
31
11291-93J00
HOOK, ENGINE
32
01550-08207
BOLT, ENGINE HOOK
