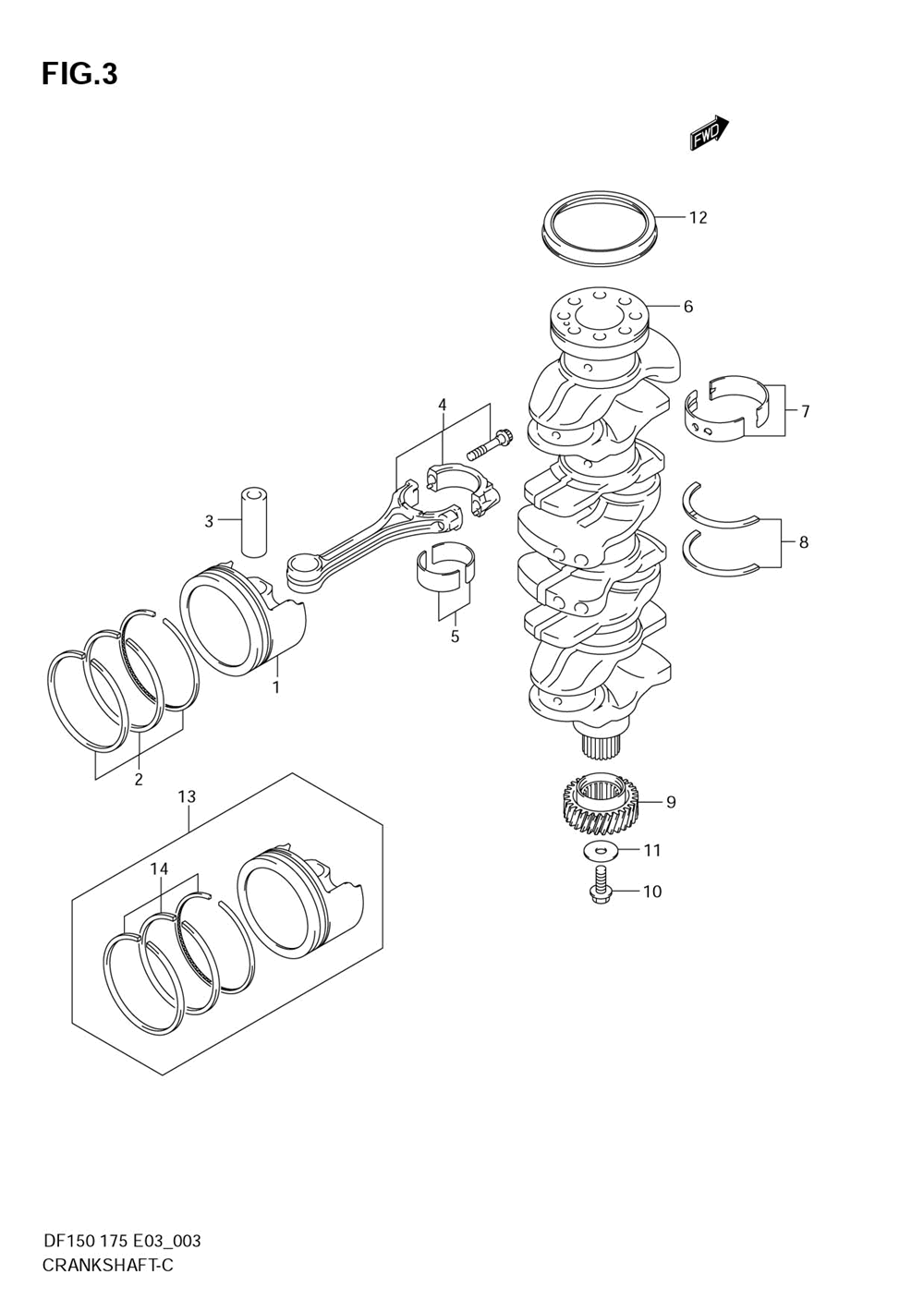

КОЛЕНЧАТЫЙ ВАЛ

Suzuki Marine DF150/DF175
Suzuki Marine
#oem кодцена
1
12111-96J00-0B0
Piston ()
2
12140-96J00
Ring Set, Piston ()
3
12151-96J00
Pin, Piston ()
4
12160-96J00
Connrod Assy ()
5-1
12100-96810-0A0
Bearing Set, Con ()
5-2
12100-96810-025
Bearing Set, Con (opt)
6-1
12221-96J00
Crankshaft ()
6-2
12221-96J10
Crankshaft (df150t:681545~df175t:681213~df150z:680210~df175z:680174~)
7-1
12340-96J00-0B0
Bearing Set, Cra ()
7-2
12340-96J00-0C0
Bearing Set, Cra ()
7-3
12340-96J00-0D0
Bearing Set, Cra ()
7-4
12340-96J00-0E0
Bearing Set, Cra ()
7-5
12340-96J00-0F0
Bearing Set, Cra ()
7-6
12300-96810-0BA
Bearing Set, Cra (us:0.25)
7-7
12300-96810-0CA
Bearing Set, Cra (us:0.25)
7-8
12300-96810-0DA
Bearing Set, Cra (us:0.25)
7-9
12300-96810-0EA
Bearing Set, Cra (us:0.25)
8-1
12300-85830
Bearing Set, Cra ()
8-2
12300-85830-012
Bearing Set, Cra (opt)
9
12242-96J00
Gear, Drive ()
10
09103-10229
Bolt, Crankshaft (10x32) ()
11
09160-10120
Washer, Crankshaft (10x42x3) ()
12
09283-91001
Seal, Crankshaft ()
13
12100-96J01-050
Piston Set, Os(0 (opt)
14
12140-96J00-050
Ring Set, Piston (opt)
