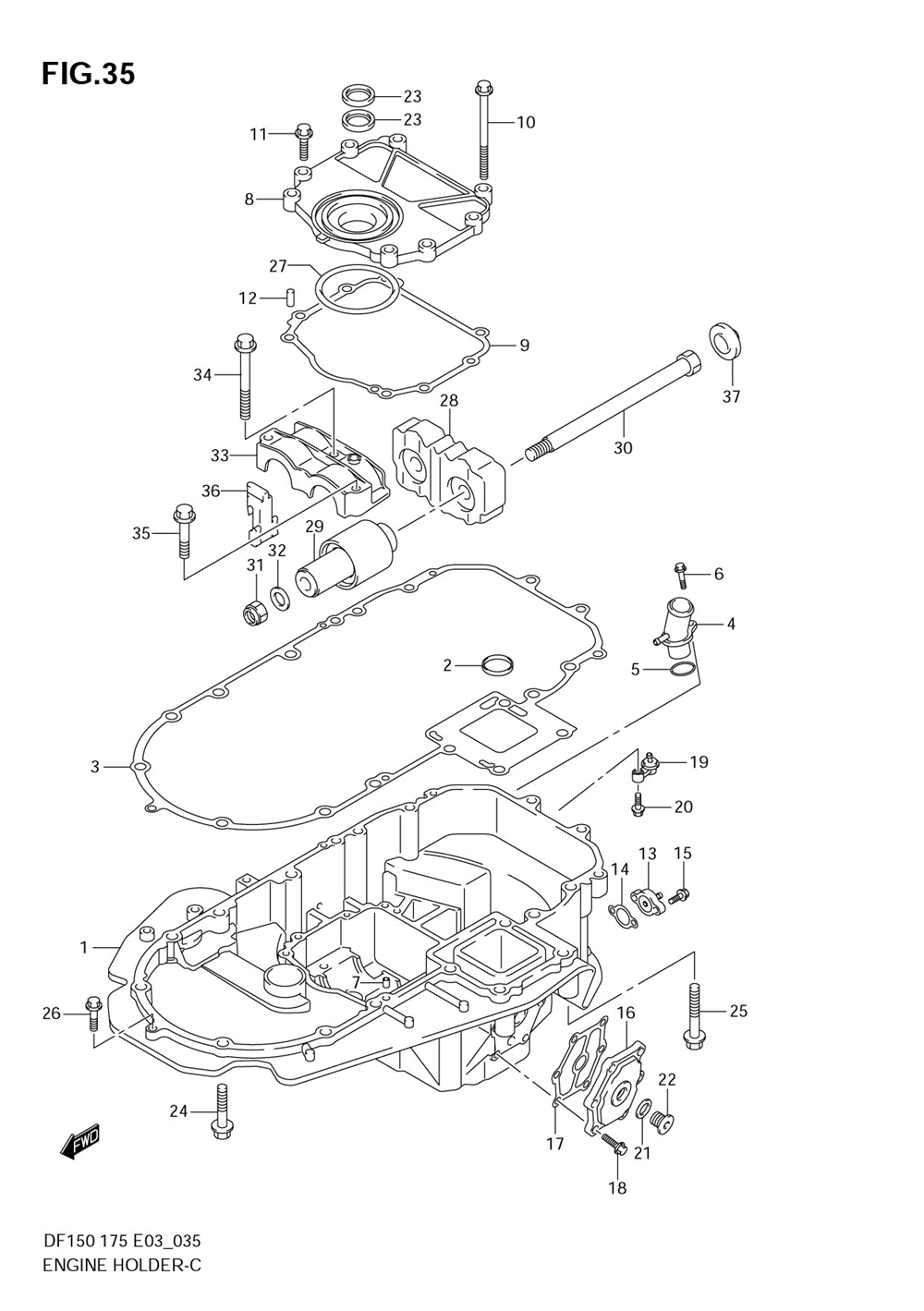

ОСНОВАНИЕ ДВИГАТЕЛЯ
ОСНОВАНИЕ ДВИГАТЕЛЯ

ОСНОВАНИЕ ДВИГАТЕЛЯ

Suzuki Marine DF150/DF175

ОСНОВАНИЕ ДВИГАТЕЛЯ

#

oem код

название

цена

1

51111-96J00-0EP

Holder, Engine ()

Holder, Engine ()

2

Seal, Engine Hol ()

Seal, Engine Hol ()

3

Gasket, Engine H ()

Gasket, Engine H ()

4

Union, Water Ret ()

Union, Water Ret ()

5

O Ring (d:3.1, Id:26.4) ()

O Ring (d:3.1, Id:26.4) ()

6

..bolt ()

..bolt ()

7

Pin ()

Pin ()

8

Cover, Mount Oil ()

Cover, Mount Oil ()

9

Gasket, Mount Oi ()

Gasket, Mount Oi ()

10

Bolt, Mount Oil Seal ()

Bolt, Mount Oil Seal ()

11

Bolt, Mount Oil Seal Cov ()

Bolt, Mount Oil Seal Cov ()

13

Cover Comp, Engi ()

Cover Comp, Engi ()

14

Gasket, Engine H ()

Gasket, Engine H ()

15

Болт

Болт

16

51161-96J00-0EP

Cover, Engine Ho ()

Cover, Engine Ho ()

17

Gasket, Eng Hldr ()

Gasket, Eng Hldr ()

18

Bolt (<-09103-06093)

Bolt (<-09103-06093)

19

Bracket Comp, Wa ()

Bracket Comp, Wa ()

20

.bolt (6x25) ()

.bolt (6x25) ()

21

.gasket (18.5x28x2.6) ()

.gasket (18.5x28x2.6) ()

22

.plug ()

.plug ()

23

Oil Seal ()

Oil Seal ()

24

Bolt, Oil Pan No ()

Bolt, Oil Pan No ()

25

Bolt, Eng Set No ()

Bolt, Eng Set No ()

26

Болт

Болт

27

O-ring, Holder(i ()

O-ring, Holder(i ()

28

Mount, Upper Thr ()

Mount, Upper Thr ()

29

Mount, Rubber ()

Mount, Rubber ()

30

Bolt, Upper Moun ()

Bolt, Upper Moun ()

31

Nut, Upper Mount ()

Nut, Upper Mount ()

32

Washer, Upper Mo ()

Washer, Upper Mo ()

33

Cover, Upper Mou ()

Cover, Upper Mou ()

34

Bolt, Upper Moun ()

Bolt, Upper Moun ()

36

Mount, Upper Sid ()

Mount, Upper Sid ()

37

Spacer, Upper Mo ()

Spacer, Upper Mo ()
