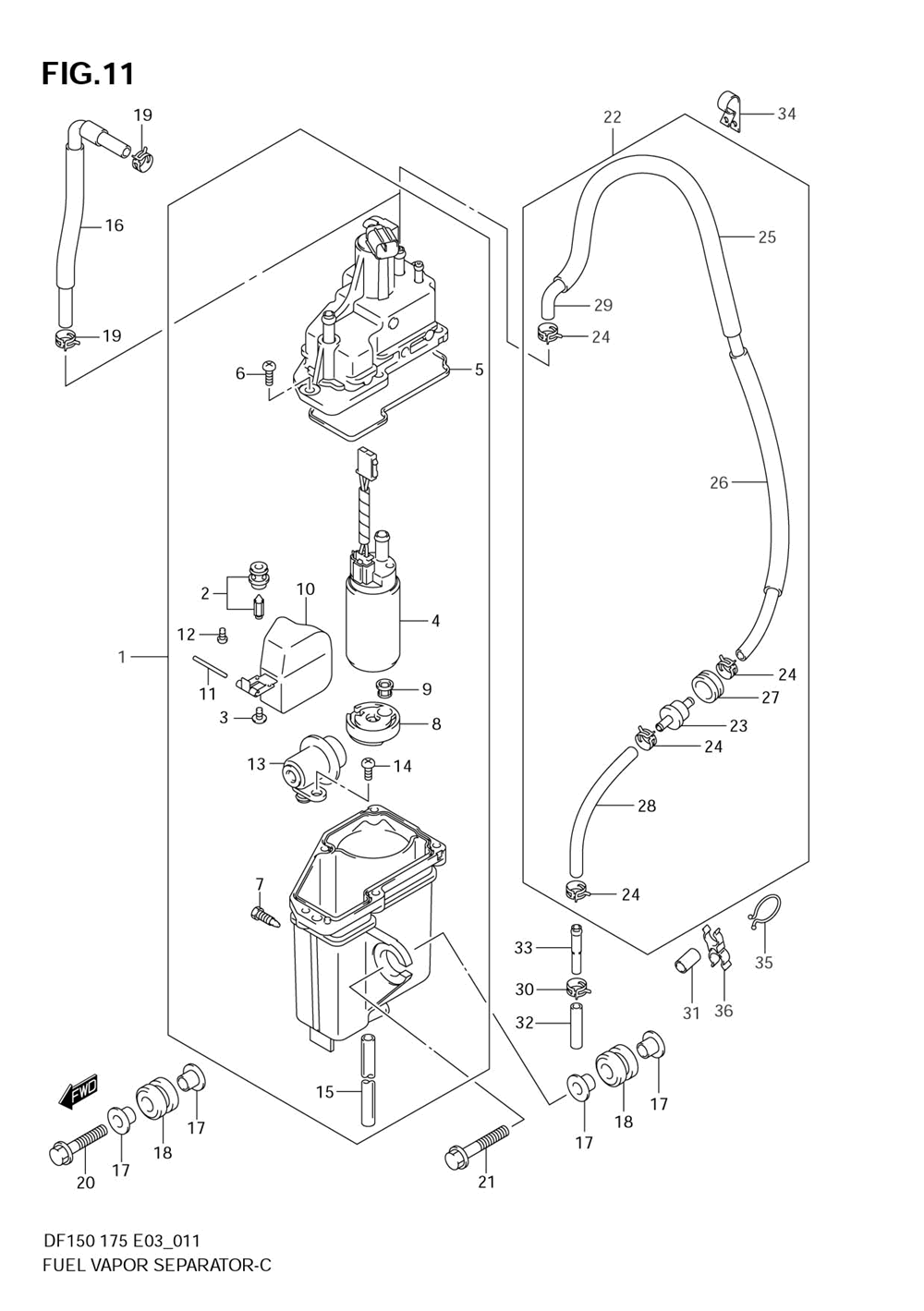

СЕПАРАТОР ТОПЛИВНЫХ ПАРОВ

Suzuki Marine DF150/DF175
Suzuki Marine
#oem кодцена
1
15600-96J00
Separator Assy, ()
2
13370-96J00
Valve, Needle ()
3
02142-0408B
Screw ()
4
15200-96J00
Pump Assy, Fuel( ()
5
15626-96J00
Seal ()
6
15628-99E00
Screw(l:15) ()
7
15629-99E10
Screw, Drain ()
8
15641-96J00
Spacer, Fuel Pum ()
9
15642-90J00
Filter ()
10
15650-96J00
Float ()
11
13254-01010
.pin ()
12
02112-0408A
Винт
13
15760-93J00
Regulator, Fuel ()
14
02112-05107
.screw, Regulator ()
15
15683-87J00
Hose ()
16
15660-96J00
Hose Comp, Evapo (df150t:~780700df175t:~780640df150z:~780143df175z:~780118)
17
09169-08042
Washer, Fuel Vapor Separator ()
18
09320-12072
Cushion, Fuel Va ()
19
09401-08412
Clip (df150t:~780700df175t:~780640df150z:~780143df175z:~780118)
20
01550-08357
Болт
21
01550-08407
Болт
22
15660-96J11
Hose Comp, Evap (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
23
15410-98500
Filter, Fuel (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
25
18498-87JC0
Protector(l:450 (df150t:780701~df175t:780641~df150z:780144~df175z:780119~l:450->300df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
27
09320-20008
Cushion (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
28
09352-50823-600
Hose (l:600->120df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
29
09352-50823-00B
Hose (l:2000->860df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
31
18498-96J40
Protector (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
33
09364-06010
Union (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
34
09403-13408
Clamp, Hose (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
35
09408-00008
Clamp (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
36
09408-00078
Clamp (df150t:780701~df175t:780641~df150z:780144~df175z:780119~)
