Распредвал для DF250 Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF200/DF225/DF250

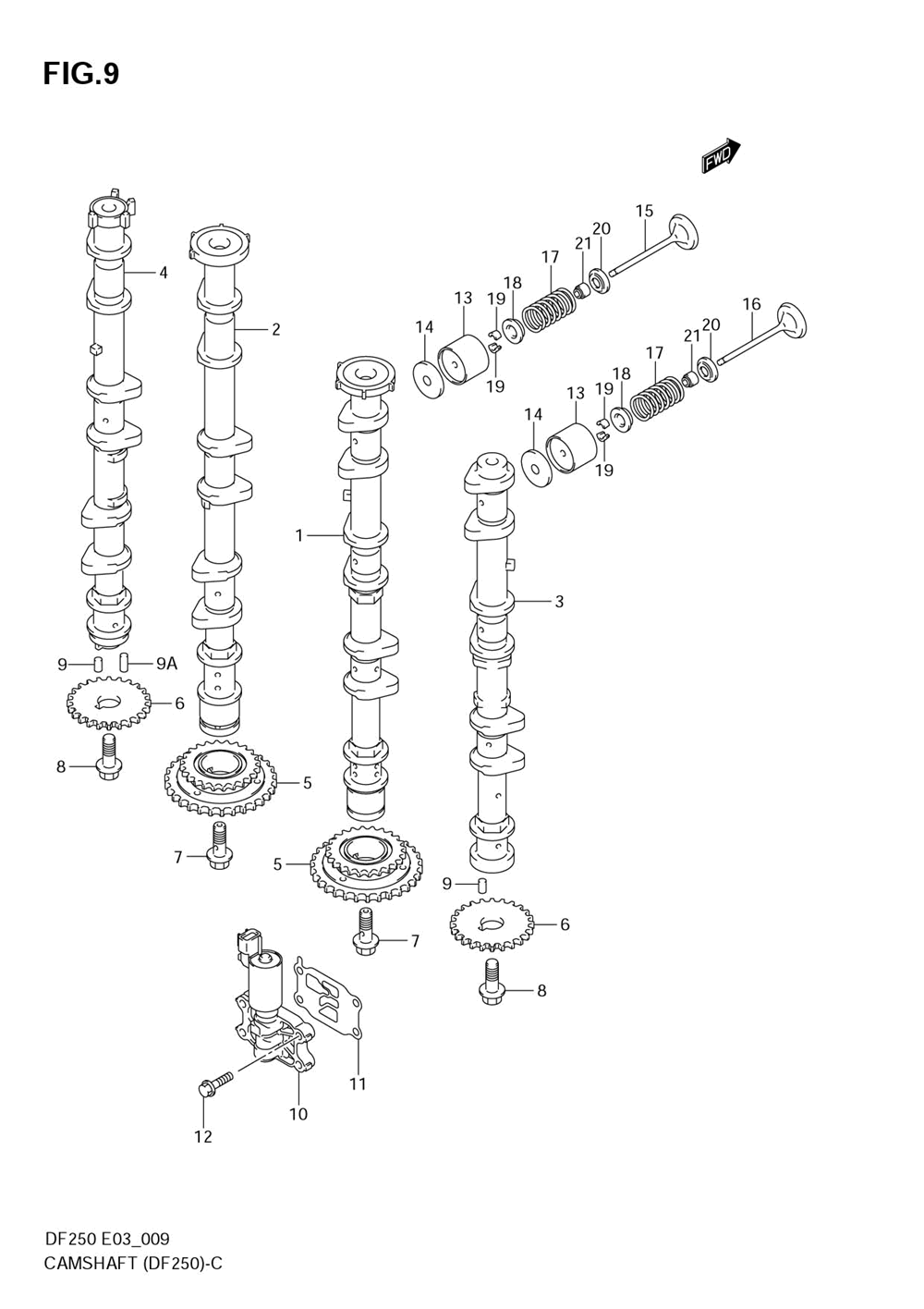

Распредвал для DF250
Распредвал для DF250

Распредвал для DF250

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

1-1

12701-93J20

Camshaft Comp, I ()

1-2

12701-98J00

Camshaft, Intk S (df250s)

2-1

12705-93J50

Camshaftcomp In ()

2-2

12705-98J00

Camshaft, Intk P (df250s)

3-1

12721-93J20

Camshaft, Exh St ()

3-2

12721-98J00

Camshaft, Exh St (df250s)

4-1

12729-93J20

Camshaft Comp, E ()

4-2

12729-98J00

Camshaft, Exh Po (df250s)

Sprocket Assy, C ()

Sprocket, Camsha ()

Bolt, Intk Camsh ()

Bolt, Camshaft ()

9-1

09202-05032

Pin, Camshaft Ti (df250t:880718~df250z:880324~df250s:880001~)

09261-05006

Pin (df250t:880718~df250z:880324~df250s:880001~)

Valve Comp, Oil ()

Gasket, Ovc ()

..bolt ()

Tappet ()

14-1

12892-93J00-218

Shim, Tappet(t:2 ()

14-2

12892-93J00-220

Shim, Tappet(t:2 ()

14-3

12892-93J00-223

Shim, Tappet(t:2 ()

14-4

12892-93J00-225

Shim, Tappet(t:2 ()

14-5

12892-93J00-228

Shim, Tappet(t:2 ()

14-6

12892-93J00-230

Shim, Tappet(t:2 ()

14-7

12892-93J00-233

Shim, Tappet(t:2 ()

14-8

12892-93J00-235

Shim, Tappet(t:2 ()

14-9

12892-93J00-238

Shim, Tappet(t:2 ()

15-1

12911-93J00

Valve, Intk ()

15-2

12911-98J00

Valve, Intk (df250s)

16-1

12915-93J00

Valve, Exh ()

16-2

12915-93J10

Valve, Exh (model:06~08)

17-1

12921-93J00

Spring, Valve ()

17-2

12921-93J10

Spring, Valve (model:08)

Retainer, Valve ()

Cotter, Valve ()

Seat, Valve Spri ()

Seal, Valve Stem ()
