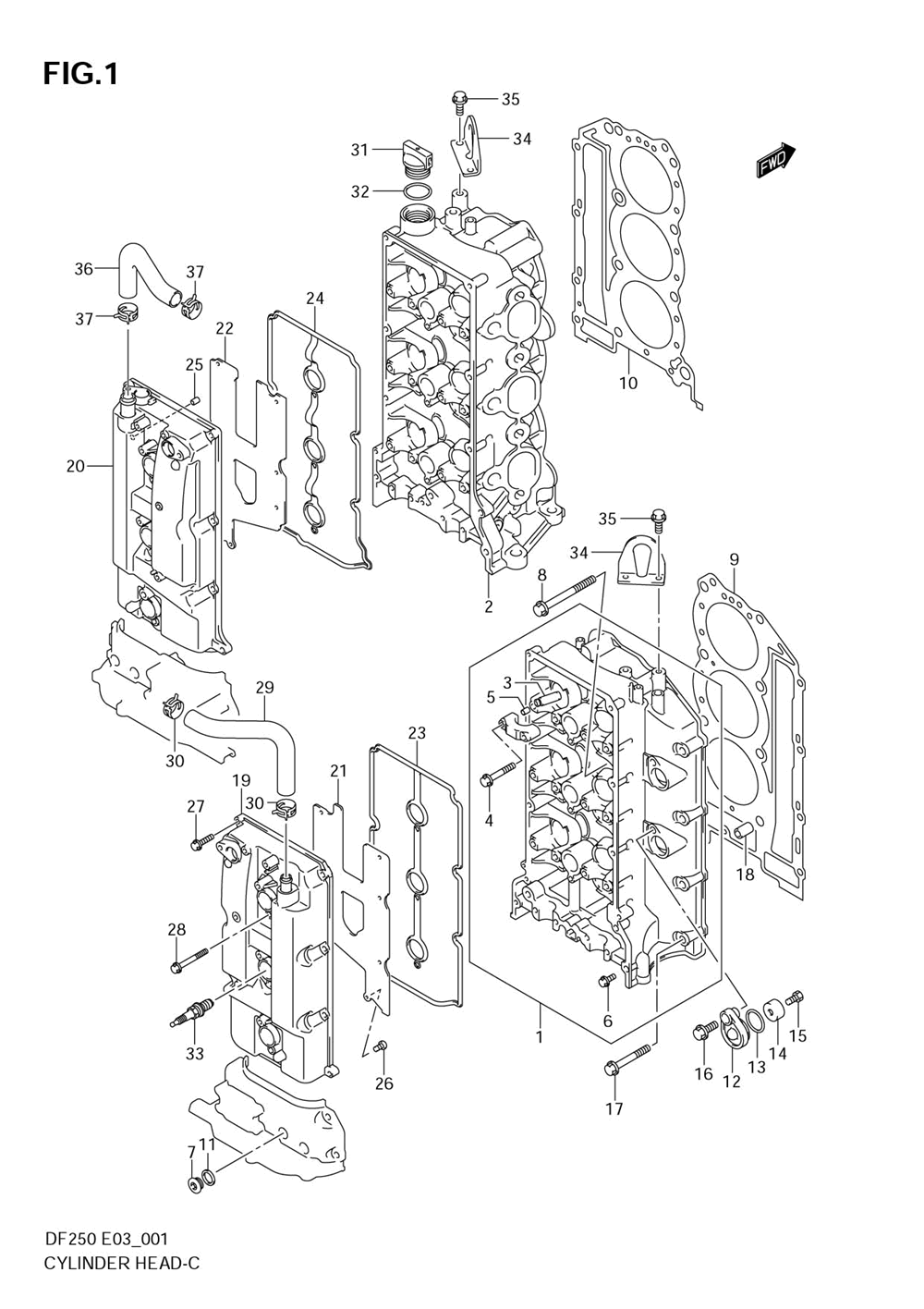

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF200/DF225/DF250
Suzuki Marine
#oem кодцена
1-1
11101-93J01
Head Assy, Cylin ()
1-2
11101-93J10
Head Assy, Cylin (model:08)
1-3
11101-98J00
Head Assy, Cylin (df250s)
2-1
11103-93J02
Head Assy, Cylin ()
2-2
11103-93J11
Head Assy, Cylin (model:08)
2-3
11103-98J00
Head Assy, Cylin (df250s)
3
11115-93J00-001
Guide, Valve Os ()
4
11128-90J00
Bolt, Camshaft H ()
5
09206-08001
Pin ()
6
01550-06207
Болт
7
11116-93J01
Plug ()
8
11119-93J00
Bolt Comp, Cylin (except Df250s)
9-1
11141-93J03
Gasket, Cylinder ()
9-2
11141-98J00
Gasket, Cylinder (df250s)
10-1
11142-93J03
Gasket, Cyl Head ()
10-2
11142-98J00
Gasket, Cylinder (df250s)
11
09168-16009
Gasket ()
12
11261-93J00
Cover, Protction ()
13
09280-22019
O Ring ()
14
55321-87J00
Anode, Protectio ()
15-1
09128-06021
Bolt (6x14) ()
15-2
09103-06281
Bolt (6x14) (model:06~08)
16
01550-08207
..bolt, Lower ()
17-1
01550-08607
Bolt, Throttle Body ()
18
09206-14004
Pin ()
19
11170-93J01
Cover, Cylinder ()
20-1
11180-93JV0
Cover Comp, Cyli (df200->11180-93jv0->11180-98j00)
20-2
11180-93J20
Cover Comp, Cyli (df250->11180-93jv1)
20-3
11180-93J02
Cover, Cylinder (df200/225df200t:421366~df200z:421071~df225tdf225z)
20-4
11180-93J22
Cover, Cylinder (df250df250t:421903~df250z:421256~df250s)
21
11173-93J00
Plate, Breather ()
22
11183-93J00
Plate, Breather ()
23
11179-93J00
Gasket, Cyl Head ()
24
11189-93J00
Gasket, Cyl Head ()
26
02112-0612A
Винт
27
01547-06257
Болт
28
01547-06507
Болт
29
11174-93J00
Hose, Breather ()
30
09401-18410
Clip ()
31
11382-93J00
Cap, Oil Filler ()
32
09280-26006
O Ring (d:3.1, Id:26.4) ()
33
09482-00427
Spark Plug Bkr6 ()
34
11291-93J00
Hook, Engine ()
36
11184-93J00
Hose, Breather P (df200t:421366~df200z:421071~df225tdf225zdf250t:421903~df250z:421256~df250s)
10-1
11142-93J10
Gasket, Cylinder ()
20-2
11180-93JV1
Cover Comp, Cyli (df250->11180-93jv1)
