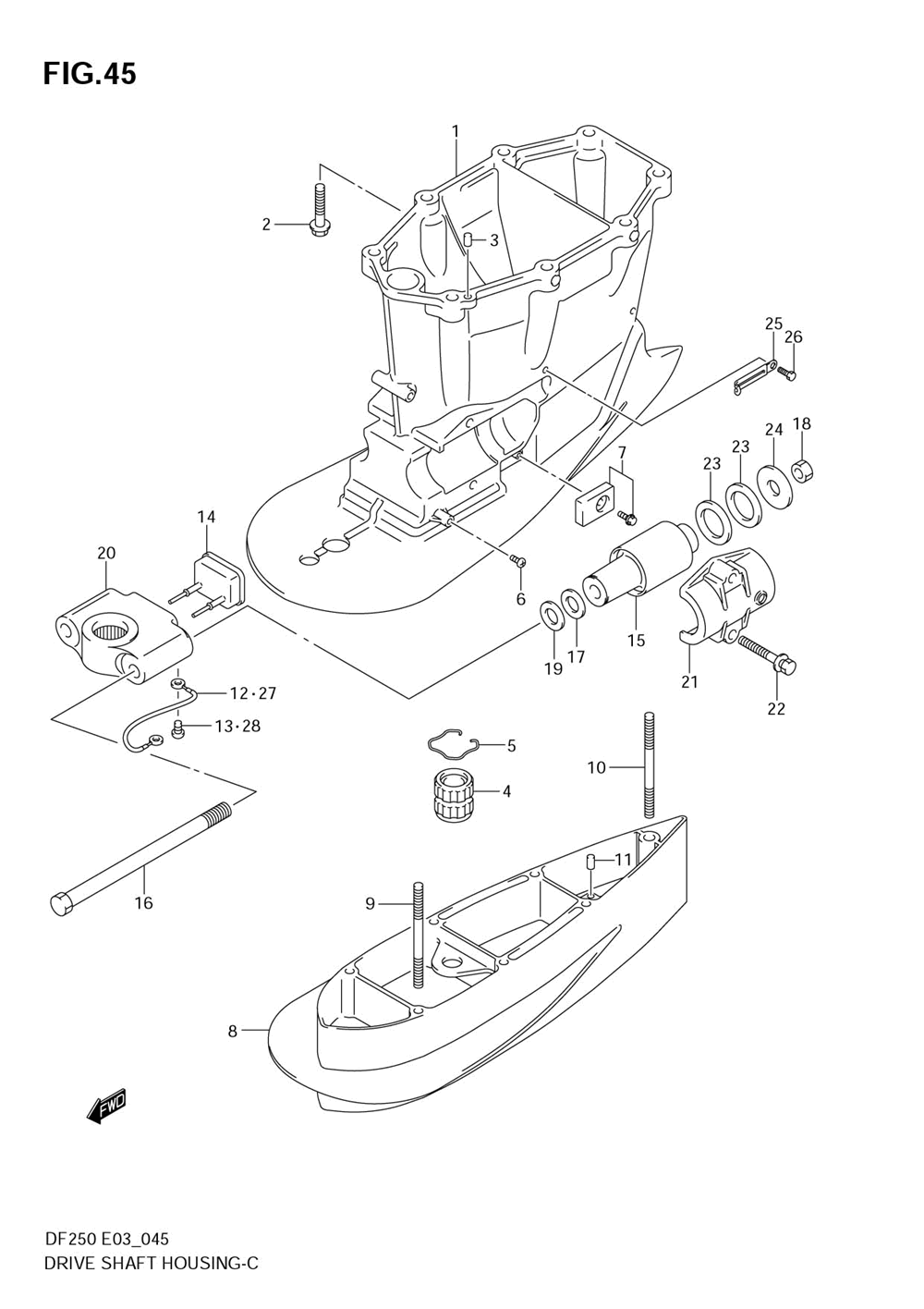

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

1-1

52111-93J03-0EP

Housing, Drive S ()

1-3

52111-93J11-0EP

Housing, Drive S (df200t:680188~df225t:680175~df250t:680339~df200z:680026~df225z:680048~df250z:680144~)

Bolt, Drive Shaf ()

Pin ()

Bush, Drive Shaf ()

Ring, Drive Shaft Bush Snap ()

09125-06063

Screw (6x10) ()

55320-95311

Zinc Set, Protec ()

52131-93J00-0EP

Case, Extension( (type:xx)

09108-10115

Bolt, Stud (type:xx)

09108-12013

Bolt, Extension (type:xx)

36894-87D00

Lead, Clamp To S (df200t:~421994df200z:~421177df225t:~421922df225z:~421223df250t:~422502df250z:~421436)

Mount, Lower Thr ()

Mount Comp, L0we ()

Bolt, Upper Moun ()

Washer, Lower Mo ()

Nut, Upper Mount ()

Bracket, Lower M ()

Cover, Lower Mou ()

Bolt, Oil Pan No ()

Stopper, Lower T (<-54165-87d00)

09160-14066

Washer, Rev Stop ()

29404-93J10

Clamp (df200t:510092~df225t:510027~df250t:510237~df200z:510017~df225z:510003~df250z:510048~)

26-1

09100-06131

.bolt (6x12) (df200t:510092~df225t:510027~df250t:510237~df200z:510017~df225z:510003~df250z:510048~)

26-2

29103-93J00

Bolt (model:06~08)
