Drive shaft housing (df250s Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF200/DF225/DF250

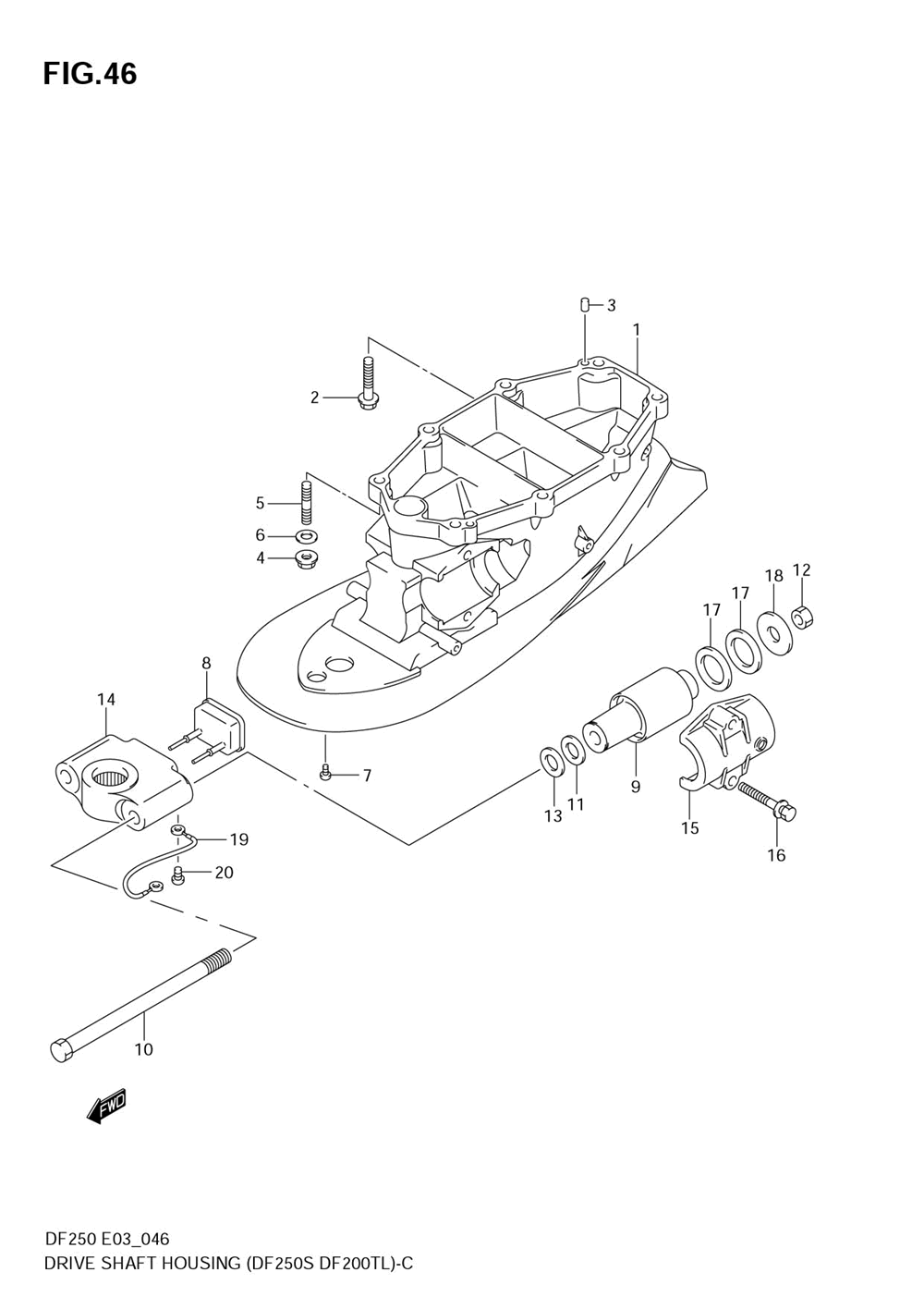

Drive shaft housing (df250s
Drive shaft housing (df250s

Drive shaft housing (df250s

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

Housing, Drive S ()

Bolt, Drive Shaf ()

Pin ()

Гайка

Bolt, Drive Shaft Hsg Stud ()

09160-10141

Washer (10.5x19x2) ()

09125-06063

Screw (6x10) ()

8-1

54151-93J00

Mount, Lower Thr (df200tl)

8-2

54150-98J00

Mount, Lower Thr (df250s)

9-1

54160-93J01

Mount Comp, L0we (df200tl)

9-2

54160-98J00

Mount, Lower (df250s)

Bolt, Upper Moun ()

Washer, Lower Mo ()

Nut, Upper Mount ()

Bracket, Lower M ()

Cover, Lower Mou ()

Bolt, Oil Pan No ()

Stopper, Lower T ()

Washer, Rev Stop ()

Lead, Clamp To S ()
