Капот (df200) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200/DF225/DF250 (2008)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF200/DF225/DF250

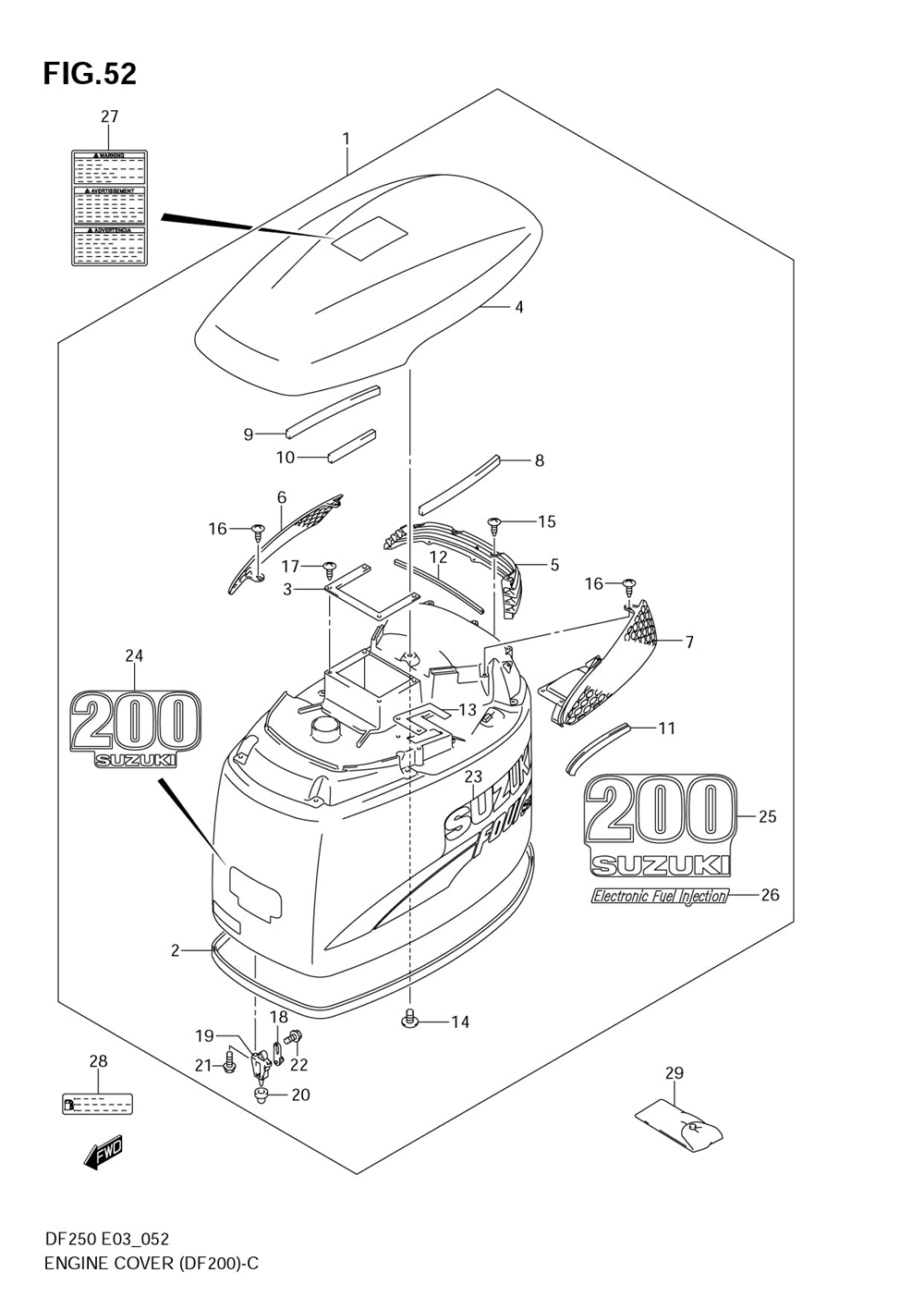

Капот (df200)
Капот (df200)

Капот (df200)

Suzuki Marine DF200/DF225/DF250

oem код

название

цена

1-1

61400-93Y68-0EP

Cover Set, Engin ()

61112-93J10

Rubber, Engine C (<-61112-93j00)

61416-93J00

Guard, Air Intak ()

4-1

61431-93J02-0EP

Handle, Tilt Up( (->61431-93j01-0epused With03542-05163(8pcs)09160-05048(8pcs) Washer)

4-3

61431-93J03-0EP

Handle, Tilt Up( (model:07~08)

Louver, Tilt Up ()

Cover, Air Intak ()

Cover, Air Intak ()

Tape, Tilt Up Ha ()

Tape, Tilt Up Ha (->61438-93j00)

61439-93J20

Seal, Tilt Up Ha ()

61439-93J40

Seal, Tilt Up Ha ()

61476-93J00

Seal, Air Vent ()

14-1

02142-0612A

Винт

14-2

03542-05169

Screw (df200t:680070~df200z:680012~)

Fastener Comp ()

Bracket, Fastene ()

Cushion ()

.bolt, Eng Cov Fastener ()

01550-06127

Болт

23-1

61443-93J03

Stripe, Engine C ()

23-2

Stripe, Engine C ()

Mark, Emblem Fro ()

Mark, Emblem Rea ()

Decal, Efi ()

Label, Engine Co ()

Label, Fuel Lim ()

Tool Set ()
