Suzuki Marine DF200/DF225/DF250

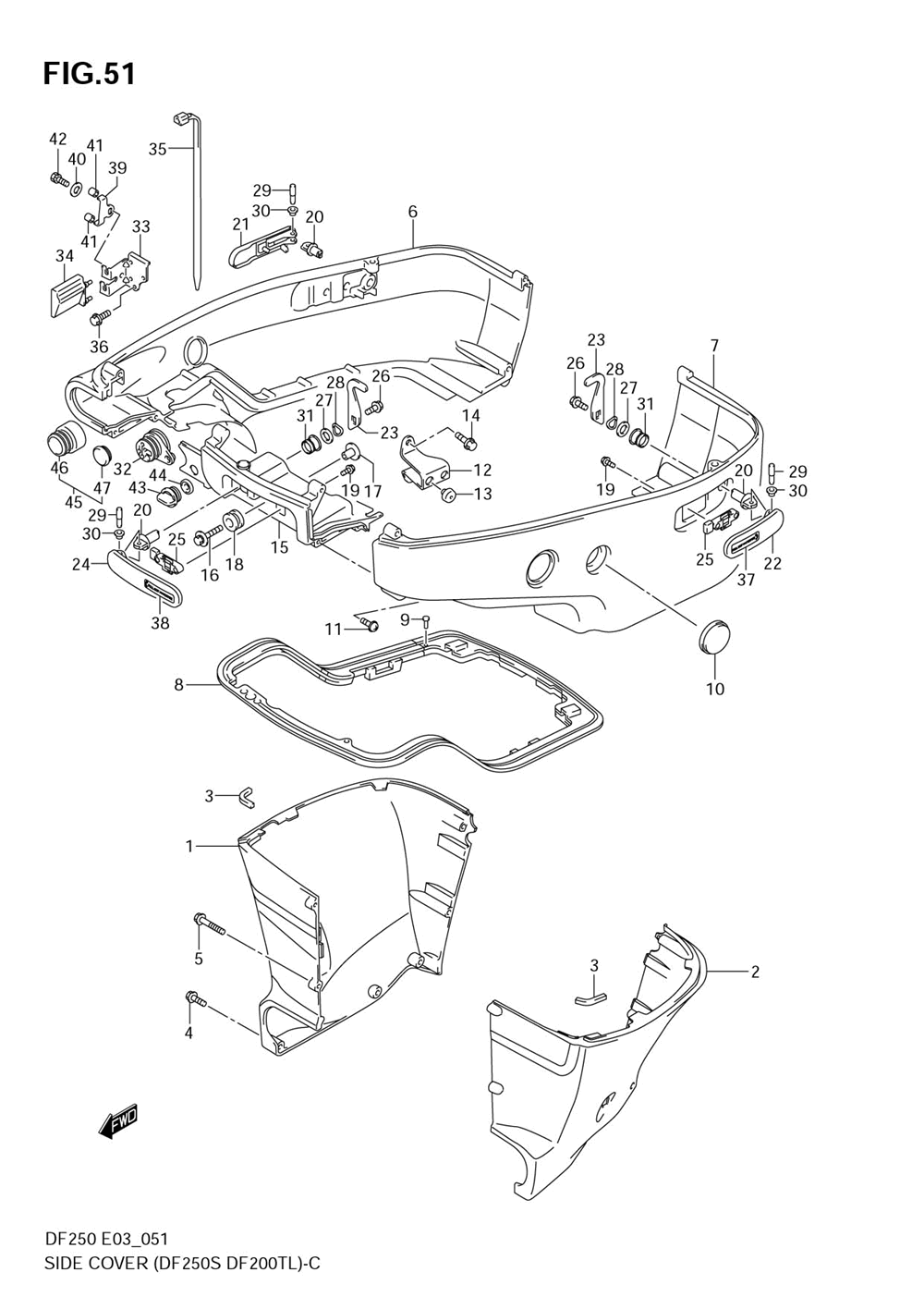

Side cover (df250s

#

oem код

название

цена

1

61131-93J11-0EP

Cover, Oil Pan S ()

Cover, Oil Pan S ()

2

61141-93J11-0EP

Cover, Oil Pan P ()

Cover, Oil Pan P ()

3

Cushion, Oil Pan ()

Cushion, Oil Pan ()

4

Screw, 6x17 ()

Screw, 6x17 ()

5

Винт

Винт

6

61811-93J11-0EP

Cover, Side Stbd ()

Cover, Side Stbd ()

7

61821-93J03-0EP

Cover, Side Port ()

Cover, Side Port ()

8

Seal, Side Cover ()

Seal, Side Cover ()

9

09409-05302-5PK

Pin ()

Pin ()

10

Plug, Side Cover ()

Plug, Side Cover ()

12

Holder, Side Cov ()

Holder, Side Cov ()

13

Cushion, Side Co ()

Cushion, Side Co ()

14

..bolt, Lower ()

..bolt, Lower ()

15

61831-93J11-0EP

Panel, Front ()

Panel, Front ()

16

Bolt (8x40) ()

Bolt (8x40) ()

17

Шайба

Шайба

18

Cushion ()

Cushion ()

19

Болт

Болт

20

Shaft, Engine Co ()

Shaft, Engine Co ()

21

61633-93J00-0EP

Lever, Hook Rear ()

Lever, Hook Rear ()

22

61634-93J00-0EP

Lever, Hook Rear ()

Lever, Hook Rear ()

23-1

Hook, Engine Cov ()

Hook, Engine Cov ()

23-2

Hook, Engine Rea ()

Hook, Engine Rea ()

24

61645-93J00-0EP

Lever, Hook Fron ()

Lever, Hook Fron ()

25

Latch, Hook Leve ()

Latch, Hook Leve ()

26

Bolt (6x12) ()

Bolt (6x12) ()

27

Washer (13.2x25x1.0) ()

Washer (13.2x25x1.0) ()

28

Washer, Wave ()

Washer, Wave ()

29

Pin,hook Lever, ()

Pin,hook Lever, ()

30

Bush, Hook Lever ()

Bush, Hook Lever ()

31

Bush ()

Bush ()

32

Grommet, R/con C ()

Grommet, R/con C ()

33

Holder, Remocon ()

Holder, Remocon ()

34

Protector, R/con ()

Protector, R/con ()

35

.clamp ()

.clamp ()

36

.bolt, Remocon Cable Holder ()

.bolt, Remocon Cable Holder ()

37

Label, Hook Leve ()

Label, Hook Leve ()

38

Label, Hook Leve ()

Label, Hook Leve ()

39

Stopper, Remocon ()

Stopper, Remocon ()

40

.washer, Throttle Lever ()

.washer, Throttle Lever ()

41

09352-70103-600

Cushion, R/con Cable Stopper (l:600->14)

Cushion, R/con Cable Stopper (l:600->14)

42

Болт

Болт

43

Plug, Water ()

Plug, Water ()

44

Gasket, Water Pl ()

Gasket, Water Pl ()

45

Rigging Kit Ada (opt)

Rigging Kit Ada (opt)

46

Adapter, Hose (opt)

Adapter, Hose (opt)

47

Plug (opt)

Plug (opt)
